DELABIE: 510162, Drop-Down Rail, 304 Stainless Steel, 650mm, Ø 32mm
About this product

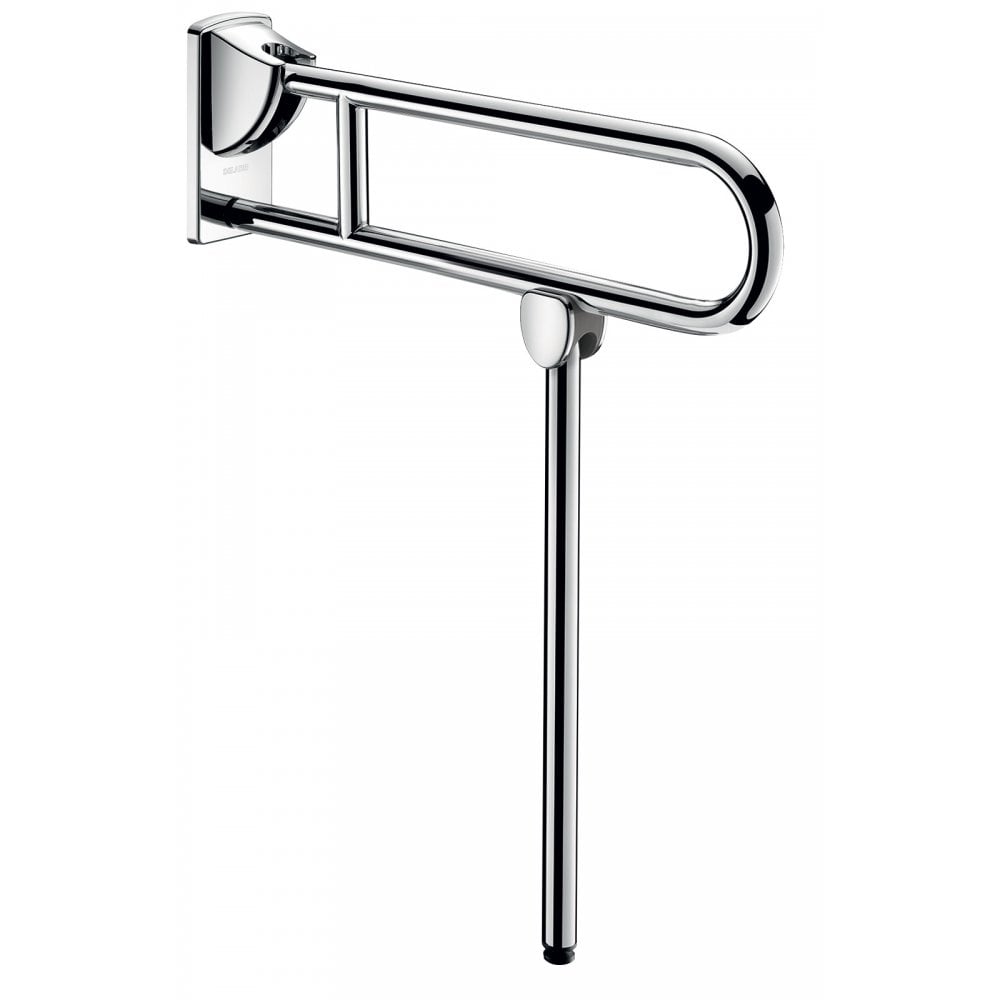

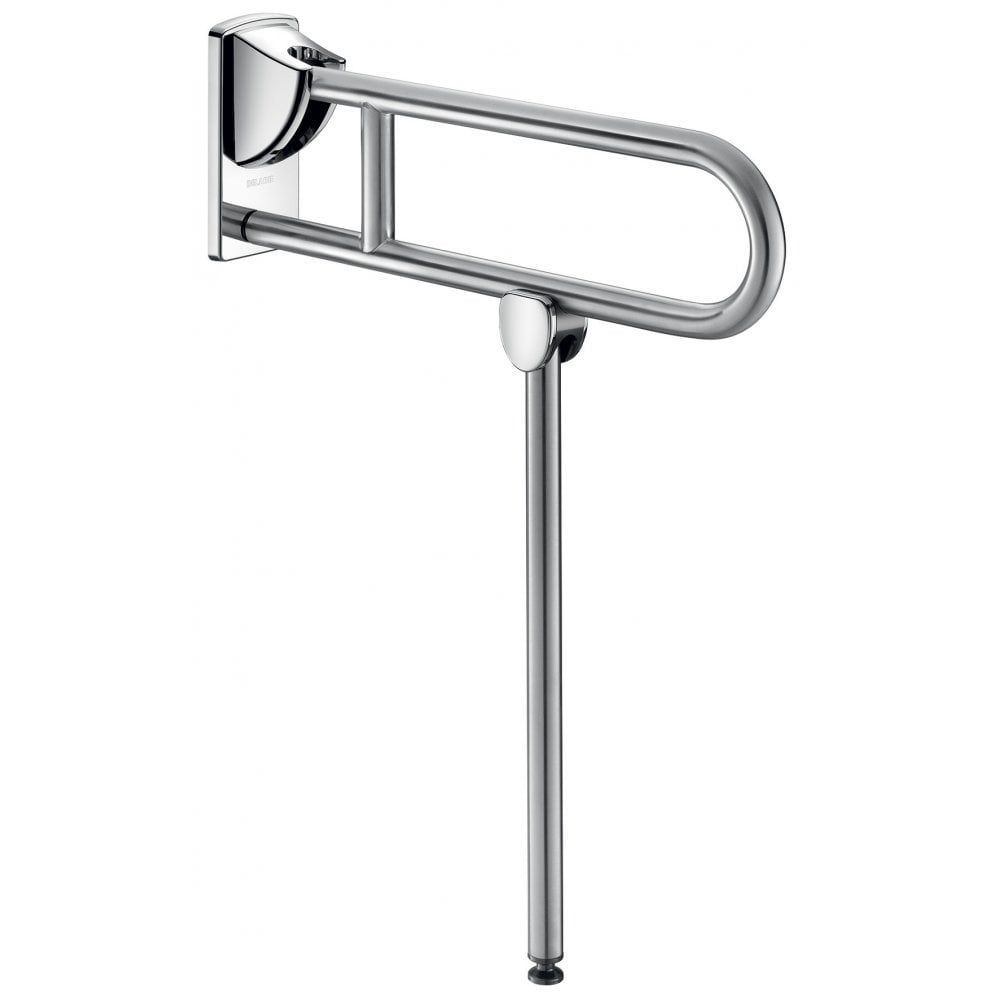

The DELABIE drop-down rail with leg is constructed from bacteriostatic 304 grade stainless steel, ensuring longevity and corrosion/rust resistance. It is available in both a brushed satin finish as well as a polished chrome. Washrooms and shower areas are examples of suitable installation areas.
- When the bar is raised, the leg will automatically fold in to not obscure space and allow for more movement.
- The DELABIE drop down rail will descend slowly once in use to help avoid injury.
- Can withstand a substantial 170kg of weight, with over 250kg being tested, thanks to its supportive leg that will reinforce when the wall fixing alone is not enough.
- Easily maintained and cleaned thanks to its uniform non-porous surface.
- Fixings are concealed with a 4mm thick 304 stainless steel cover plate.
- All screws and plugs required for installation to a concrete wall are included.
For more information please refer to the spec sheet provided below.
10 Year Guarantee
CE Marked
-
Download
- Spec Sheet - 510162 - Grab Rail
Specifications
Specifications
Material | 304 Grade Stainless Steel |
---|---|
Finish Options | UltraSatin Brushed Satin, UltraPolish Polished Chrome |
User Weight Capacity | 170kg (250kg Tested) |

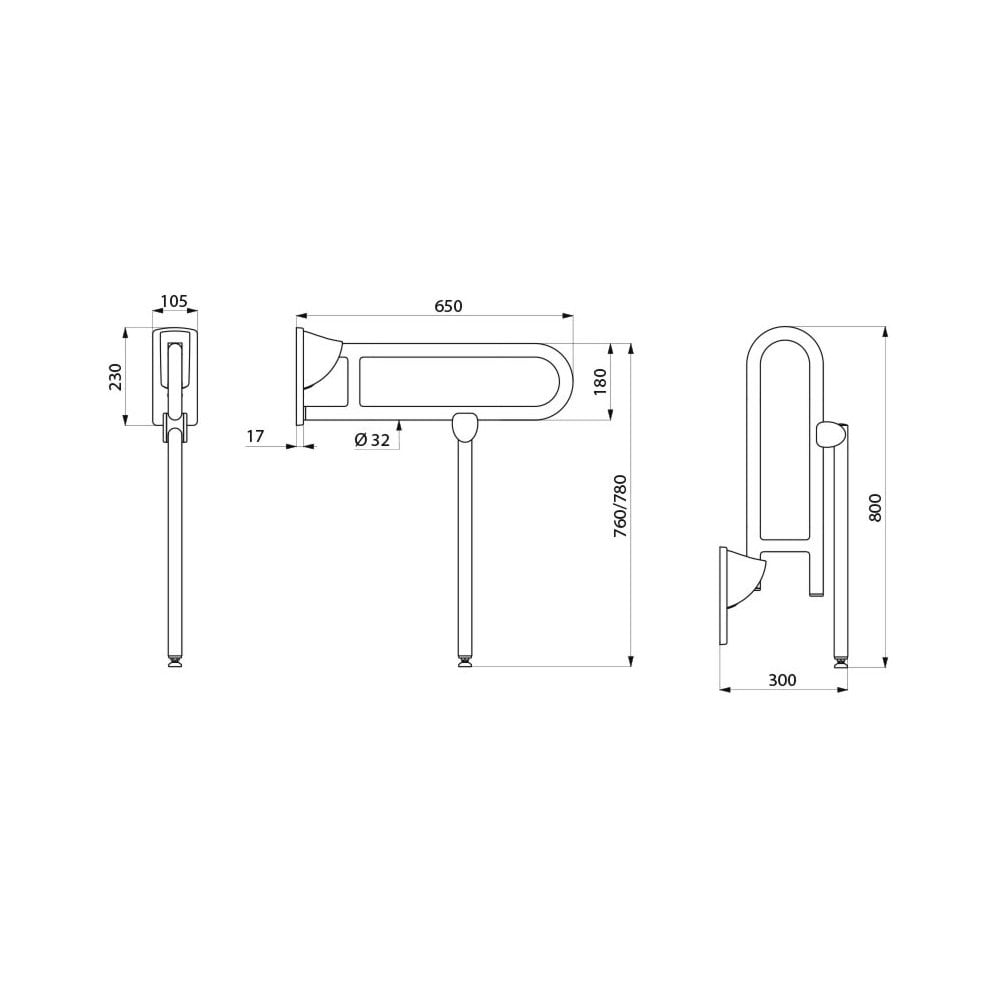

Dimensions | 650L x 800H x 105W mm |
CE Certification | Yes |
DELABIE Drop-Down Rail (Stainless Steel) features
