Smartflow: M04ACS Compact Hand Dryer, 1.1 kW, 39 Seconds Dry Time, Energy Efficient
About this product
The Smartflow® hand dryer M04 is one of the most compact on the market, designed for locations that have limited space but still require an energy-efficient solution.
- Dry time: 39 seconds.
- Recommended for medium traffic areas (less than 300 uses per day).
- Cost-effective: 419 dries possible per £1 spent on electricity, compared to 143 dries per £1 spent on paper towels.
- Rated power: 1.1 kW with 11.92 Wh per dry.
- Compact design makes it ideal for venues with space restrictions.
- Universal brush motor operates at a speed of 15,000 RPM.
- Fire-resistant plastic with a PP-V0 helical fan wheel.
- Features a fully adjustable infrared sensor with a 5-25cm range.

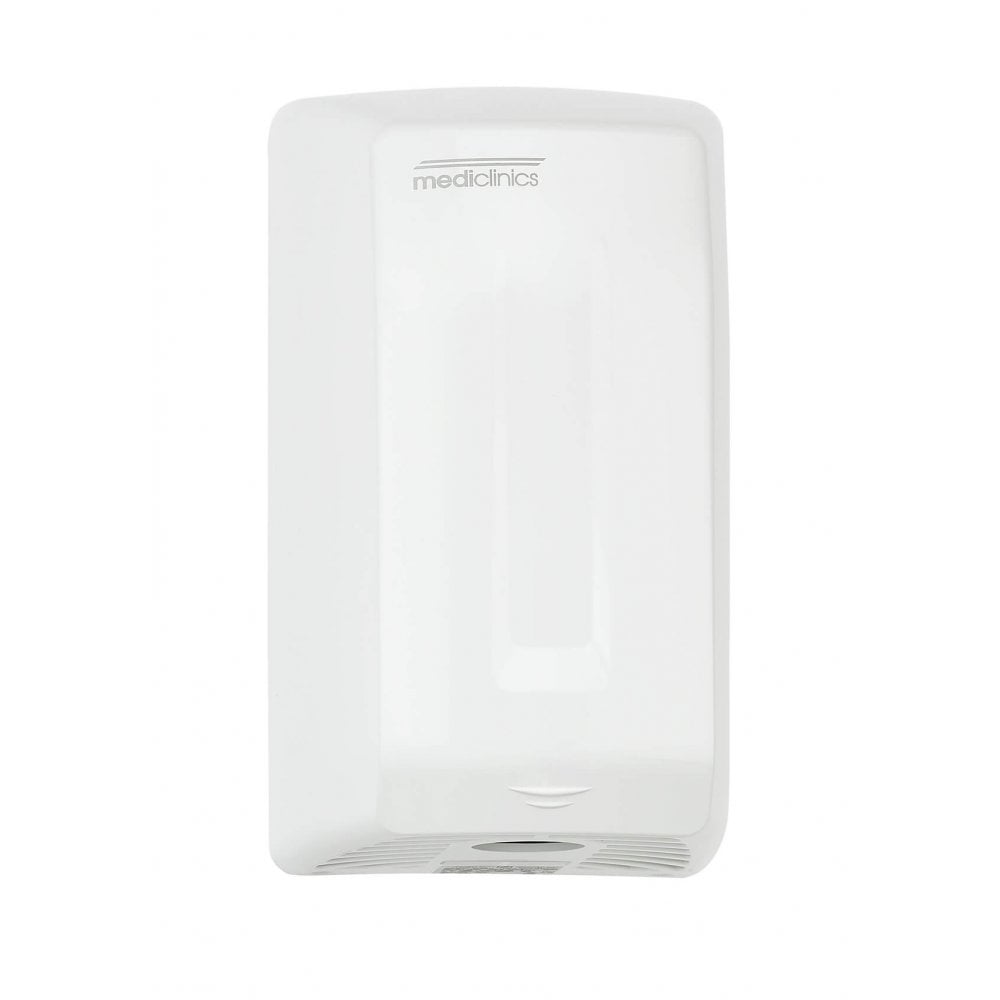

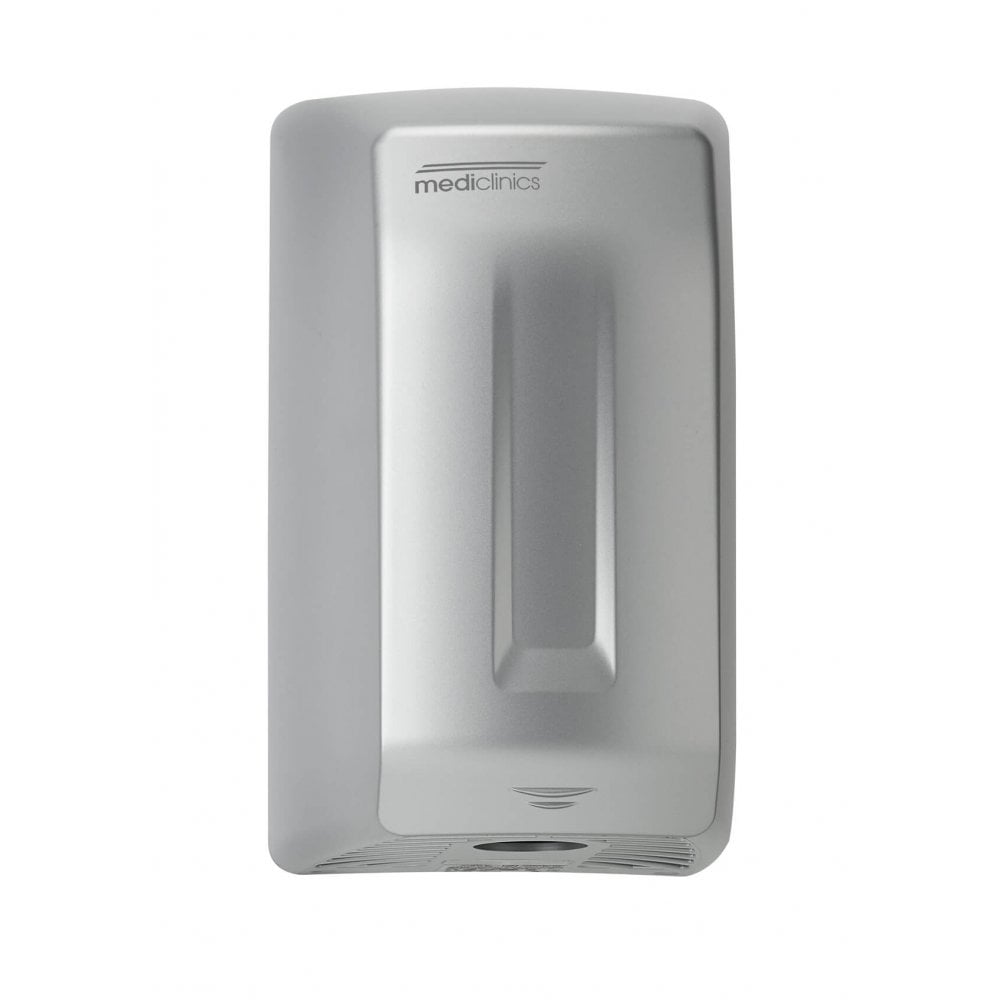

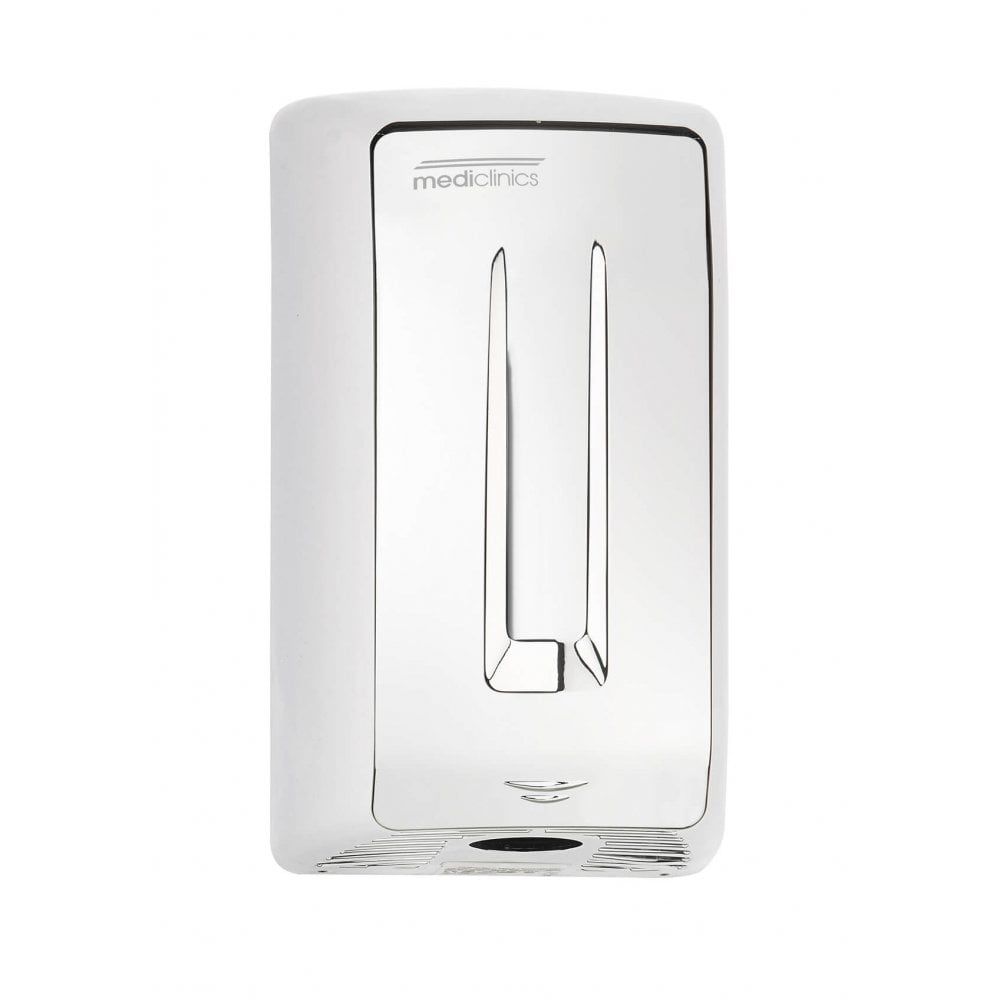

Available in three finishes: White, Bright and Satin, all equipped with an ABS resistant cover. Designed for installation in medium-sized restaurants, cafeterias, and small to medium-sized offices, the Smartflow hand dryer prioritises safety with thermal cut-off features in both the motor and heating element. Compliance with RIBA Architect classification N13-472 for hand dryers.
Specifications
Guarantee
Electrical
Performance
Construction
Accreditations
Dimensions_and_weight
Specifications
Guarantee
Type | Parts and Labour |
---|---|
As standard | 2 Years |
Extended enhanced available | No |
Electrical
Isolation | Class II |
---|---|
Rated power | 1.1 kW |
Energy per dry | 11.92 Wh |
Ingress protection | IP23 |
Heater element power | 0.95 kW |
Electrical supply voltage | 220 - 240V |
Electrical supply frequency | 50 / 60 Hz |
Performance
Dry time | 36 - 40 Seconds |
---|---|
Air speed | 62 MPH |
Low noise | Yes |
Motor type | Brushed Motor |
Motor speed | 15,000 RPM |
Adjustable settings | No |
Expected motor life | 2,000 Hours |
Recommended daily uses | 101 - 300 (Medium Traffic) |
Construction
Hepa filter | No |
---|---|
Cover material | ABS |
Notable extras | - |
Finishes available | White |
Antibacterial additives | No |
Accreditations
Certificates | CE. ROHS, EMC, GS Approved |
---|
Dimensions_and_weight
Depth | 138 mm |
---|---|
Width | 147 mm |
Height | 259 mm |
Net weight | 1.2 Kg |
Packed weight | - |
Packaging depth | - |
Packaging width | - |
Packaging height | - |
Smartflow Hand Dryer (Compact, Infrared Activated) features
