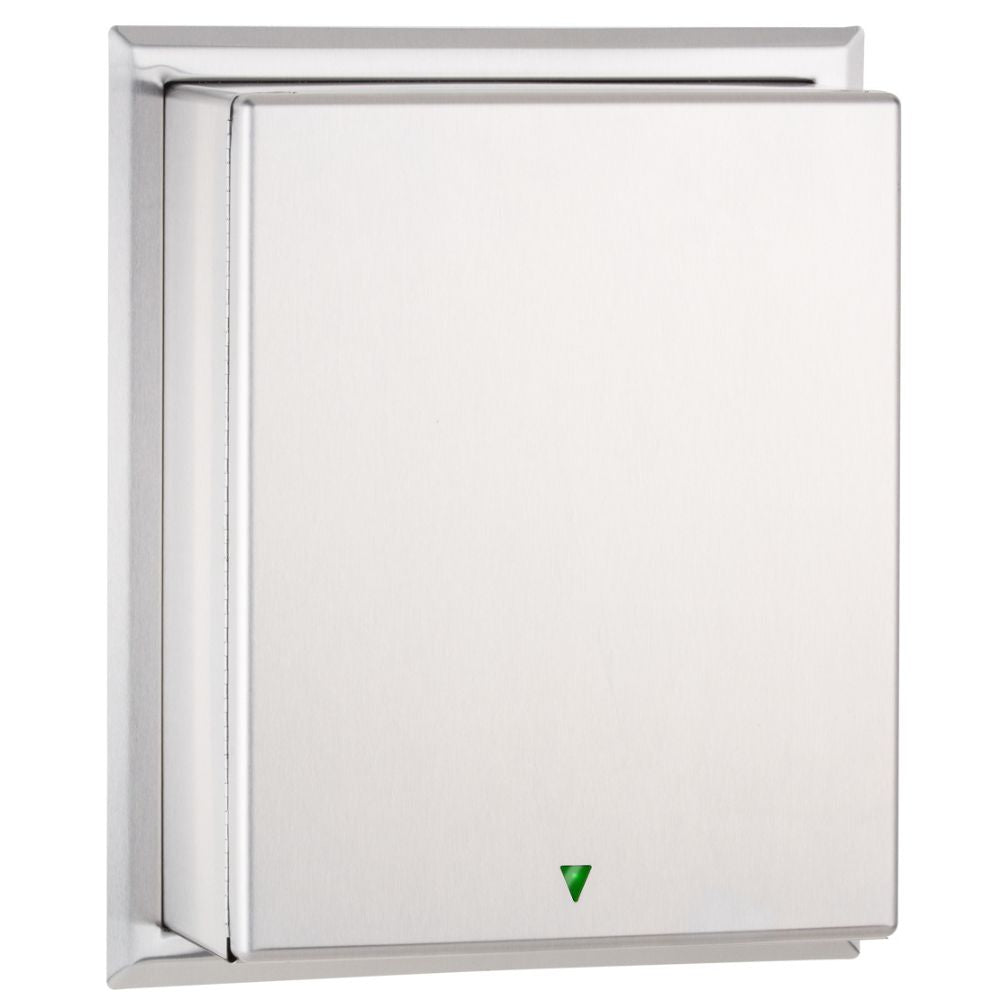

Bobrick: B-29744, Automatic Universal Roll Paper Towel Dispenser, Semi-recessed, 304 Stainless Steel
About this product
Introducing the Bobrick B-29744 Automatic Roll Towel Semi-recessed Dispenser Cabinet, a premium washroom accessory engineered for durability and efficiency. Crafted from high-quality 18-8, Type-304 heavy-gauge stainless steel, this cabinet boasts an all-welded construction ensuring robust performance and longevity. The sleek satin finish on all exposed surfaces adds a touch of elegance, making it a perfect fit for any modern washroom.
- Cabinet Construction: Material: 18-8, Type-304 heavy-gauge stainless steel; Finish: Satin finish on all exposed surfaces; Construction: All-welded for maximum strength and durability; Lock: Equipped with a tumbler lock keyed like other Bobrick washroom accessories for added security.
- Door: Material: 18-8, Type-304, 20-gauge (0.9mm) stainless steel; Design: Drawn, one-piece, seamless construction for a sleek appearance; Hinge: Secured to the cabinet with a full-length stainless steel piano hinge for smooth operation.
- Flange & Shell: Material: 18-8, Type-304, 22-gauge (0.8mm) stainless steel; Design: Drawn, one-piece, seamless construction for a sleek appearance.
- Automatic Roll Towel Dispenser: Material: Durable, high-impact resin materials; Compatibility: Accepts universal standard-core, non-perforated rolls 8" (205mm) wide and 8" (205mm) in diameter, up to 800 ft (244 m) long. Can accommodate up to 3-1/2" (90mm) diameter stub roll; Operation: Adjustable electronic sensor dispenses towels when hands are placed under the towel opening; Settings: Towel length can be set to short 254mm (10"), medium 305mm (12"), or long 356mm (14") lengths; Indicators: LED light on the door directs patrons to the dispense area, flashing green when ready to dispense and red if service is needed; Power Requirements: Powered by 4 "D" size alkaline batteries (not included).
-
Download
- Spec Sheet - B-29744 Automatic Paper Towel Roll Semi-Recessed Dispenser (PDF)
- Install Manual - B-29744 Automatic Paper Towel Roll Semi-Recessed Dispenser (PDF)
- CAD Drawing - B-29744 Automatic Paper Towel Roll Semi-Recessed Dispenser (DWG)
- BIM Object - B-29744 Automatic Paper Towel Roll Semi-Recessed Dispenser (RFA)
- Bobrick Catalogue for Healthcare Facilities (PDF)
Specifications
Specifications
Material | Type-304 Stainless Steel |
---|---|
Dispensing Method | Automatic Sensor |
Towel Length Settings | 254mm, 305mm, 356mm |
Power Source | 4 D Alkaline Batteries |
Wall Opening Required | 330 (W) x 405 (H) x 102 min (D) mm |
Bobrick B-29744 Automatic Roll Towel Dispenser features
