Bobrick: B-8226, Sink-Mounted Soap Dispenser, 1L Capacity, 150mm Spout
About this product

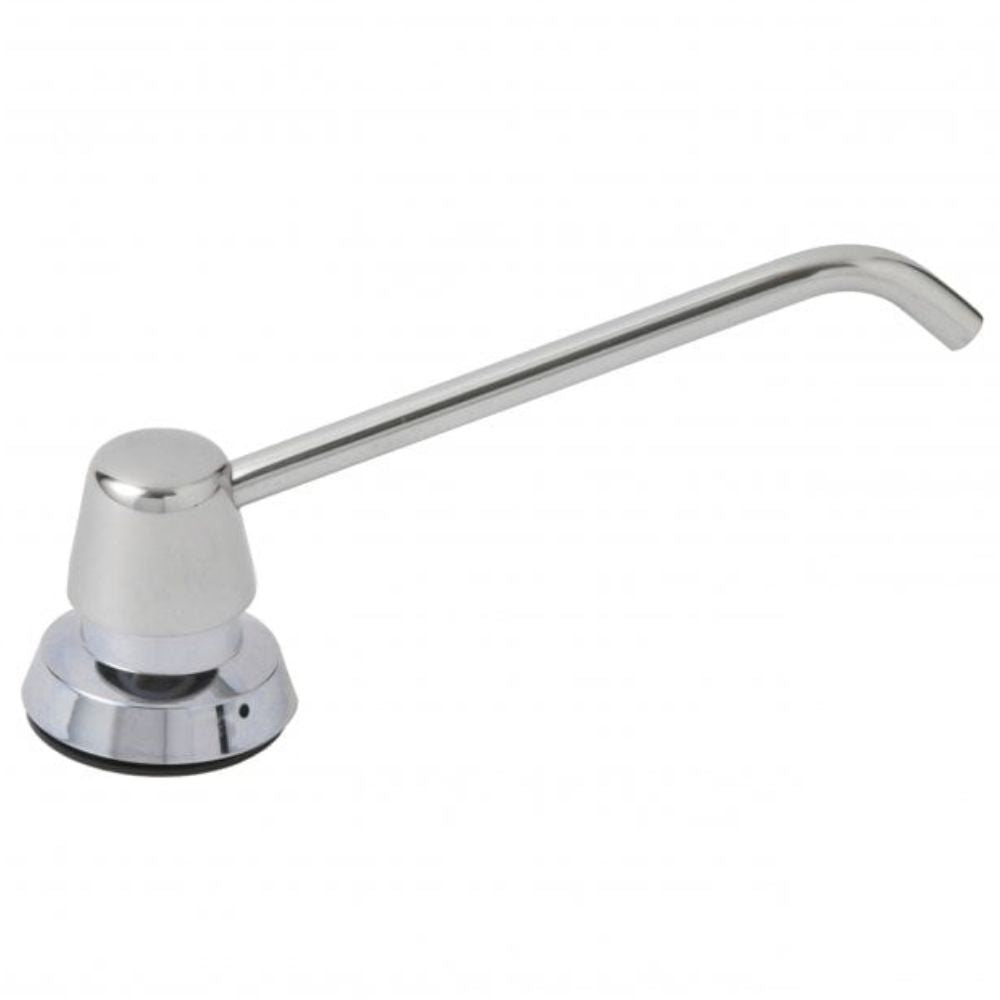

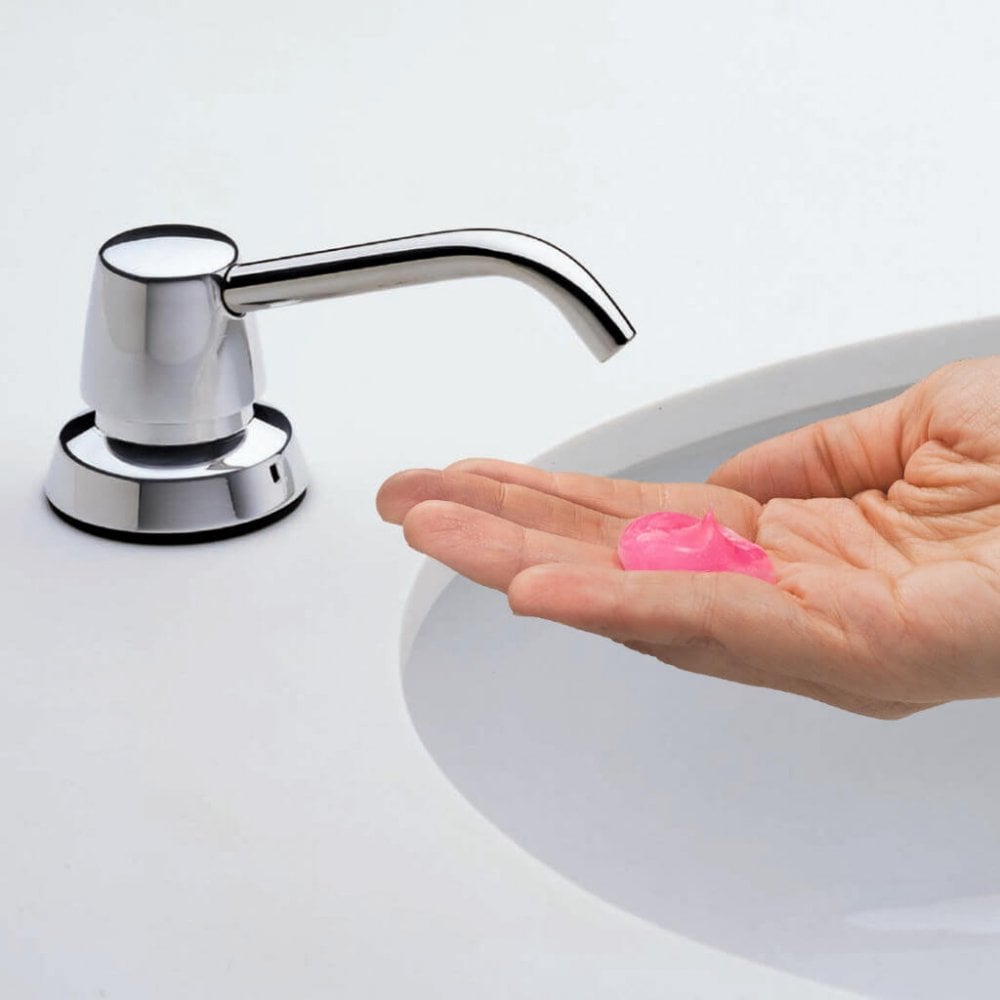

This Bobrick counter or sink-mounted soap dispenser pours 0.85ml of liquid soap when the user presses the piston down. It has high resistance to vandalism, due to its top locking mechanism and the fact that the 150mm spout can turn 360° without harming the system.

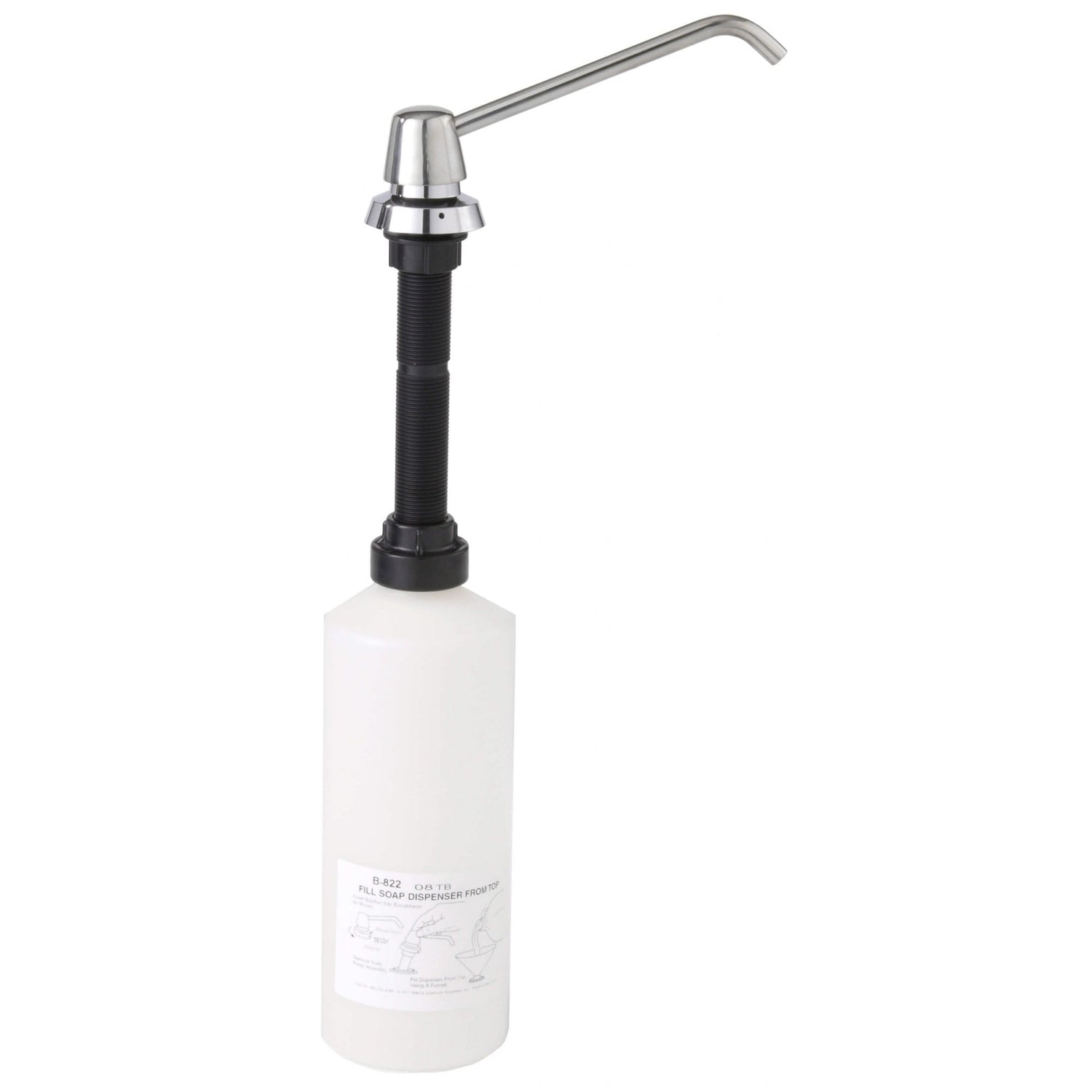

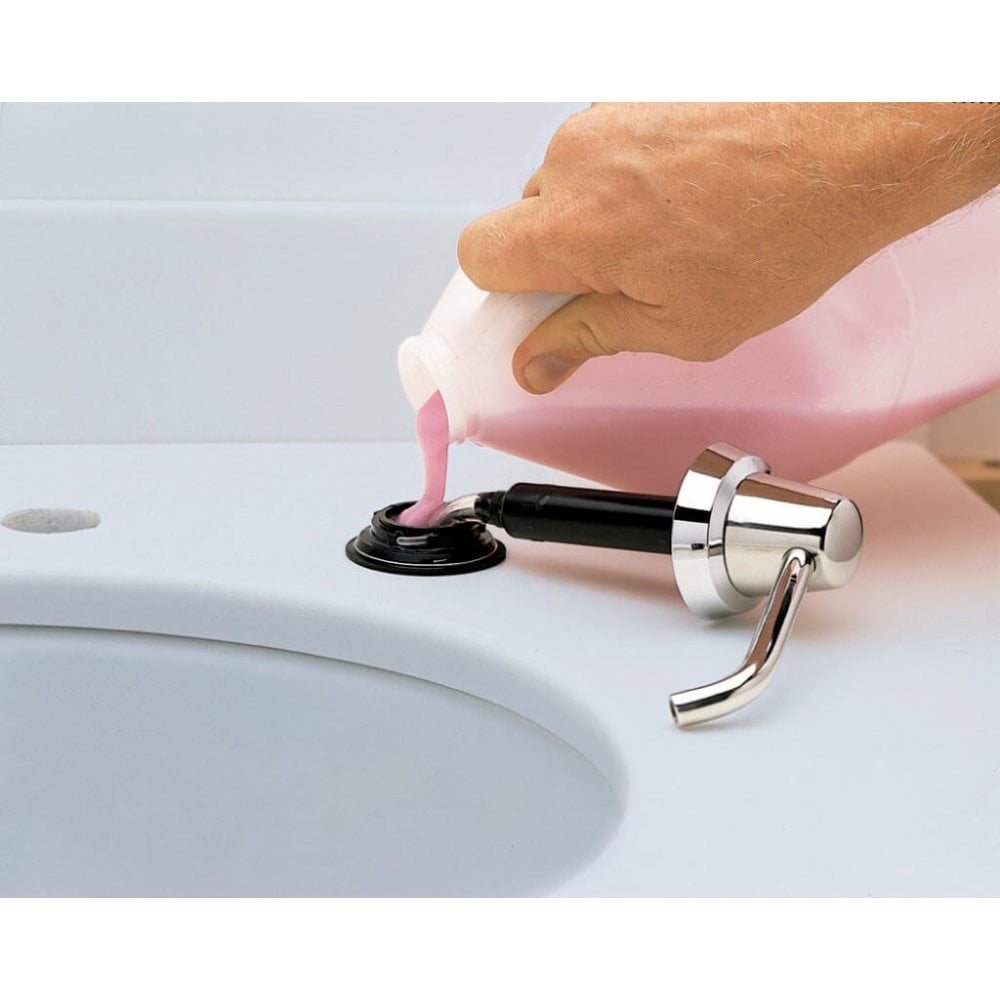

- Refill the translucent polyethylene container easily by removing the top cover with a special key (provided) or insert the soap directly into the 1 litre bottle from the bottom.
- Installation Requirements:
- 25mm hole in the washbasin or adjacent countertop.
- Up to 100mm mounting thickness for the shank.
- 85mm clearance for the reservoir.
- Maintenance: Flush the soap pump assembly with warm water every six months.
- The piston, spout, and top cover are made of 304 stainless steel with a polished surface, maintaining a clean finish.
- This item can dispense vegetable-oil soaps, lotion soaps, or synthetic detergents. Not suitable for corrosive solutions such as EA-rated antibacterial soaps.
-
Download
- Bobrick Maintenance Tips Stainless Steel (PDF)
- CAD - Bobrick B-8226 1000ml Sink-Mounted Soap Dispenser with 150mm Spout (DWG)
- BIM Object - Bobrick B-8226 1000ml Sink-Mounted Soap Dispenser with 150mm Spout (RFA)
- Technical Sheet - Bobrick B-8226 1000ml Sink-Mounted Soap Dispenser with 150mm Spout (PDF)
- Installation and Maintenance Guide - Bobrick B-8226 1000ml Sink-Mounted Soap Dispenser with 150mm Spout (PDF)
Bobrick B-8226 Soap Dispenser (1L, Sink-Mounted) features
