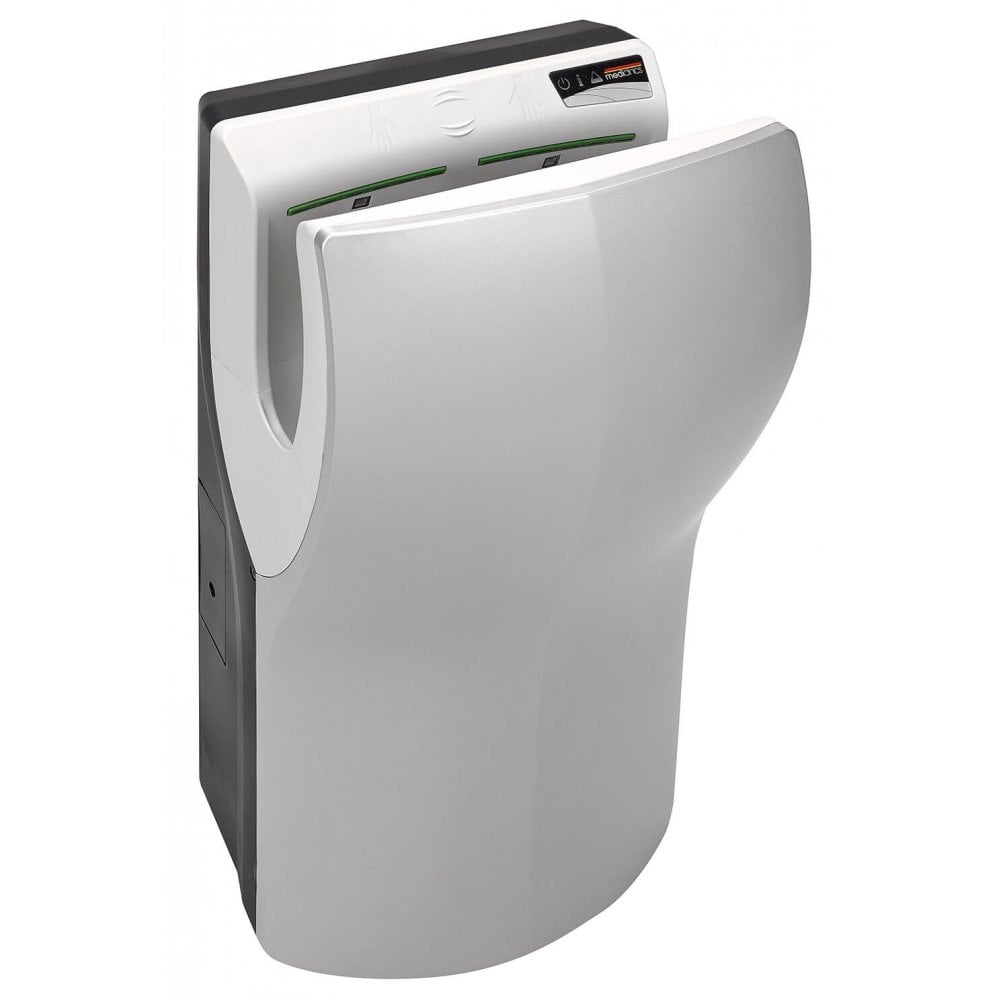

Mediclinics: M14ACS, Dualflow Plus Eco Hand Dryer, Silver, HACCP Certified, Fast Dry, Brushed Motor, 4 Years Guarantee
About this product
The Mediclinics Dualflow® Plus Eco Hand Dryer is an innovative HACCP certified, blade-style hand dryer that combines energy efficiency with fast drying times.
- Rapid drying time: 10 - 15 seconds.
- High daily usage capacity: Recommended for use over 300 times daily.
- Cost-effective: Provides 2857 dries per £1 on electricity versus 143 dries per £1 with paper towels.
- Extended guarantee: 4 years, supported by our commitment to quality.
- Adjustable settings: Customise noise and energy levels for optimal performance.
- Hygienic features: Includes Biocote® antibacterial coating and H13 HEPA filter.
- Unique water collection system: Drip tray for excess water to prevent slips and maintain cleanliness.
This stylish unit is ideal for high-traffic environments such as airports, combining functionality with elegance.
-
Download
- Catalogue Pages - Mediclinics Hand Dryers (PDF)

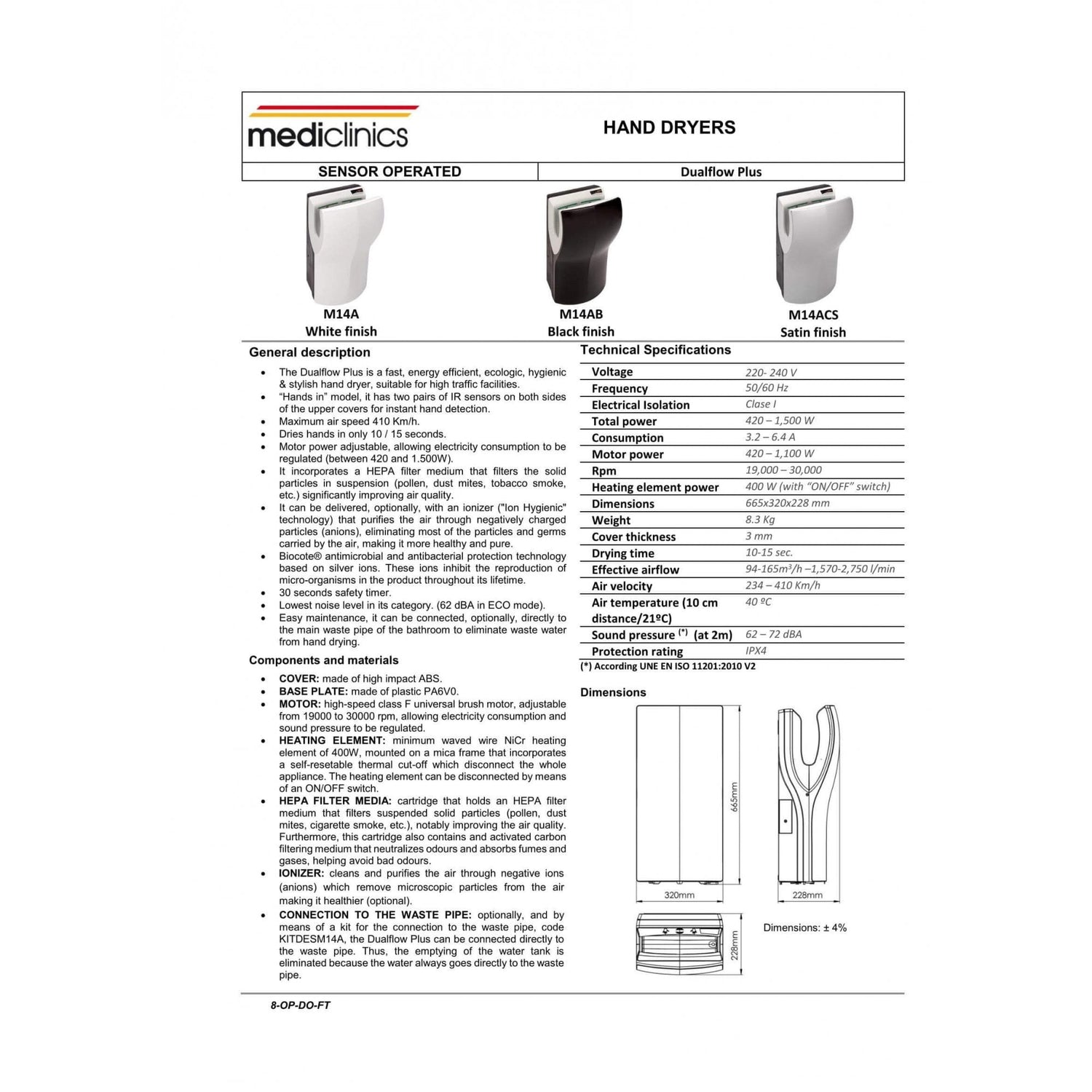

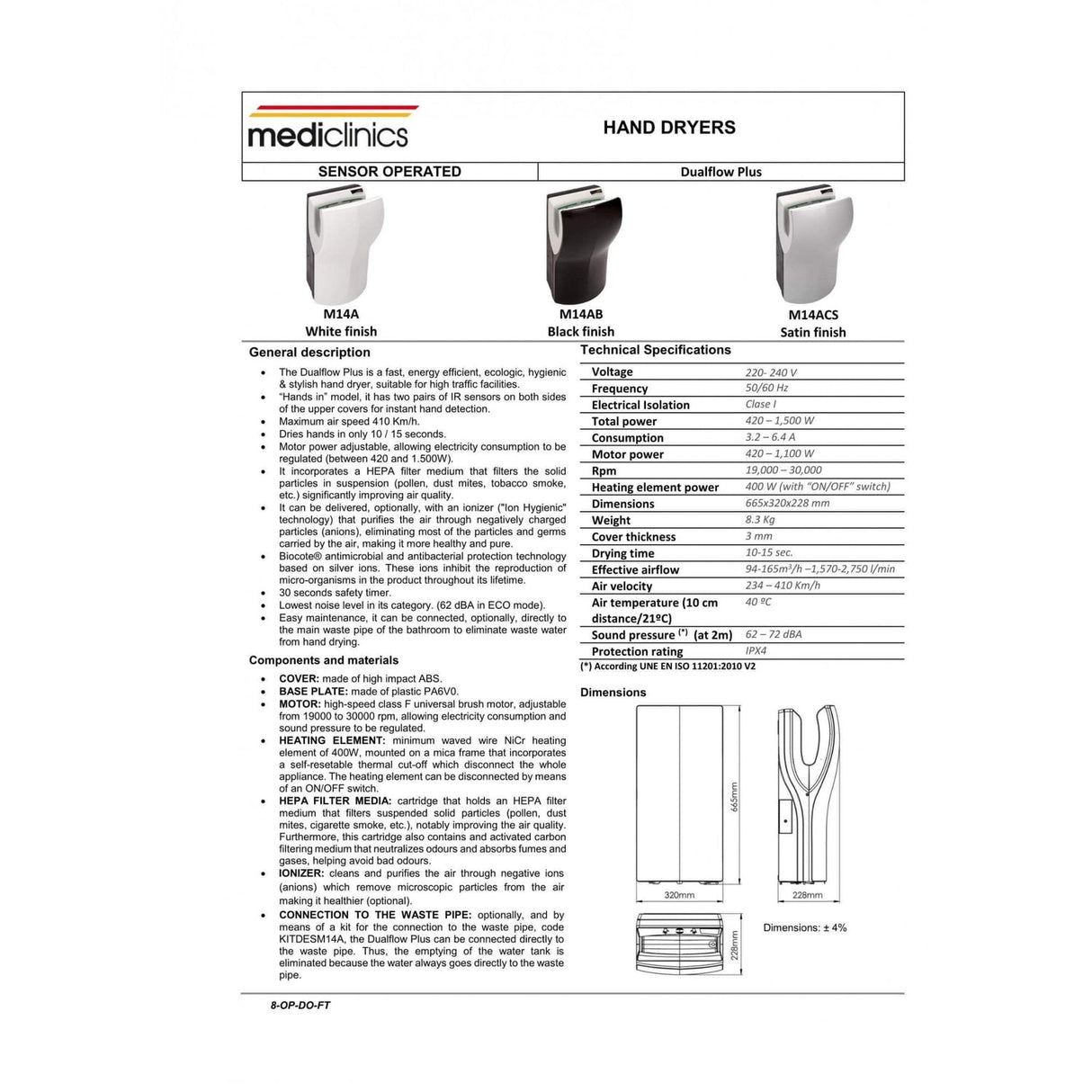

- Spec Sheet / Catalogue Page - Mediclinics Dualflow Plus Eco Hand Dryer M14AXX (PDF)

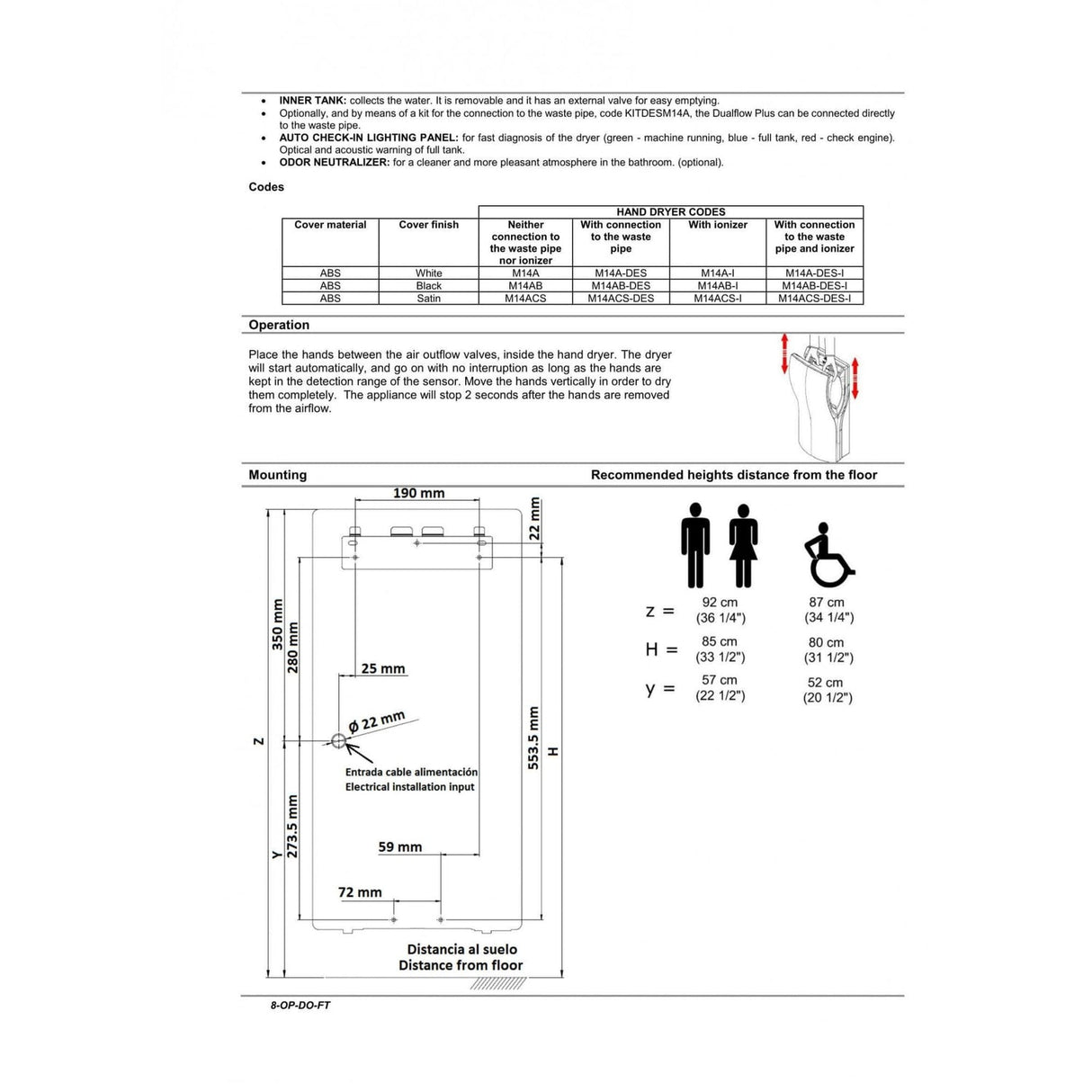

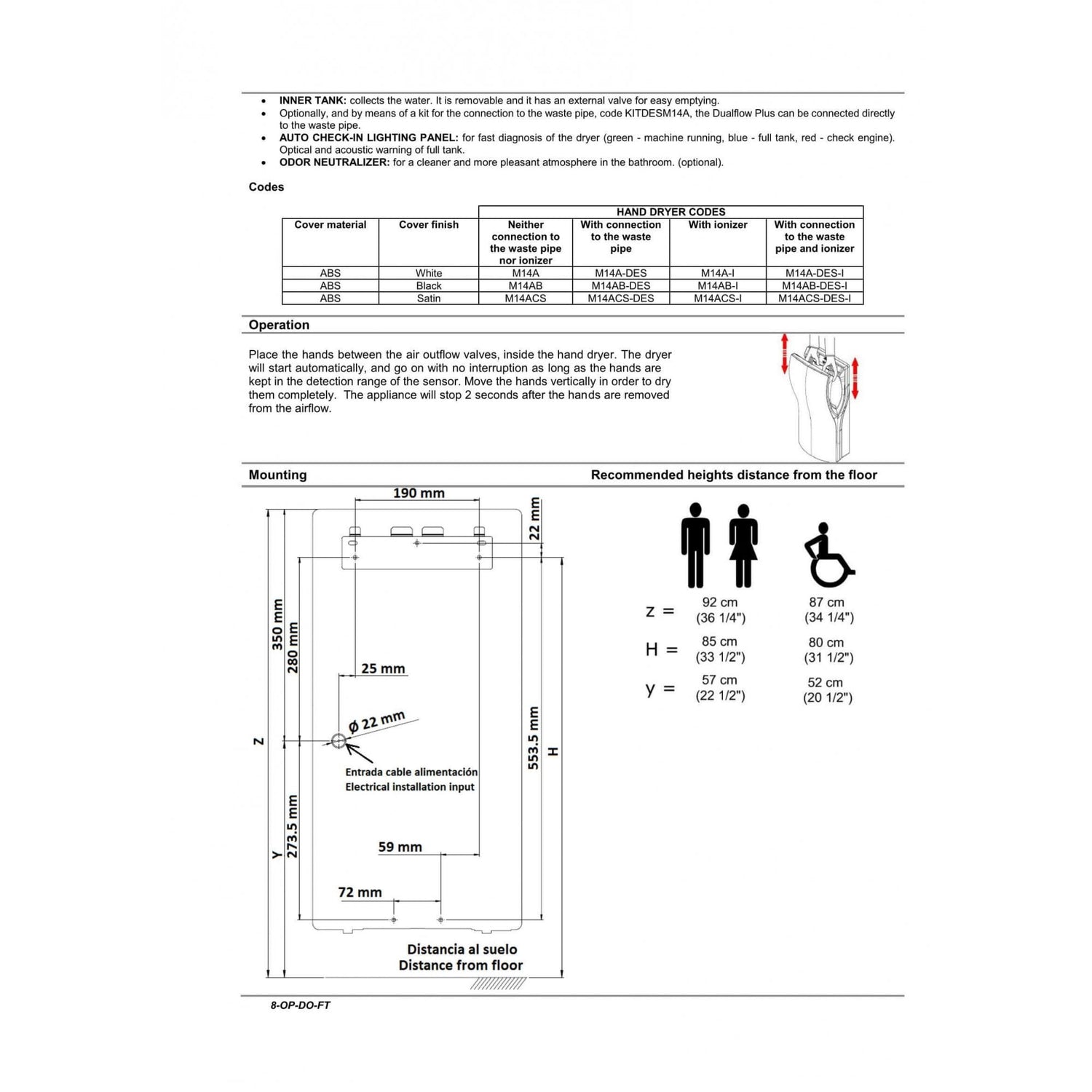

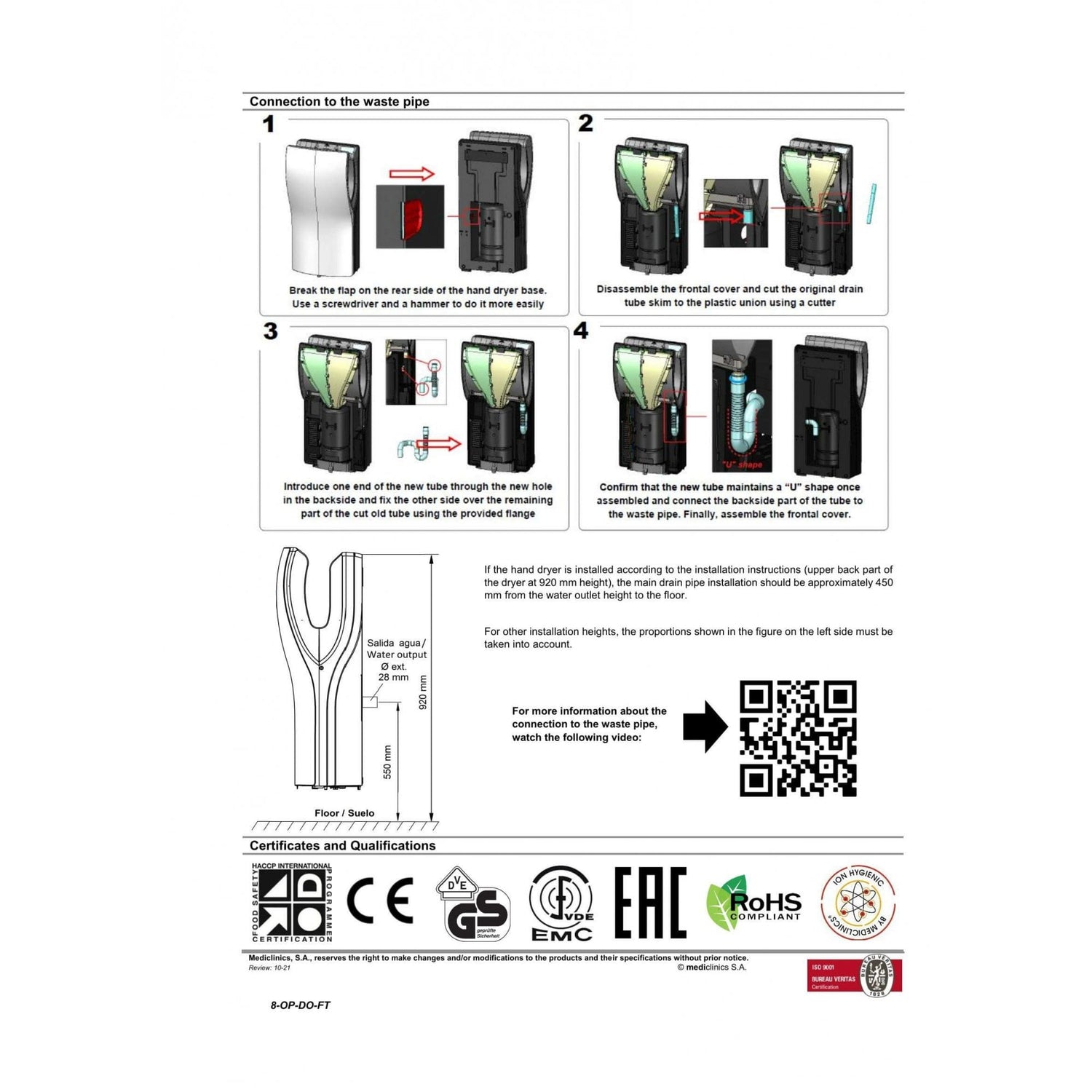

- Install and User Manual - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- Product Leaflet - Mediclinics Dualflow Plus M14AXX - M24AXX (PDF)
- Outline Drawing - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- Troubleshooting guide - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- ARCHID GSM File - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (GSM)
- CAD - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (DWG)
- Revit RFA File - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (RFA)
- Sketchup SKP File - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (SKP)
- CB Certificate - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- CE Certificate - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- EMC Certificate - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- GS Certificate - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- G-MARK Certificate - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- UL Certificate - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
- HACCP Certificate - Mediclinics Dualflow PLUS Eco Hand Dryer M14AXX (PDF)
Specifications
Guarantee
Electrical
Performance
Construction
Accreditations
Dimensions_and_weight
Specifications
Guarantee
Type | Parts and Labour |
---|---|
As standard | 4 Years |
Extended enhanced available | No |
Electrical
Isolation | Class I |
---|---|
Rated power | 0.42 - 1.5 kW |
Energy per dry | 1.75 - 4.17 Wh |
Ingress protection | IPX4 |
Heater element power | 0.4 kW |
Electrical supply voltage | 200 - 240V |
Electrical supply frequency | 50 / 60 Hz |
Performance
Dry time | 10 - 15 Seconds |
---|---|
Air speed | 260 MPH |
Low noise | No |
Motor type | Brushed Motor |
Motor speed | 19,000 - 32,000 RPM |
Adjustable settings | Yes |
Expected motor life | 3,000 Hours |
Recommended daily uses | 300+ (High Traffic) |
Construction
Hepa filter | Yes |
---|---|
Cover material | ABS |
Notable extras | HACCP Certified |
Finishes available | Silver |
Antibacterial additives | Yes |
Accreditations
Certificates | CE. UL, ROHS, GS, HACCP Certified |
---|
Dimensions_and_weight
Depth | 228 mm |
---|---|
Width | 320 mm |
Height | 650 mm |
Net weight | 8.3 Kg |
Packed weight | 10.3 Kg |
Packaging depth | 500 mm |
Packaging width | 600 mm |
Packaging height | 750 mm |
Mediclinics Dualflow Plus Eco Hand Dryer (Silver) features
