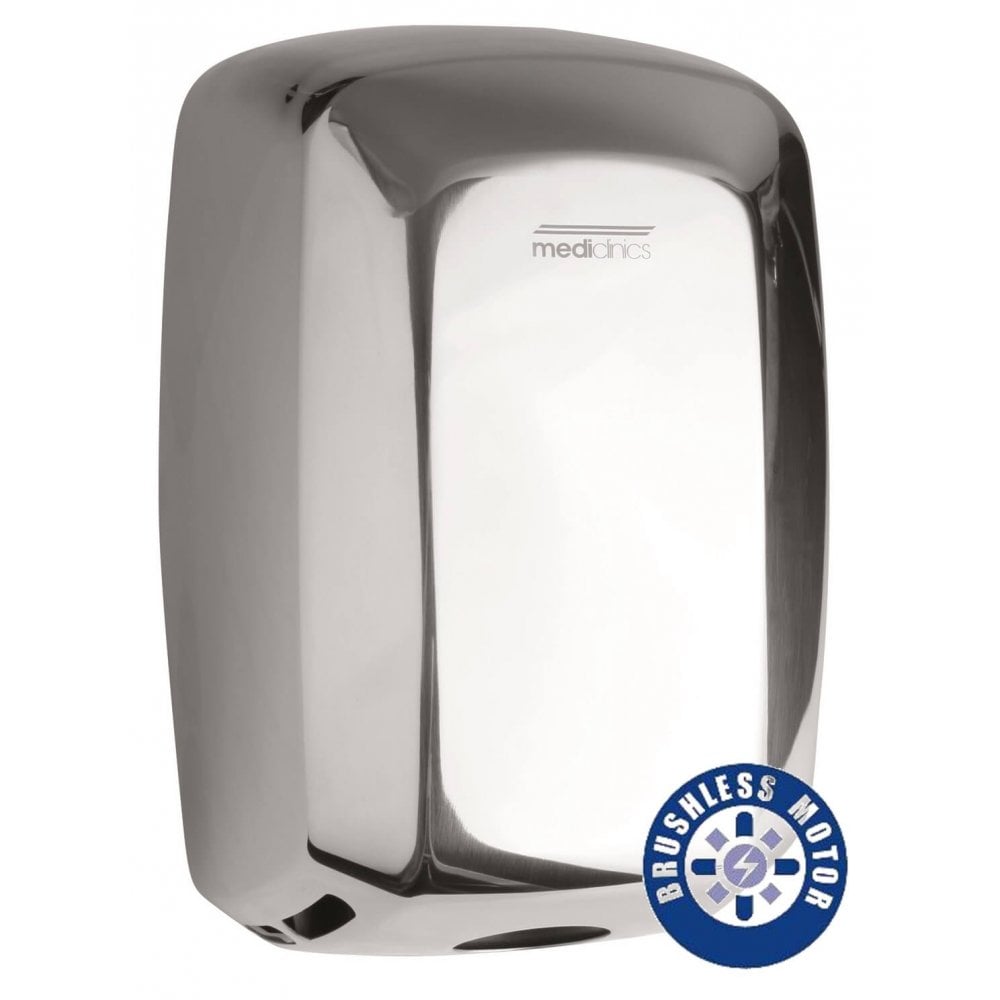

Machflow Plus: M19A Hand Dryer, Brushless Motor, HEPA Filter, Ioniser, 20 Years Guarantee
About this product
One of the world’s fastest dry times:
With a dry time exceeding other leading brands on the market, the Machflow Plus provides an exceptional user experience. This model features a new air concentrator nozzle which enhances airflow efficiency for quicker drying.
Includes a brushless motor:
Equipped with a superior brushless motor, this hand dryer is maintenance-free, delivering greater efficiency while using less energy. It boasts a life expectancy of 20 years.
Enhanced hygienic features:

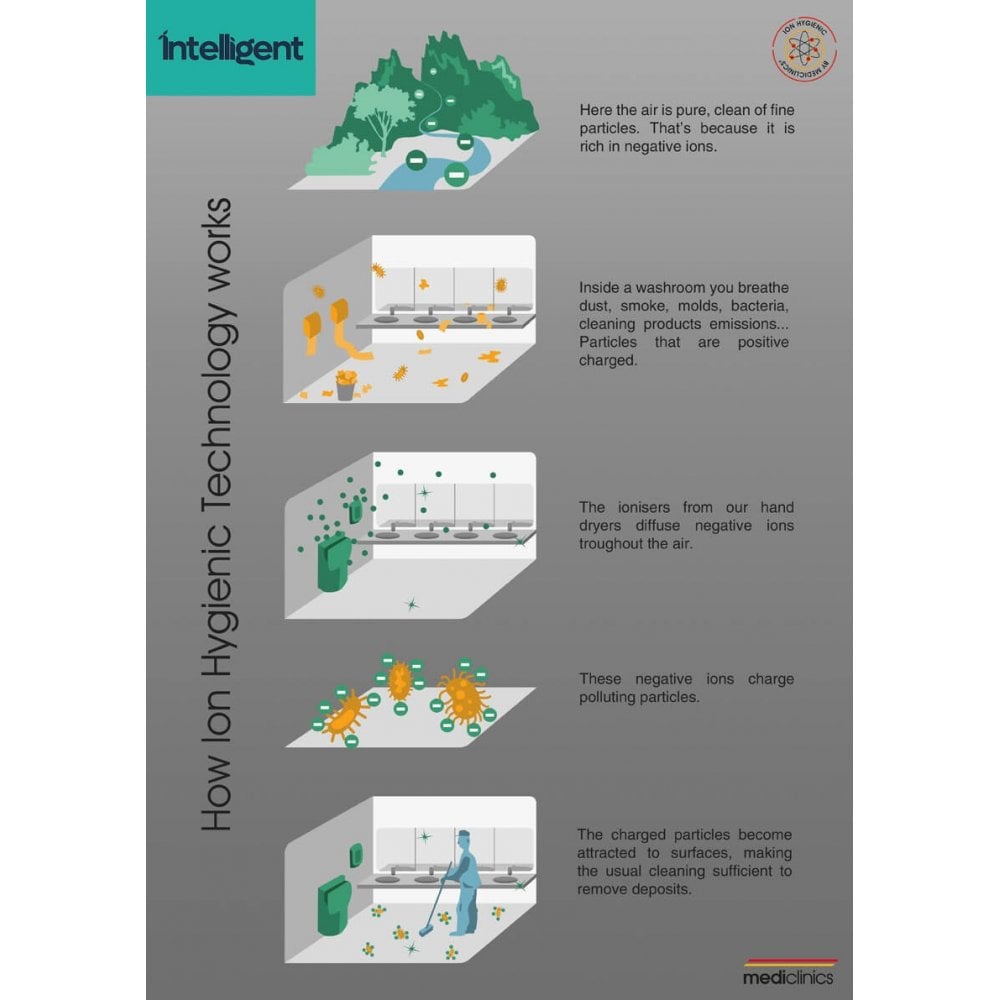

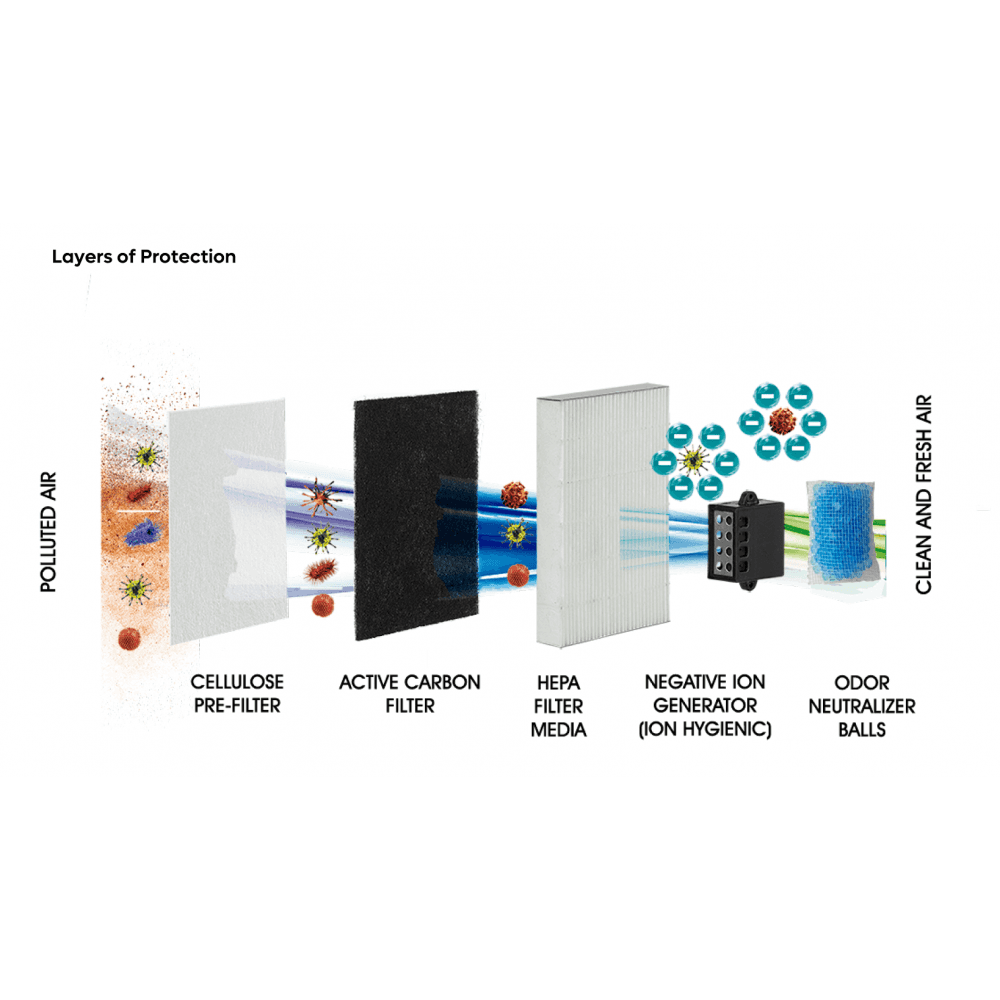

The HEPA filter captures 99.9% of bacteria, ensuring a superior air quality. The included ioniser utilises Ion Hygienic technology to cleanse the air by emitting anions, effectively neutralising most germs.
Cutting-edge installation process:

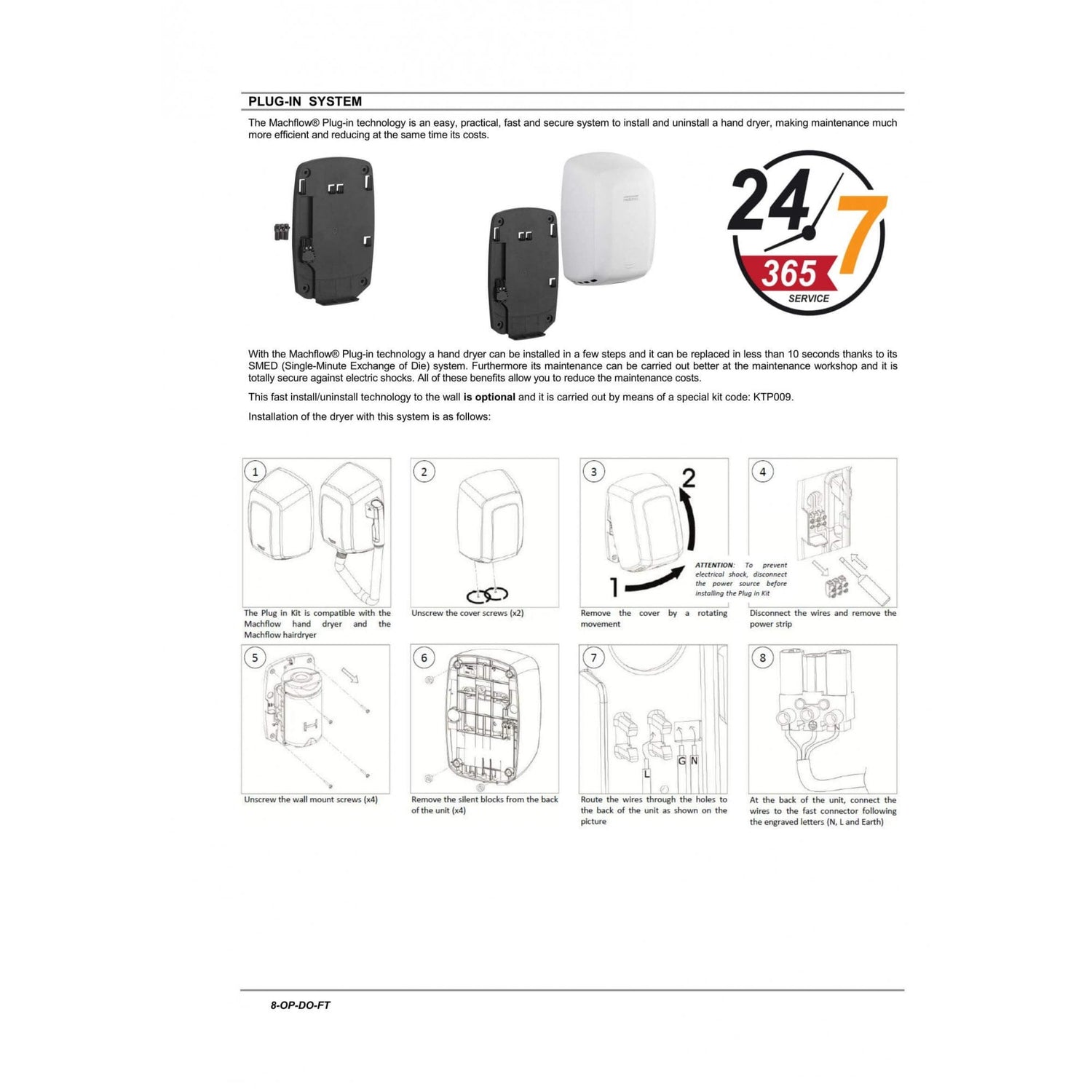

The plug-in system allows for easy attachment and detachment from the wall, enabling convenient access for maintenance without requiring an electrician.
Low carbon footprint and energy use:
Operating at just 250W, this dryer meets user expectations for efficient drying while significantly reducing environmental impact compared to paper towels.
Robust, vandal-resistant construction:
Designed for durability, the hand dryer is highly resistant to vandalism, featuring a thick steel cover and strong plastic components, ensuring long-lasting service.
Adjustability:
The adjustable motor speeds allow for noise reduction and energy efficiency, meeting varying budget constraints and location needs.
Specifications:
- Dry Time: 10 - 15 Seconds
- Power: 0.25 - 1.1 kW
- Weight: 5.5 Kg
- Installation: Plug-in System
- Guarantee: 20 Years
-
Download

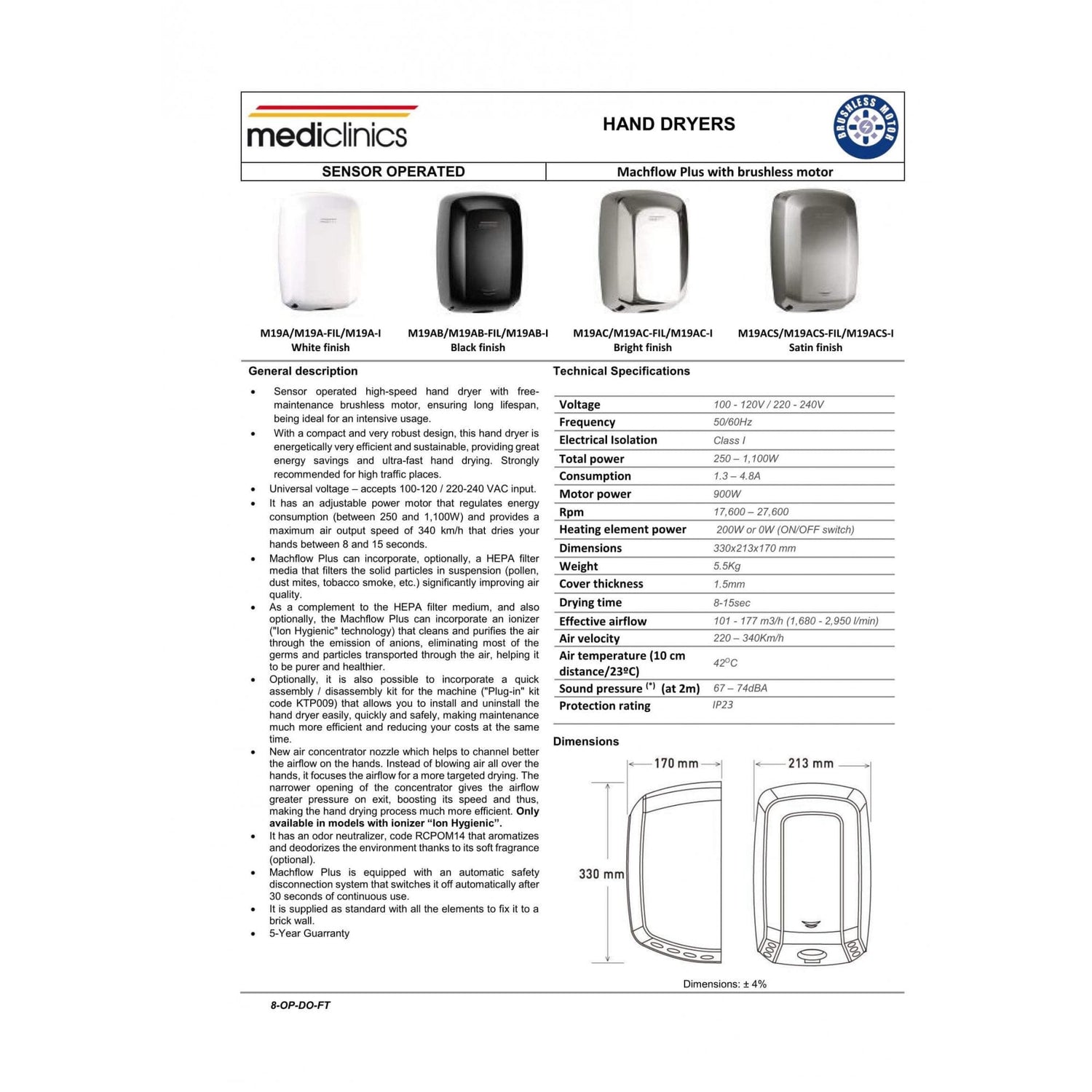

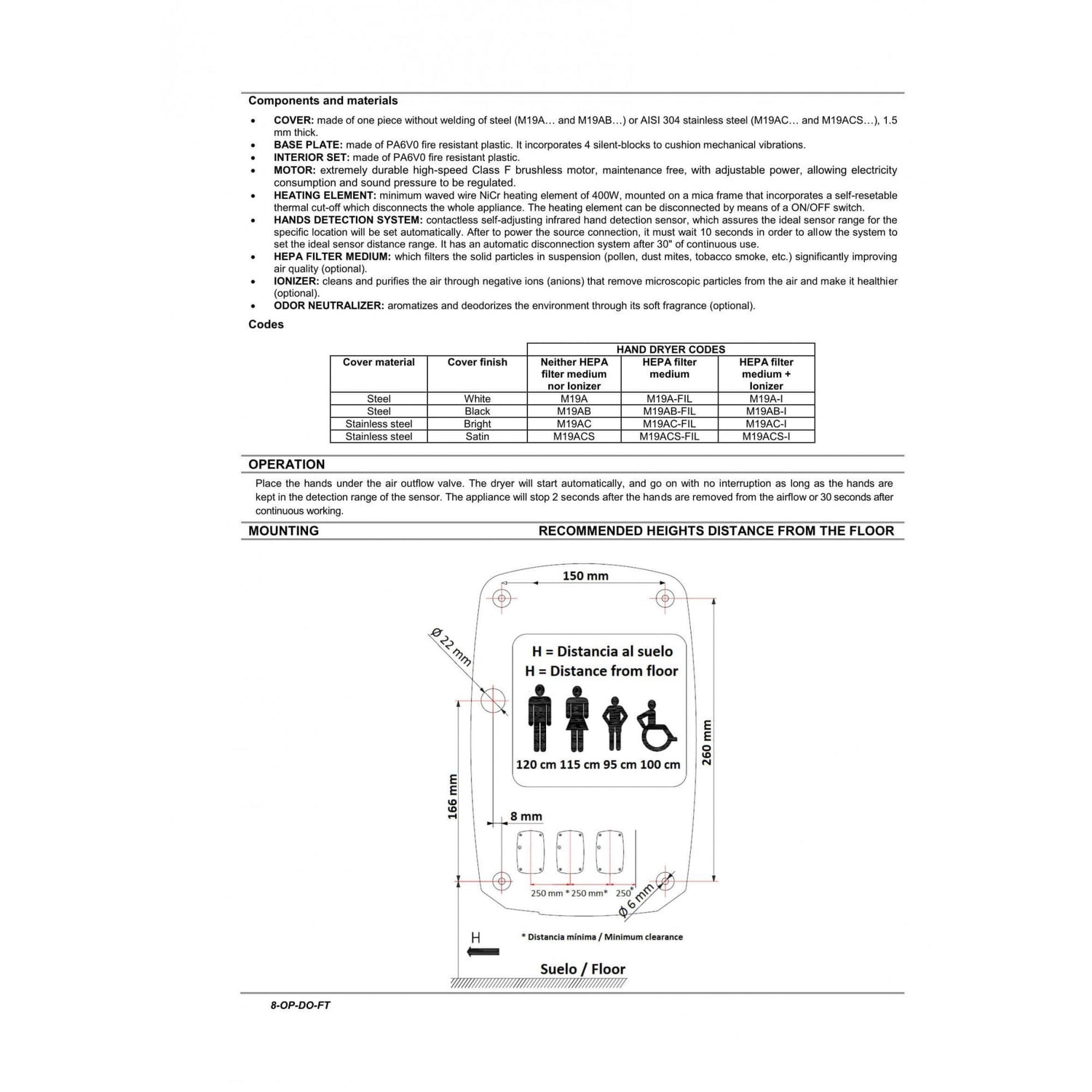

- Spec Sheet - Mediclinics Machflow Plus Brushless Hand Dryer (PDF)
- Outline Diagram - Mediclinics Machflow Plus Brushless Hand Dryer (PDF)
- Leaflet - Mediclinics Machflow Plus M09XX - M19XX (PDF)

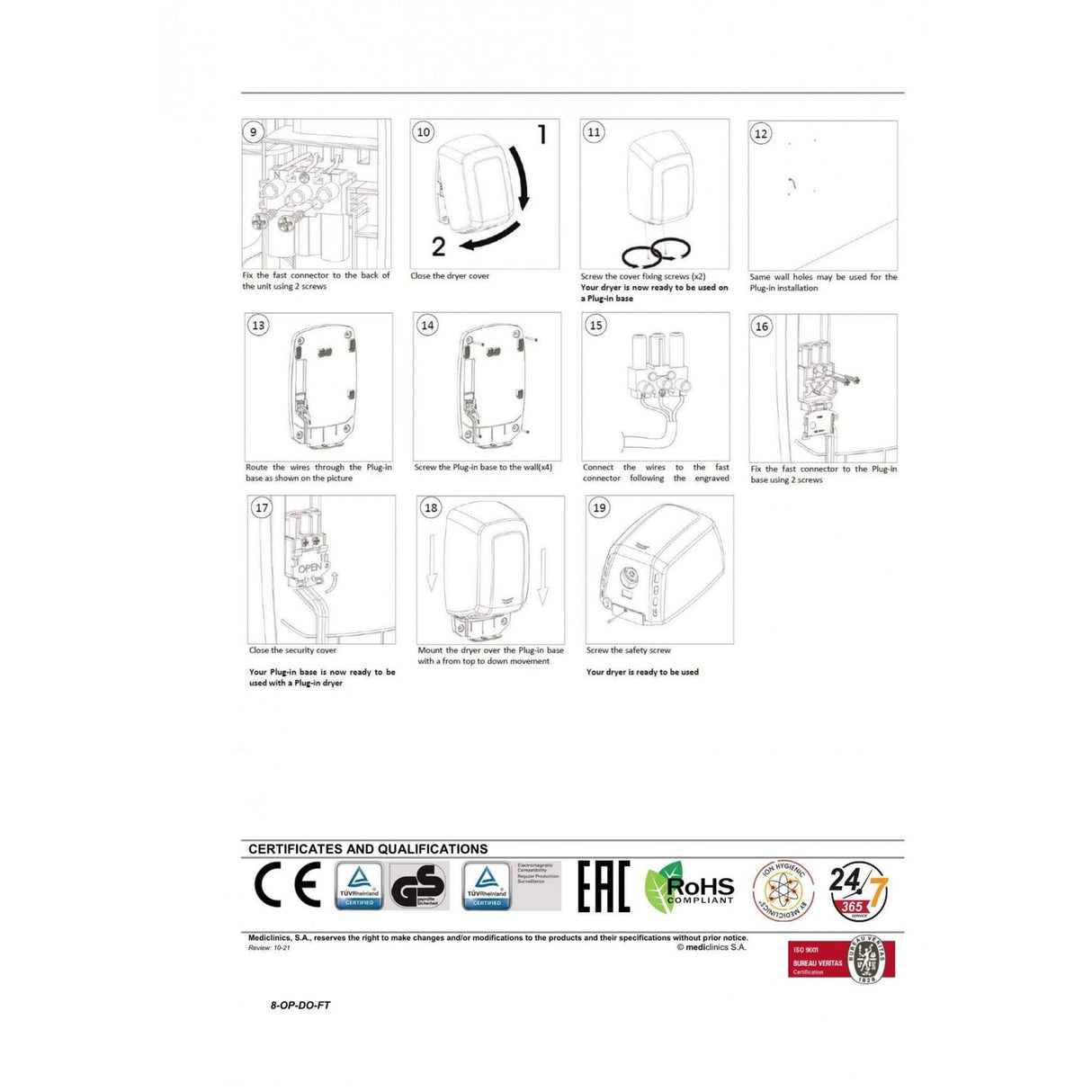

- Plug-In-Kit - Mediclinics Machflow Plus M09XX - M19XX (PDF)
- GS CERTIFICATE - M19AXX (PDF)
- EMC CERTIFICATE - M19AXX
- ARCHICAD GSM file – Mediclinics Machflow Plus Brushless Hand Dryer White or Black Steel M19AX (GSM)
- ARCHICAD GSM file – Mediclinics Machflow Plus Brushless Hand Dryer Stainless Steel M19ACX (GSM)
- CAD Drawing- Mediclinics Machflow Plus Brushless Hand Dryer M19AXX (DWG)
- Revit RFA file – Mediclinics Machflow Plus Brushless Hand Dryer White or Black Steel M19AX (RFA)
- Revit RFA file – Mediclinics Machflow Plus Brushless Hand Dryer Stainless Steel M19ACX (RFA)
- Sketchup SKP file – Mediclinics Machflow Plus Brushless Hand Dryer White or Black Steel M19AX (SKP)
- Sketchup SKP file – Mediclinics Machflow Plus Brushless Hand Dryer Stainless Steel M19ACX (SKP)
- CB CERTIFICATE - M19AXX (PDF)
Specifications
Guarantee
Electrical
Performance
Construction
Accreditations
Dimensions_and_weight
Specifications
Guarantee
Type | Parts and Labour |
---|---|
As standard | 20 Years |
Extended enhanced available | Yes |
Electrical
Isolation | Class I |
---|---|
Rated power | 0.25 - 1.1 kW |
Energy per dry | 1.04 – 3.06 Wh |
Ingress protection | IP23 |
Heater element power | 0.2 kW |
Electrical supply voltage | Universal voltage: 110–240V |
Electrical supply frequency | 50 / 60 Hz |
Performance
Dry time | 10 - 15 Seconds |
---|---|
Air speed | 137 - 211 MPH |
Low noise | No |
Motor type | Brushless Motor |
Motor speed | 17,600 – 27,600 RPM |
Adjustable settings | Yes |
Expected motor life | >5,000 Hours |
Recommended daily uses | 300+ (High Traffic) |
Construction
Hepa filter | Yes |
---|---|
Cover material | Steel / Stainless Steel |
Notable extras | Ioniser, Plug in system installation available |

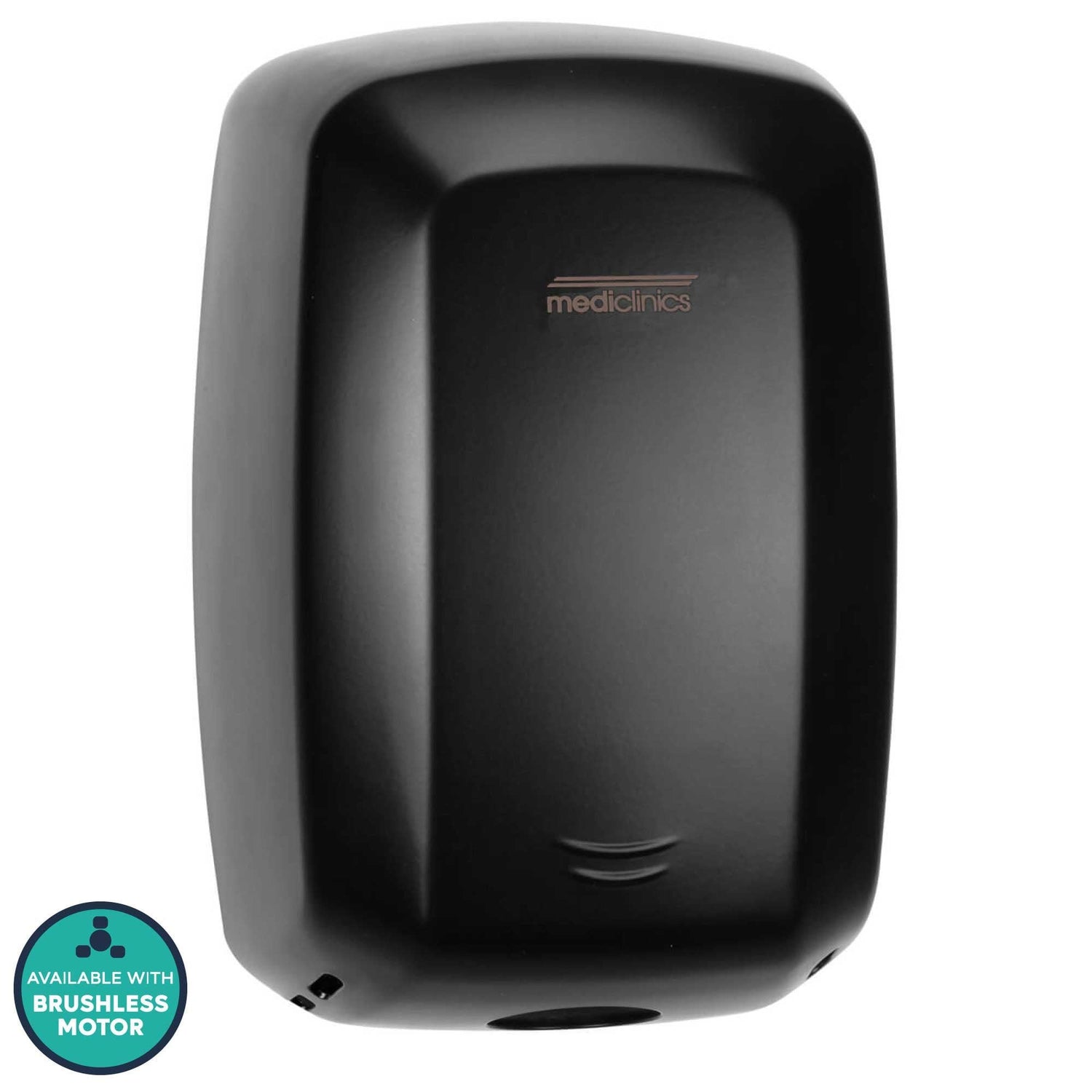

Finishes available | White, Black, Brushed, Polished |
Antibacterial additives | No |
Accreditations
Certificates | CE, UL, cUL, TUV-GS, EAC and RoHS |
---|
Dimensions_and_weight
Depth | 170 mm |
---|---|
Width | 213 mm |
Height | 330 mm |
Net weight | 5.5 Kg |
Packed weight | - |
Packaging depth | - |
Packaging width | - |
Packaging height | - |
Machflow Plus Hand Dryer (M19A) with HEPA Filter & Ioniser features
