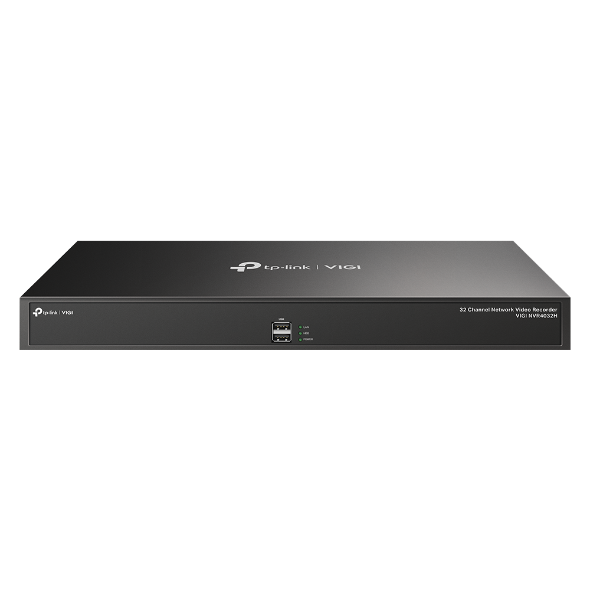

TP-Link VIGI NVR4032H | 32-Channel 4K Network Video Recorder, 4× SATA, Dual Ethernet, H.265+, 16-Channel Playback | SKU: VIGI NVR4032H

TP-Link VIGI NVR4032H (SKU: VIGI NVR4032H) is a high-capacity, 32-channel network video recorder built to support demanding commercial surveillance environments. Designed by TP-Link under the VIGI brand, this professional-grade NVR combines 4K video output, 16-channel synchronous playback, dual Gigabit Ethernet, and support for up to 40TB of local storage—making it ideal for large-scale deployments like warehouses, shopping centres, schools, industrial estates, and logistics hubs.

Product Highlights:

• 32-Channel Live View & Input
  The VIGI NVR4032H supports up to 32 IP camera channels, allowing for comprehensive security monitoring across extensive premises. With decoding capacity of 16-ch@2MP or 8-ch@4MP, users can enjoy real-time, high-definition live views and simultaneous playback across multiple streams.

• 4K HDMI & VGA Output
  Output crystal-clear video through 1 HDMI (up to 3840x2160@30Hz) and 1 VGA (up to 1920x1080@60Hz)interface, each supporting independent display output for flexible monitoring station setups.

• Dual Gigabit Ethernet Ports
  Designed with 2× RJ-45 10/100/1000 Mbps Ethernet ports, the NVR4032H offers:

  • Multi-address mode (for multiple subnets),

  • Network fault-tolerance (ensuring uptime),

  • Load balancing and port aggregation (for improved bandwidth).

• H.265+ Smart Video Compression
  Reduces bandwidth and storage usage without sacrificing image quality. Efficient compression supports more footage over less disk space, reducing operational costs and system load.

• Massive Local Storage Support
  With 4 SATA interfaces, each supporting up to 10 TB (total 40 TB), this NVR is capable of long-term, 24/7 continuous recording, making it suitable for compliance-heavy environments and forensic retention requirements.

• 16-Channel Synchronous Playback
  Easily search and replay footage from up to 16 cameras simultaneously, using intuitive filters such as date, channel, event type, or tag. Playback functions include fast forward, slow motion, smart tagging, and video clipping.

• Plug & Play Auto Initialization
  The NVR automatically detects and activates new VIGI IP cameras, and allows quick HDD setup via the Auto Initialize feature—cutting down installation and configuration time significantly.

• ONVIF Profile S Compatibility
  Supports seamless integration with VIGI and third-party IP cameras, giving installers flexibility when designing bespoke CCTV networks.

• Remote Access & Monitoring
  Monitor and manage your system from anywhere using the VIGI mobile app (iOS & Android), web UI, or VIGI Security Manager software. Get real-time alerts, view live feeds, or review footage remotely.

Specifications Summary:

• Brand: TP-Link

• Model: VIGI NVR4032H

• SKU: VIGI NVR4032H

• Video Input: 32 IP Channels

• Decoding Capacity: 16-ch@2MP or 8-ch@4MP

• Output: 1 HDMI, 1 VGA (Independent Output)

• Storage: 4 × SATA up to 10 TB each (HDDs not included)

• Compression: H.265+/H.265/H.264+/H.264

• Playback: 16-Channel Synchronous

• Ethernet: Dual 10/100/1000 Mbps RJ-45

• Power Supply: DC Jack (external PSU)

• Form Factor: Rack-Mountable

• Remote Access: VIGI App, Web UI, Security Manager

• Warranty: 5 Years

Example Use Case:

For a multi-site commercial office block, the VIGI NVR4032H can connect 32 PoE IP cameras installed across entry points, server rooms, hallways, and outdoor zones. All footage is recorded on four installed 10 TB HDDs, with smart playback accessible from the security office or remotely via the VIGI mobile app. The IT team utilises dual Ethernet ports for network redundancy and bandwidth balancing, ensuring uninterrupted access even in the event of a switch failure.

Whether you’re upgrading an existing CCTV infrastructure or designing a new system from scratch, the TP-Link VIGI NVR4032H is the ideal NVR for security professionals needing scale, performance, and reliability—all in one rack-mountable device.
