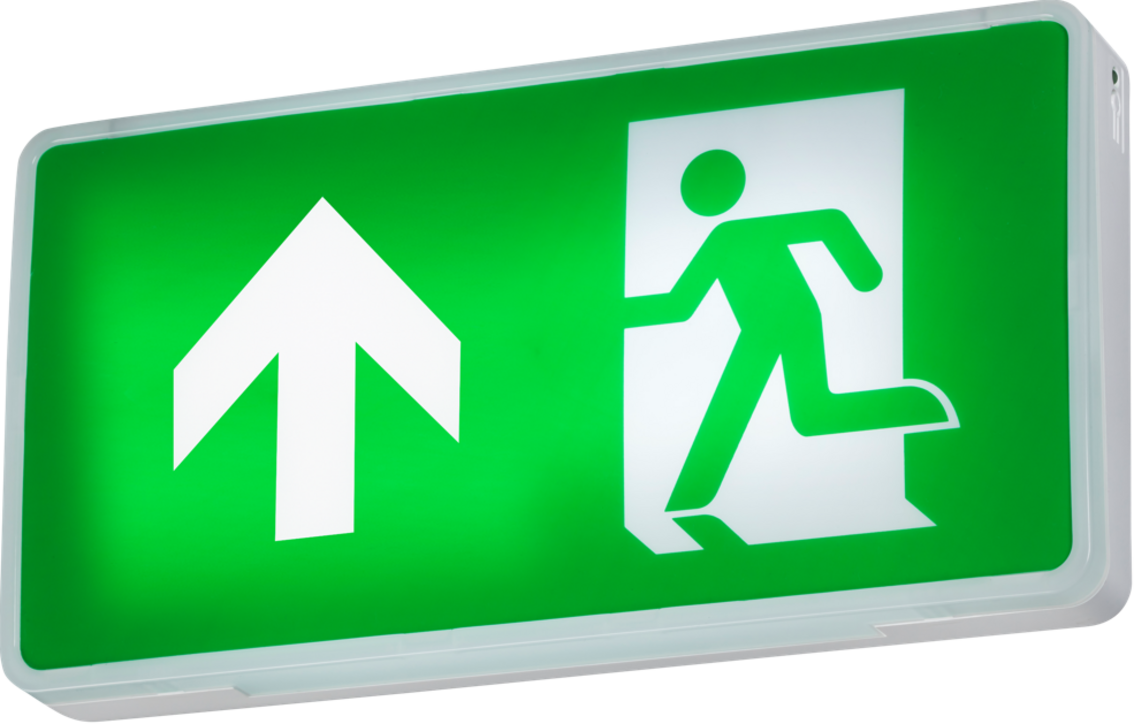

Knightsbridge: EMRNSTL, 230V 4W LED Emergency Exit Sign, Self-Test, Maintained/Non-Maintained, Polycarbonate, IP20
About this product
Introducing the 230V 4W LED Emergency Exit Sign with self-test functionality. This sign is designed for both maintained and non-maintained use, ensuring reliable performance in any situation.
Key Features:
- Integral auto test facility ensuring periodic testing at pre-programmed intervals
- Manufactured in lightweight, durable polycarbonate
- Interchangeable legends for versatility (arrow up, down, left/right included)
- 3 hours of emergency illumination with LiFePO4 battery
Ideal for indoor use only.
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Construction | Polycarbonate |
| Primary Voltage | 230V 50Hz |

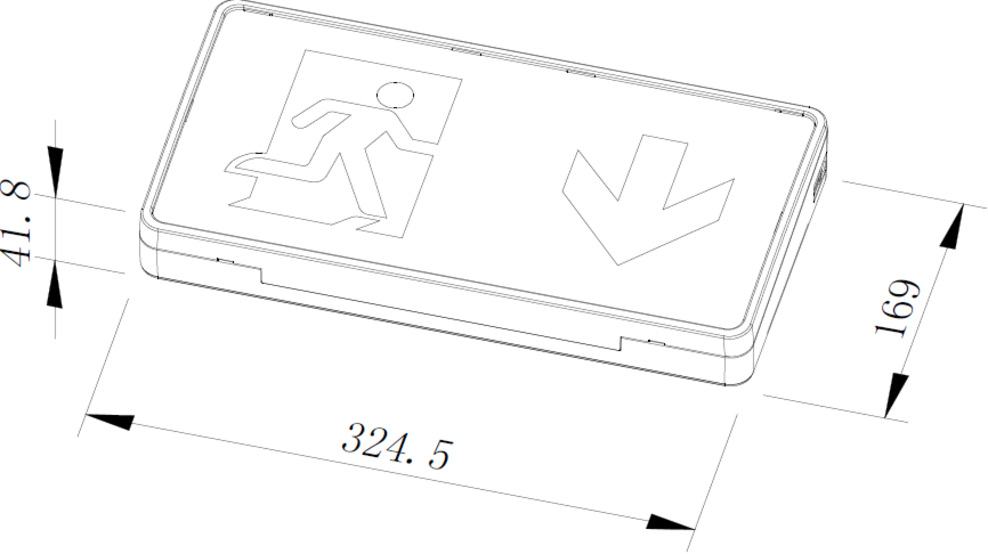

Dimensions
| Height | 169 mm |
|---|---|
| Length | 324 mm |
| Projection | 42 mm |
Lamp
| Dimmable | No |
|---|---|
| Beam Angle | 110 |
| Lamp Included | Yes |
| Lamp Technology | SMD LED |
Luminaire
| Diffuser | Opal |
|---|---|
| Emergency | Maintained / Non-maintained / Switched |
Photometric
| CCT | 6000 K |
|---|---|
| CRI | >80 |
| Lumens | 150 lm |
| Wattage | 4 |
| Light Colour | Daylight |
| Photometric LDT | EMRNSTL.LDT |
| Photometric PDF | EMRNSTL - EM mode.LDT |
| Lumens (Em. mode) | 120 lm |
| Efficacy (Light source) | 37 lm/W |
230V 4W LED Emergency Exit Sign - Self-test features
