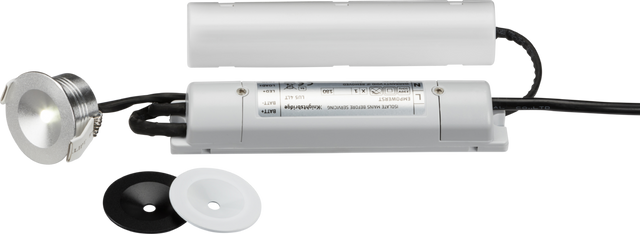

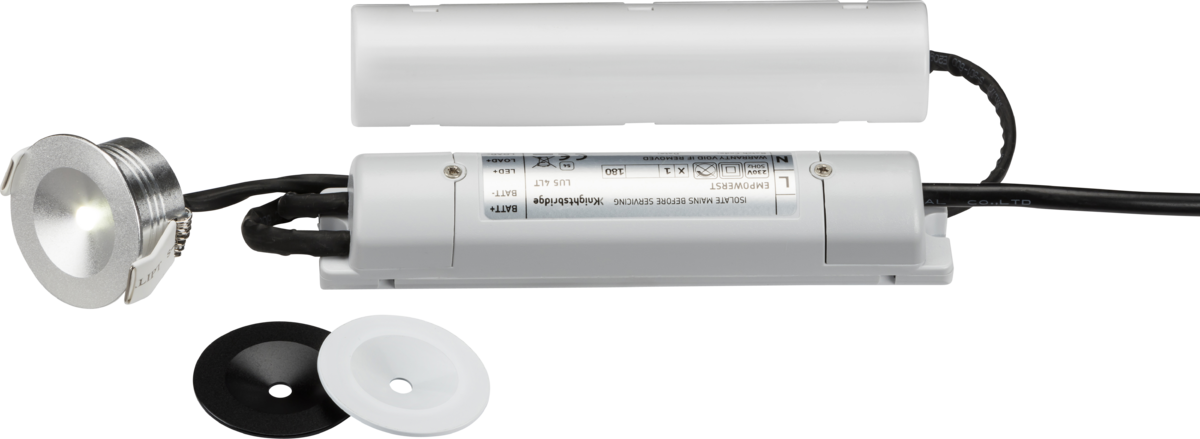

230V IP20 3W LED Emergency Downlight
Introducing the 230V IP20 3W LED Emergency Downlight - Self-Test, designed for reliable illumination during emergencies:
- Integral auto test facility complying with EN 62034.
- Provides a minimum of 3 hours of emergency illumination.
- Constructed with a durable polycarbonate body.
- Includes interchangeable aluminium, white, and black bezels for versatile installation.
- Features a LiFePO4 battery ensuring longevity.
- Ideal for illuminating exit routes in commercial spaces.
Specifications:
- IP Rating: IP20
- Wattage: 3W
- Light Colour: Daylight (6000K)
- Beam Angle: 120 degrees
- Non-maintained operation only.
Complies with necessary UK regulations for emergency lighting products.
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Cable Length | 0.3 m |
Construction | Die-cast aluminium |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |

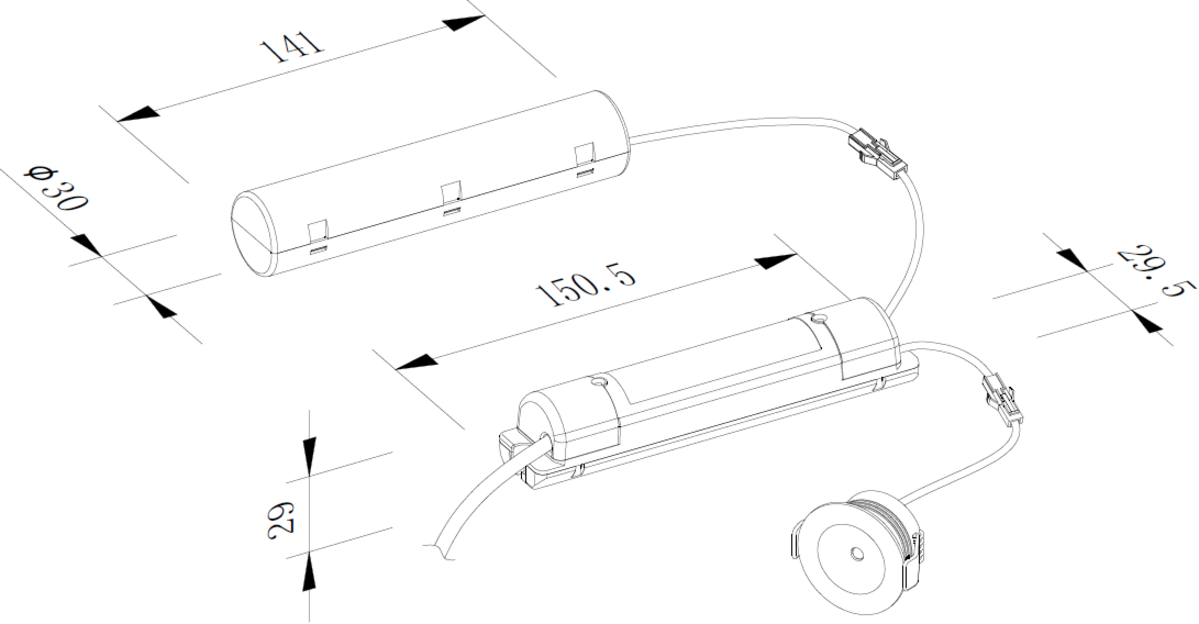

Dimensions
Width | 31 mm |
---|---|
Height | 31 mm |
Length | 150 mm |
Diameter | 42 mm |
Projection | 2 mm |
Minimum Void | 75 mm |
Recessed Depth | 22 mm |
Cut-out Diameter | 34 mm |
Lamp
L70B50 | 30000 |
---|---|
Dimmable | No |
Beam Angle | 120 |
Lamp Included | Yes |
Lamp Technology | LED |
Luminaire
Emergency | Non-maintained only |
---|
Photometric
CCT | 6000 K |
---|---|
CRI | >70 |
Lumens | 125 lm |
Wattage | 3 |
Light Colour | Daylight |
Photometric IES | EMPOWERSTL.IES |
Photometric LDT | EMPOWERSTL.LDT |
Lumens (Em. mode) | 125 lm |
Efficacy (Light source) | 43 lm/W |
230V IP20 3W LED Emergency Downlight features

230V IP20 3W LED Emergency Downlight, Self-Test, 3 Hours Illumination, LiFePO4 Battery, Integral Auto Test, 125 Lumens, EMPOWERSTL
