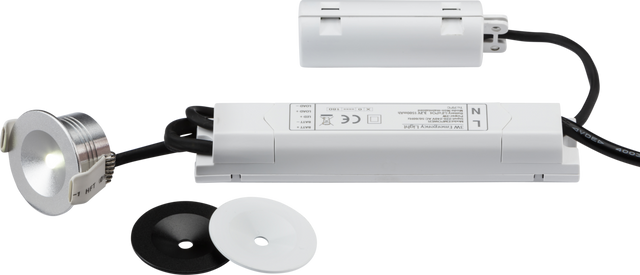

230V IP20 3W LED Emergency Downlight
About this product
The 230V IP20 3W LED Emergency Downlight is designed for effective emergency illumination of exit routes. Its compact and energy-efficient design features a robust polycarbonate body and offers non-maintained functionality. Ideal for commercial and residential use, it ensures safe navigation during power outages.
- Power: 3W with a lumen output of 120lm
- Light Colour: Daylight (6000K)
- Class II construction
- IP20 rated for indoor use
- Complete with white and black bezels
For installation, ensure a minimum void of 125mm is available for recessed fitment.
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Cable Length | 0.4 m |
Construction | Die-cast aluminium |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Width | 31 mm |
---|---|
Height | 31 mm |
Length | 184 mm |
Diameter | 42 mm |
Projection | 2 mm |
Minimum Void | 125 mm |
Recessed Depth | 22 mm |
Cut-out Diameter | 34 mm |
Lamp
L70B50 | 30000 |
---|---|
Dimmable | No |
Beam Angle | 120 |
Lamp Included | Yes |
Lamp Technology | LED |
Luminaire
Emergency | Non-maintained only |
---|
Photometric
CCT | 6000 K |
---|---|
CRI | >70 |
Lumens | 120 lm |
Wattage | 3 |
Light Colour | Daylight |
Photometric IES | EMPOWER3.IES |
Photometric LDT | EMPOWER3.LDT |
Lumens (Em. mode) | 120 lm |
Efficacy (Light source) | 40 lm/W |
230V IP20 3W LED Emergency Downlight features

230V IP20 3W LED Emergency Downlight, Non-Maintained, White Polycarbonate, 120 Lumens, EMPOWER3
