Knightsbridge - 10A Triple Pole Fan Isolator Switch, Anthracite, Screwless Low Profile Design, 1500A Short Circuit Current, SF1100AT

Product Overview & Key Benefits

The 10A Fan Isolator Switch is a critical safety device designed to isolate fan units effectively, making it ideal for use in environments like en-suite bathrooms, family bathrooms, and utility rooms. Its screwless low profile design not only enhances aesthetic appeal but also ensures ease of use and installation. This switch boasts a 10A rating, ensuring maximum safety for all connected appliances. Its triple pole configuration allows for secure isolation, contributing to both user safety and operational efficiency.

Technical Specifications & Product Details

• Property:10A rated for maximum safety
• Functionality:Triple Pole switch for secure isolation
• Design:Screwless low profile for a sleek finish
• Short Circuit Current:Rated conditional short circuit current (Inc) of 1500A
• Standards Compliance:Complies with EN 60669-1, EN 60669-2-4 standards
• Construction:Made from SPCC Steel with an Anthracite finish
• IP Rating:IP20
• Voltage:Operates at 230V 50Hz

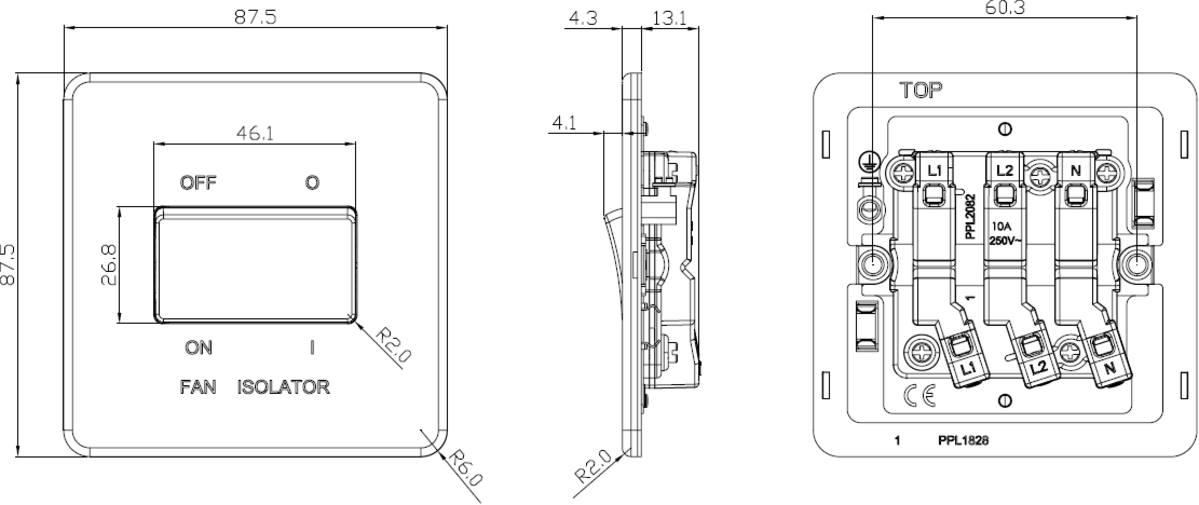

• Dimensions:Depth: 21.5 mm; Width: 87.5 mm; Height: 87.5 mm; Projection: 8.4 mm; Plate Depth: 4.3 mm; Recessed Depth: 13.1 mm; Minimum Mounting Box Depth: 16mm
• Earth Terminal:Yes

Ideal Uses & Applications

This fan isolator switch is perfect for a range of settings, including:

• Domestic Use:Ideal for en-suite bathrooms and utility rooms where effective isolation of fan devices is necessary.
• Commercial Buildings:Suitable for office spaces, hotels, and other commercial applications where ensuring electrical safety and compliance is paramount.
• Renovations and New Installations:Perfect for both DIY enthusiasts and professional electricians looking to upgrade existing fixtures.

Energy Efficiency & Cost Savings

This 10A Fan Isolator Switch promotes energy efficiency by allowing for the effective management of electrical devices, which can help reduce operational costs significantly. By safely isolating fan systems, it reduces the risk of unnecessary energy consumption, ultimately contributing to lower electricity bills. Switching to our isolator can result in improved system lifespan and performance, offering long-term savings for both residential and commercial users.
