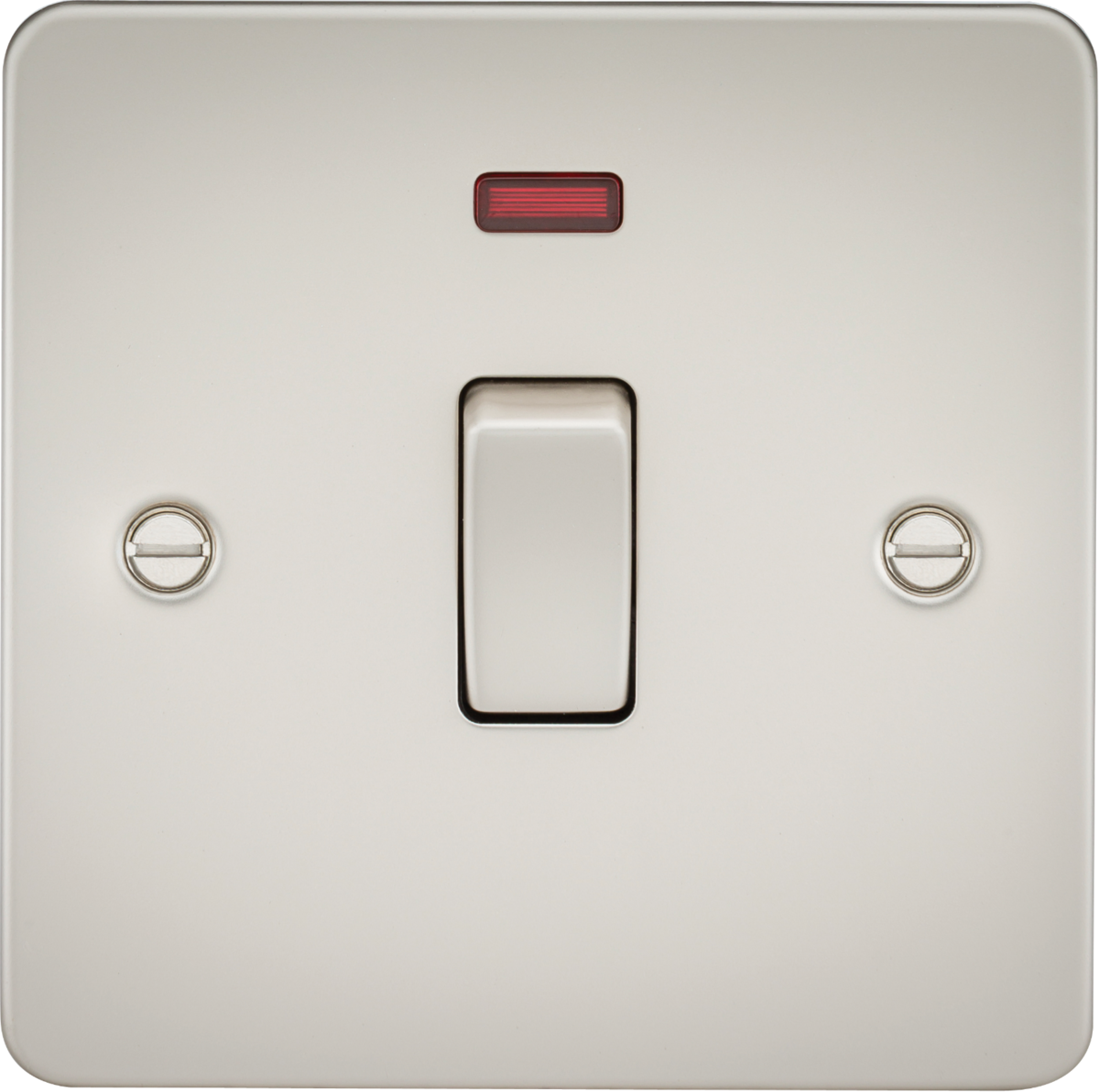

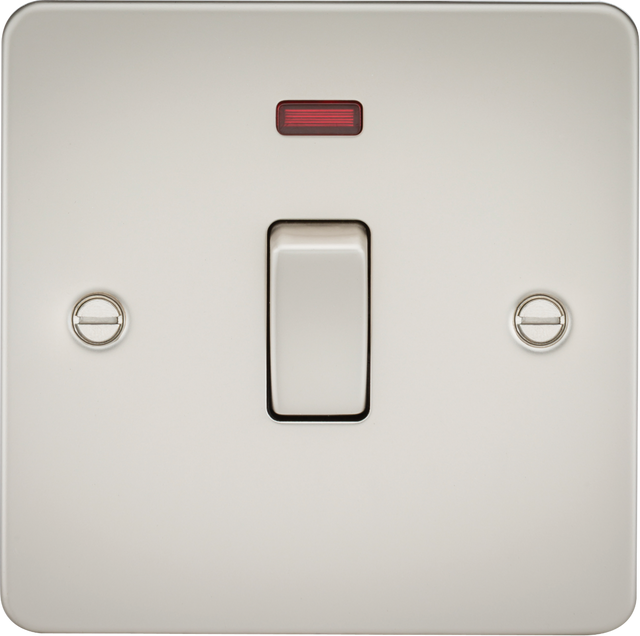

Knightsbridge: FP8341NPL, 20A 1G Double Pole Switch, Neon Indicator, Pearl Finish, Low Profile, 230V, EN 60669-1 Certified
About this product
The 20A 1G DP Switch with Neon - Pearl is an ideal choice for fixed appliances, such as water heaters, ensuring a reliable power supply with its robust design. Features include:
- 20A rated for high-performance applications.
- Double pole for added safety.
- Switched functionality with a neon indicator.
- Ultra low profile design that fits seamlessly with modern interiors.
- Constructed from durable 201 stainless steel and certified to EN 60669-1.
- Minimum mounting box depth of 25mm.
Ensure compliance with UKCA and CE standards when installing.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Pearl |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

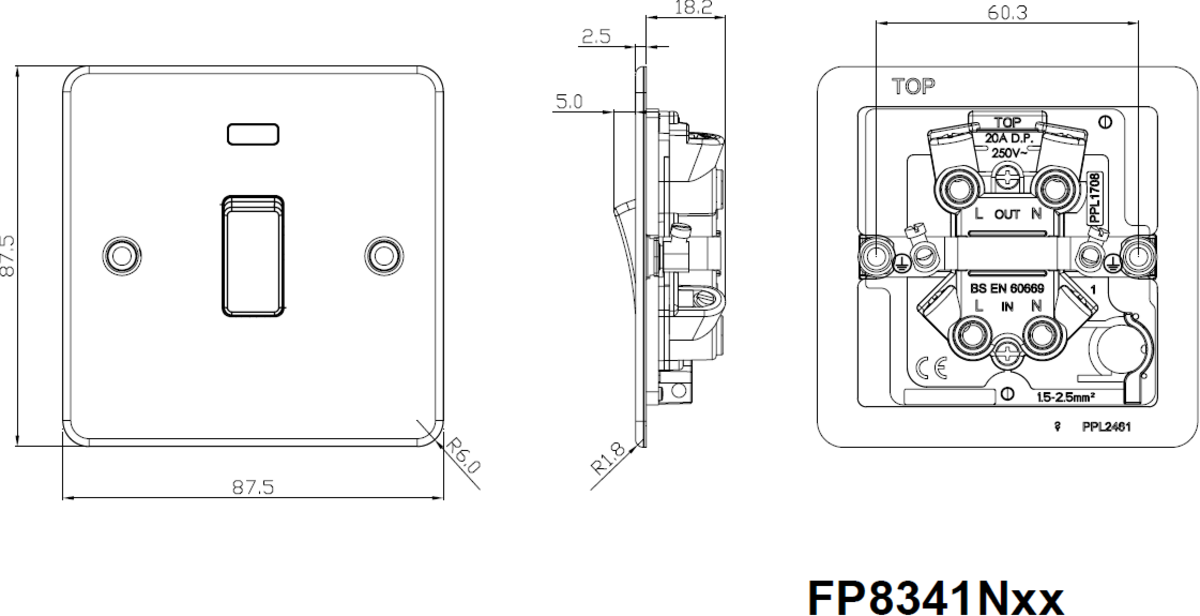

Dimensions
| Width | 87.5 mm |
|---|---|
| Height | 87.5 mm |
| Projection | 2.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | No |
20A DP Switch With Neon Indicator - Pearl Finish features
