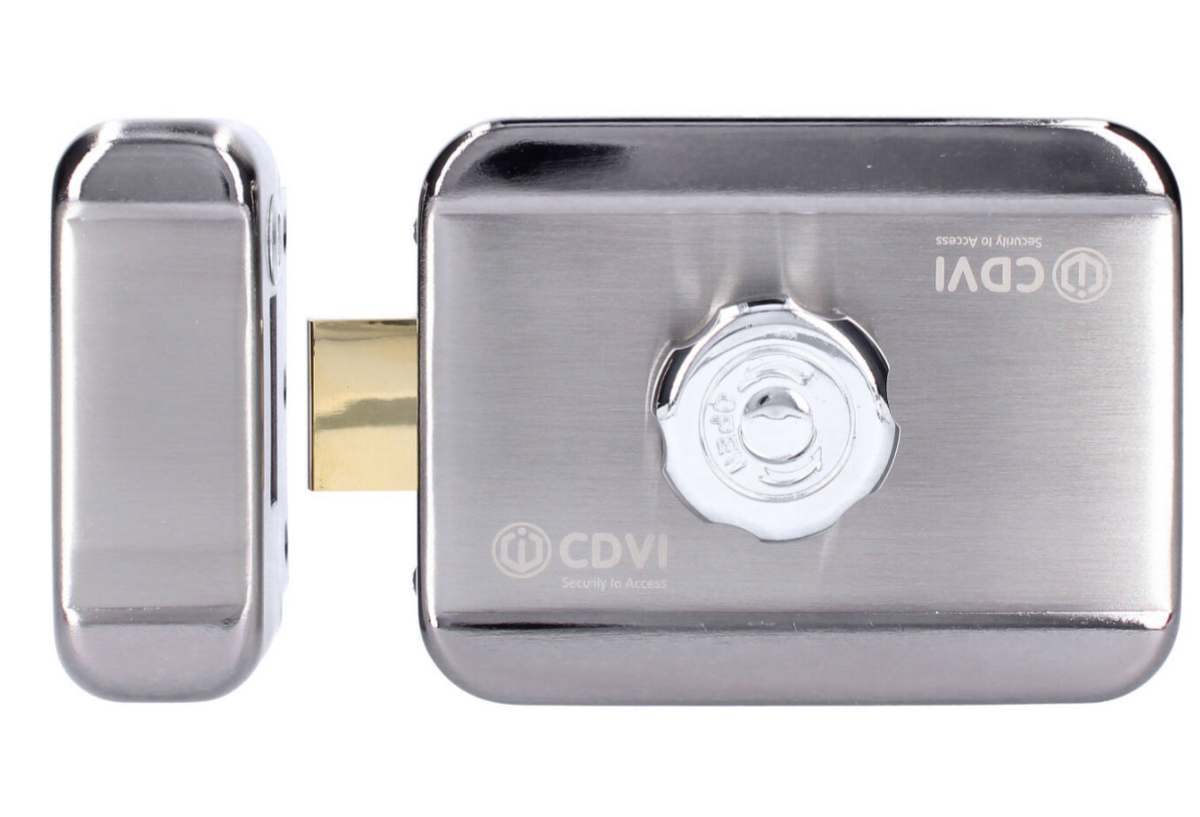

CDVI MVM Motorised Deadbolt Lock
The CDVI MVM Motorised Deadbolt features an electronic deadlocking mechanism remarkably suited for various applications, often deployed on external gates. It securely locks heavy-duty doors and cages and comes with a circular key cylinder along with 3 keys compatible with door/gate thicknesses of 40-90mm.
This lock is non-handed, allowing installation for either left or right side opening, and includes a manual override function for added flexibility. The nylon gears ensure smooth, silent operation, with a varnish coating on the electronics making it ideal for outdoor use.
- Non-handed motorised dead-bolt with manual operation
- Audible signal for locking error
- Suitable for outdoor use
- Includes round cylinder and keys
- Ideal for doors and gates
-
Download
- MVM
Specifications
Specifications
ITM No. | ITM002652 |
---|---|
Voltage | 12 V |
Current | 120 mA working - 410 mA inrush |
Holding Force | Up to 1,500 kg |
IP Rating | IP57 |
Temperature Range | -25°C to 70°C |
CDVI MVM Motorised Deadbolt Lock features

CDVI MVM Motorised Deadbolt Lock with Manual Override, 40-90mm Thickness, Non-Handed, IP57
