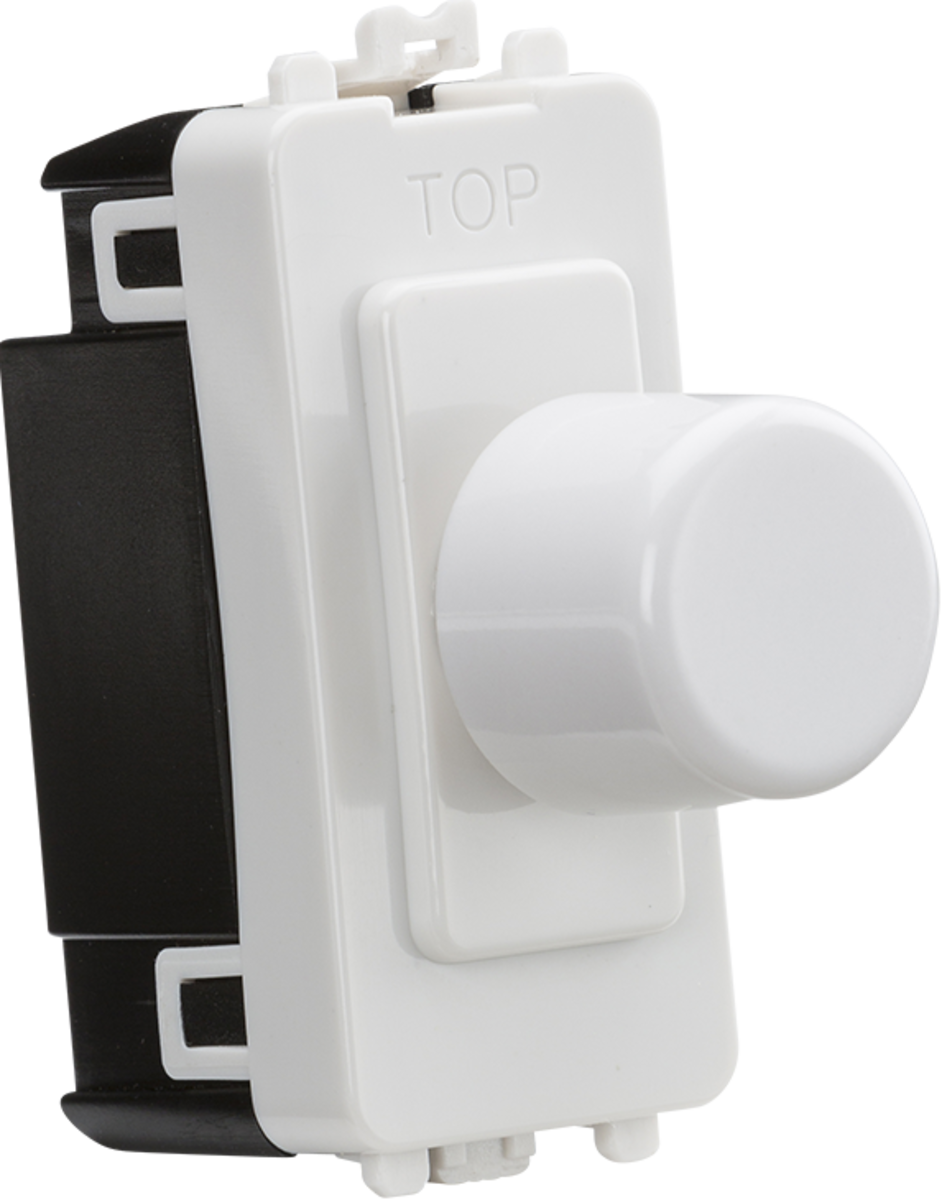

Knightsbridge: GDM200U, 2-Way Trailing Edge Dimmer Module, 10-200W Incandescent, 10-100W LED, White (UREA), IP20
About this product
This 1G 2-way trailing edge dimmer module is designed for use with the Knightsbridge Screwless or Flat Plate systems. Please ensure compatibility with your lamp's manufacturer.
Key features:- Rated for 10-200W incandescent and 10-100W LED
- Press on/off operation for ease of use
- Utilises trailing edge dimmer technology, providing smooth dimming
- Certified to EN 60669-2 for quality and safety
We recommend a maximum of 10-12 lamps per grid dimmer to prevent any inrush current problems.
Specifications
Dimensions
Specifications
| Finish | White (UREA) |
|---|---|
| IP Rating | IP20 |
| Construction | ABS |
| Primary Voltage | 230V 50Hz |

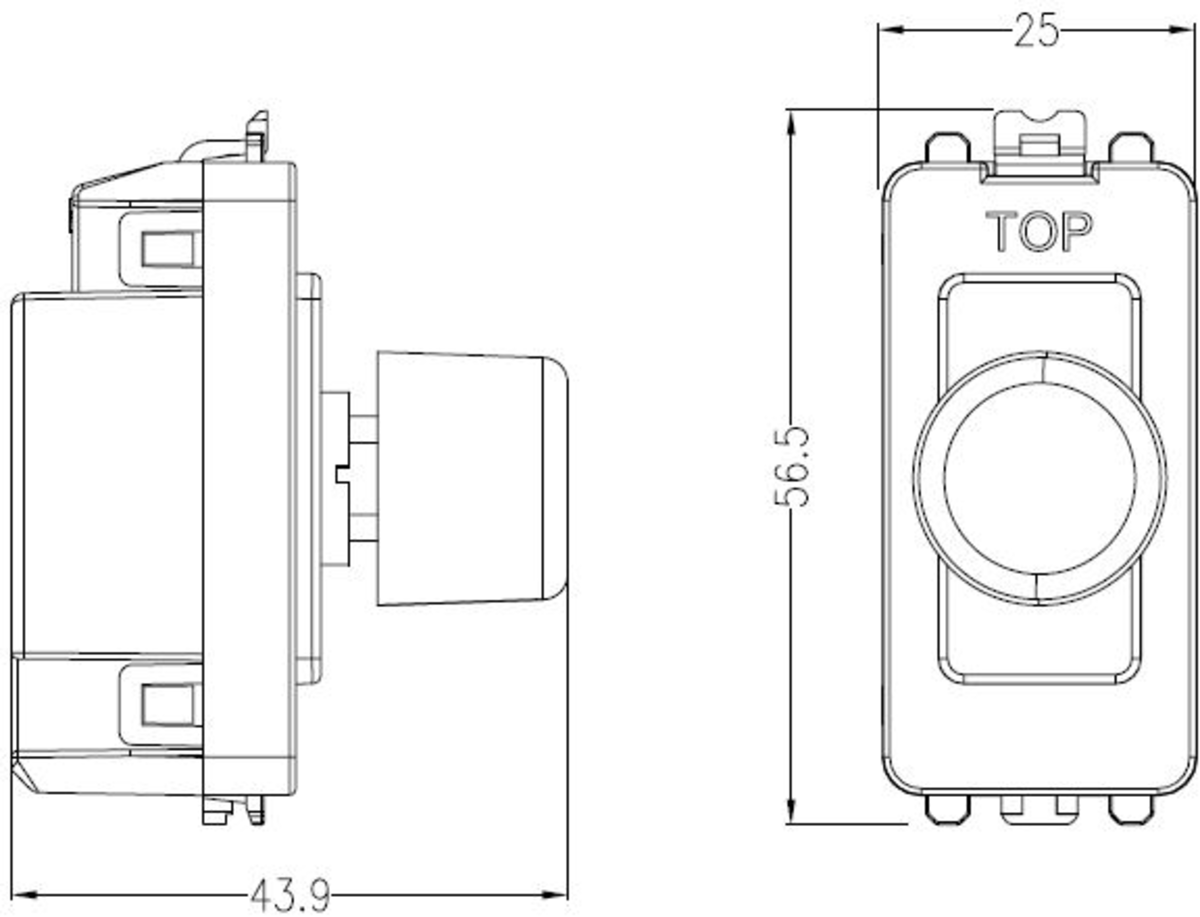

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 25 mm |
| Height | 56.3 mm |
| Projection | 23 mm |
| Recessed Depth | 22 mm |
| Min. Mounting Box Depth | 35mm |
Knightsbridge Trailing Edge Dimmer Module features
