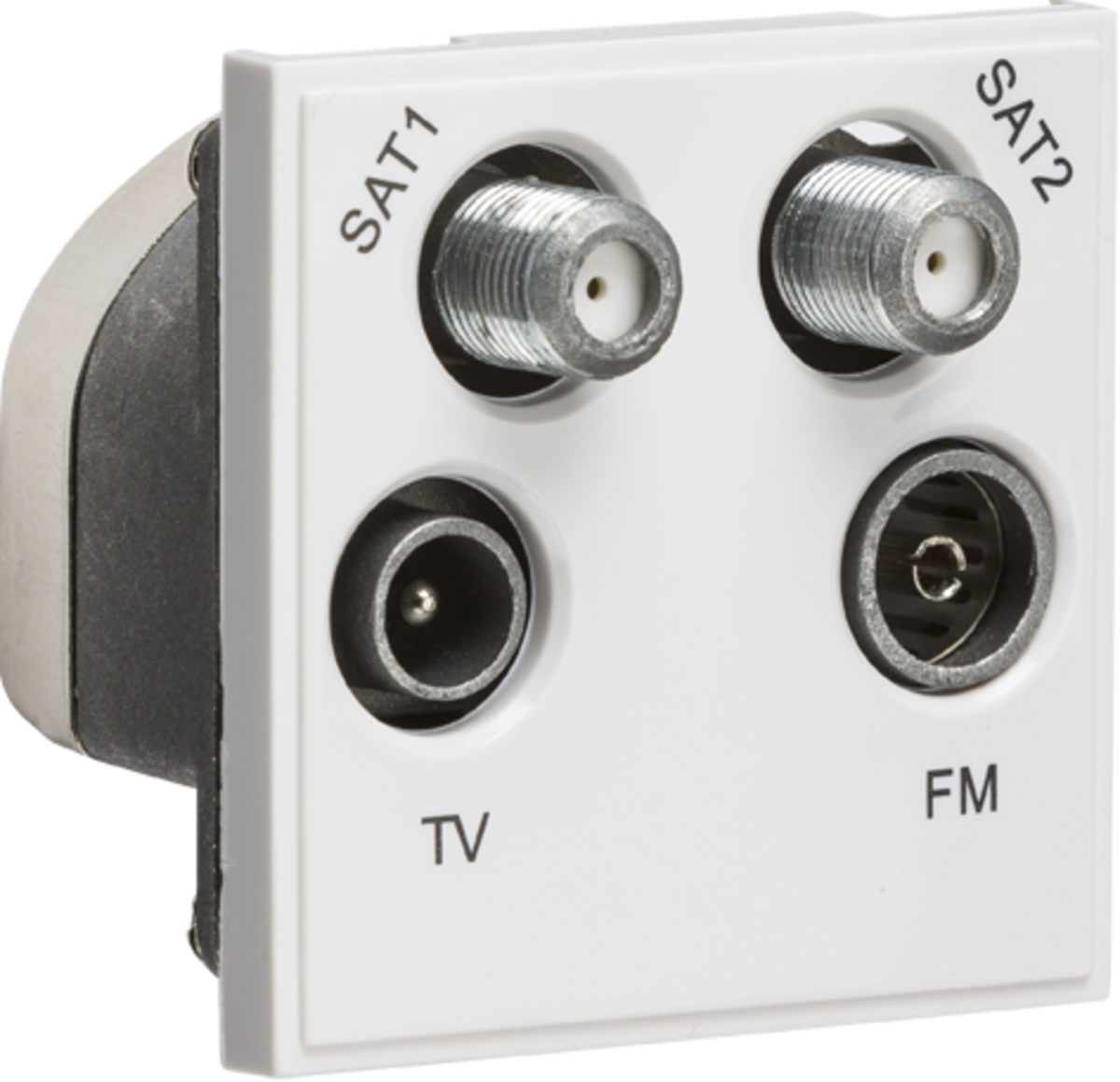

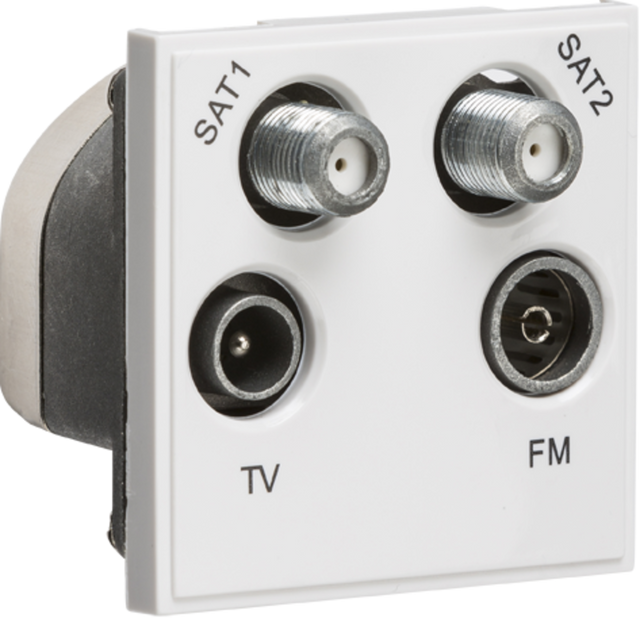

Knightsbridge: NETQDWH, Quadplexed SAT1/SAT2/TV/FM DAB Outlet Module, 50 x 50mm, White, Clamp & Screw Terminal, IP20

Product Overview & Key Benefits

Introducing theQuadplexed SAT1/SAT2/TV/FM DAB Outlet Module, an exceptional wiring accessory designed to support seamless connections for theSky™ and Sky+™systems. This compact outlet module, measuring50 x 50mm, provides outstanding low-loss performance and efficient isolation capabilities, making it an ideal choice for both professional and DIY applications.

Technical Specifications & Product Details

• Finish:White

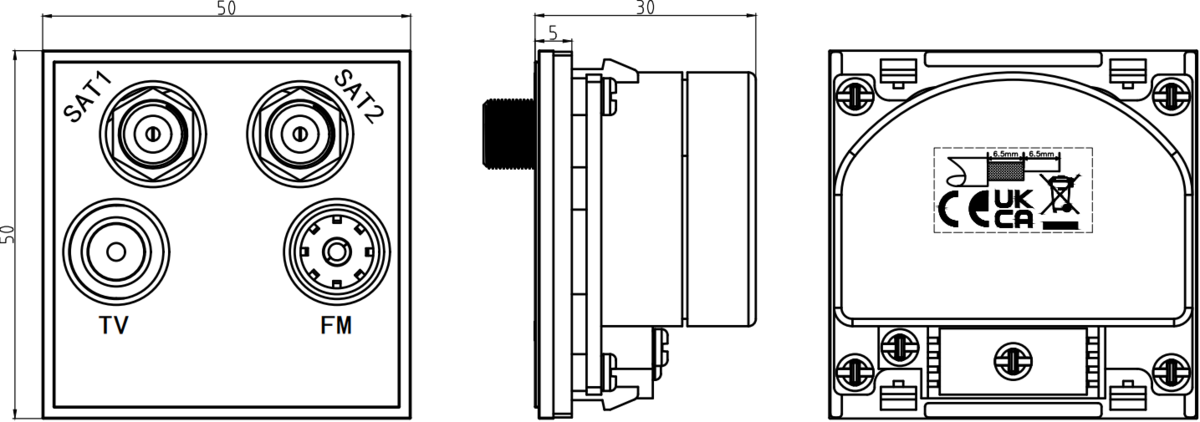

• Dimensions:50mm Width x 50mm Height x 31mm Recessed Depth
• Minimum Mounting Box Depth:35mm
• IP Rating:IP20
• Construction Material:ABS
• Terminal Type:Clamp & Screw Terminal
• Compatible Cables:1mm conductor cables (e.g., PF100, H109F, QF100)
• Connections:F-Type for SAT, Male for TV, Female for FM/DAB
• Compliance:Fully screened to EN 50083-2

Ideal Uses & Applications

This outlet module is perfect for various situations, including:

• Domestic installations for home entertainment systems
• Commercial applications in offices and retail settings
• Hospitality environments requiring robust audio-visual systems
• DIY projects where reliable connectivity for television and radio is needed

Energy Efficiency & Cost Savings

By enabling seamless connections with minimal signal loss, this module helps to improve the overall efficiency of your entertainment setup, leading to reliable performance and potentially lower energy costs when integrated into energy-efficient systems.
