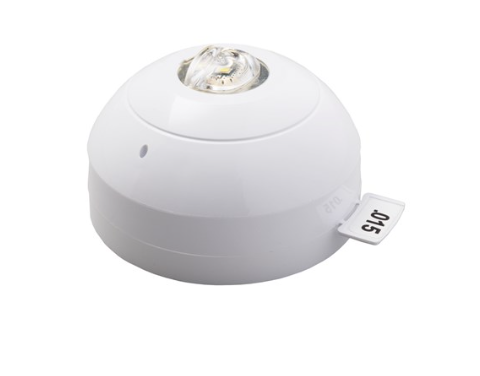

Apollo 55000-744APO VAD - Indoor Use
The Apollo 55000-744APO Loop Powered Visual Alarm Device (VAD) is designed to ensure alarms are heard and seen, particularly in environments with high background noise or where hearing impaired individuals are present.
- High intensity LED (white flash only)
- EN 54-23 Compliant Category W VAD
- Coverage W-2.4-6m
- Automatic LED check upon activation
- Flash rate of 0.5Hz
- Fault signal if LED check fails
- Locking mechanism (grub screw)
- Wide angle of visibility
- Synchronised flash rates with Apollo protocol
-
Download
- Apollo 55000-744APO
Specifications
Dimensions
Specifications
ITM No. | ITM002911 |
---|---|
Supply Voltage | 17-28 V DC |
Operating Temperature | -10°C to +55°C |
Flash Colour | White |
IP Rating | IP54 |
Weight | 0.105 KG |
Dimensions
Diameter | 100 mm |
---|---|
Height | 48 mm |
Apollo 55000-744APO VAD - Indoor Use features

Apollo Loop Powered Visual Alarm Device VAD, White Flash, High Intensity LED, IP54, EN 54-23 Compliant, 55000-744APO
