Advanced: MX-5101N, Fire Control Panel, 1 Loop Addressable, Nittan Evolution Protocol, EN54 Certified, ITM002790
Free Delivery
EN54 Approved
1 Loop Capacity
£
1,157
42
(Incl. VAT)
RRP: £1,256.35
Save £98.93

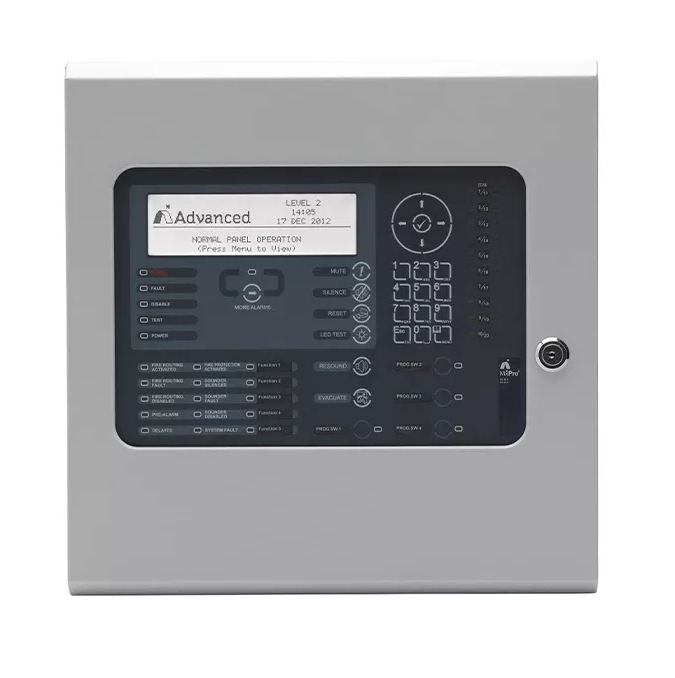

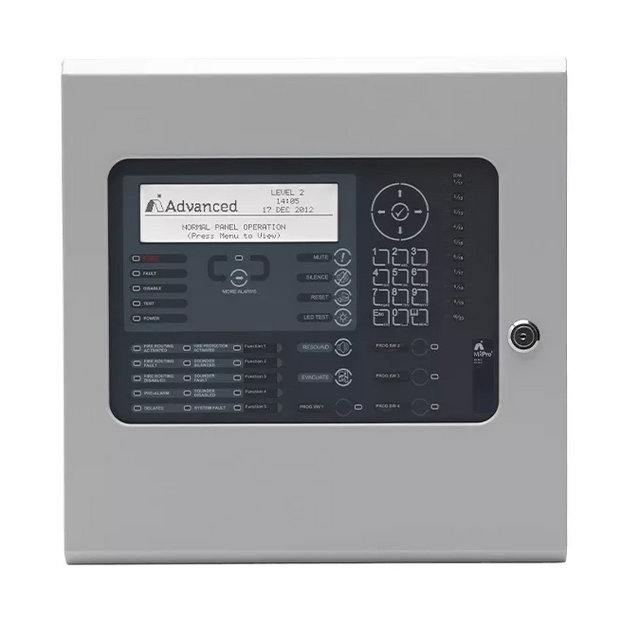

Advanced MX-5101N Fire Control Panel
About this product
About this product
The Advanced MX-5101N is a high-performance 1 loop addressable fire control panel designed for maximum safety and reliability.
- Protocol: Nittan Evolution
- Capacity: Up to 254 devices per loop and 200,000 devices per network
- Networking: Up to 200 nodes
- Monitoring: Built-in voltage and current meters
- Temperature Sensor: Optional remote battery temperature sensor available
- Management: 5000 event log entries with programmable false alarm management
- Certifications: Approved to EN54 Parts 2, 4 and 13
- Programming: Simple select and click programming
-
Download
- Advanced mx5100+ datasheet
£
1,157
42
RRP: £1,256.35
Save £98.93
Technical Details
Specifications
ITM No.
ITM002790
Type of Product
Fire Control Panel
Advanced-mx-5101n-features
Programmable LEDs
20 built-in, fully programmable
Zones Supported
Up to 2000 fire detection zones
Direct Communication
USB and RS232 PC connections
Backup Compatibility
Backward compatible with MxPro 4
Specifications
| ITM No. | ITM002790 |
|---|---|
| Type of Product | Fire Control Panel |
Advanced-mx-5101n-features
| Programmable LEDs | 20 built-in, fully programmable |
|---|---|
| Zones Supported | Up to 2000 fire detection zones |
| Direct Communication | USB and RS232 PC connections |
| Backup Compatibility | Backward compatible with MxPro 4 |
