Hochiki: ACC-EN, Analogue Multi-Sensor, 3 Modes, Optical & Thermal, LPCB Approved
About this product

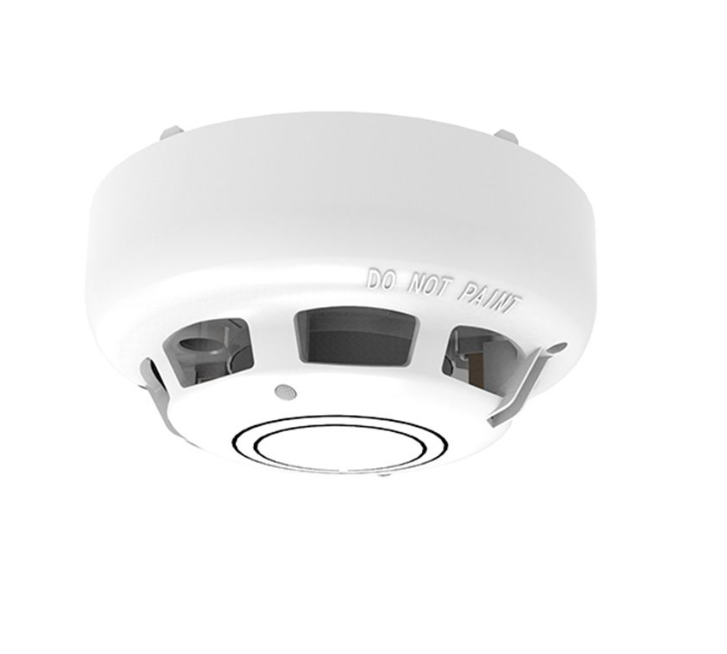

The Hochiki ACC-EN is a premium analogue multi-sensor designed for reliable fire detection capabilities. Below are its key features:
- Three selectable modes for flexible operation: optical, thermal, or both.
- Controlled via a compatible control panel for enhanced functionality.
- Visible LED indicators for easy status monitoring (green for polling, red for fire).
- Easily removable high-performance smoke chamber for low maintenance.
Perfect for both commercial and residential installations, it ensures optimal safety. Compliance with LPCB & VdS classes A1 & C guarantees high standards in fire safety. Always follow local installation guidelines.
-
        Download


- Hochiki ACC-EN
Specifications
User-selectable-modes
Led-indicators
Specifications
| ITM No. | ITM003046 |
|---|---|
| Operating Voltage | 17 – 41 V d.c. |
| Temperature Range | -10 °C to + 50 °C |
| Humidity Range | 95% RH (Non Condensing at 40 °C) |
| Weight | 0.095 kg |
| Material | White Polycarbonate |
| Dimensions | 100 mm diameter / 45 mm height |
| Approvals | LPCB & VdS approved |
User-selectable-modes
| Modes Available | Optical, Thermal, Both |
|---|
Led-indicators
| LED Functionality | Green when polling, Red in fire |
|---|
Hochiki ACC-EN Fire Sensor features
