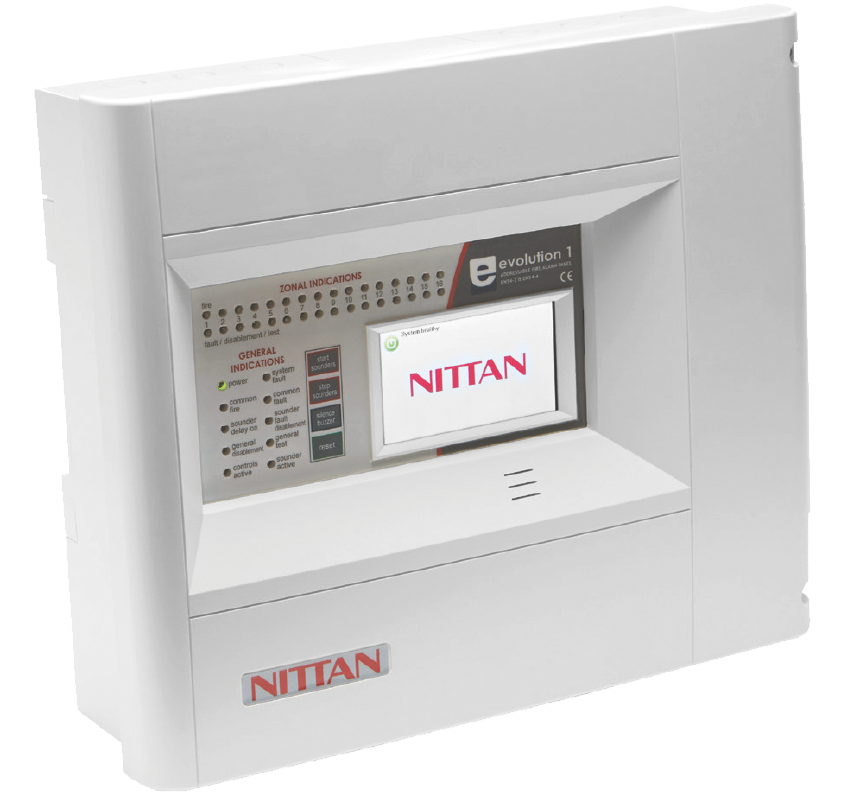

Nittan: Evolution1, Single Loop Touch Screen Fire Alarm Panel, 4.3 Inch Display, Remote Access, 254 Device Capacity
About this product
The Nittan “evolution 1” control panel provides complete compatibility with the award-winning range of Nittan evolution detection and alarm devices. This fire alarm panel is designed with the needs of both installer and end user in mind.
- 4.3 inch touch screen display for easy interaction
- Advanced configuration with onboard menu or PC tools
- Supports up to 254 devices in a loop
- Built-in network card for up to 16 interconnected panels
- Remote access via the Nittan Portal for enhanced security
- Attractive ABS enclosure with a removable front cover for installer ease
- Meets EN 54 part 2 and part 4 standards
-
        Download


- Nittan Evolution1
Specifications
Specifications
| Colour | White |
|---|---|
| ITM No. | ITM002151 |
| New Product | Yes |
| Manufacturer | Nittan |
| Type of Product | simple |
| Mains Supply | 230V AC (+10% / -15%) at 50/60 Hz |
| System Voltage | 24V DC (Nominal) |
| Loop Current | 500 mA |
| Sounder Output | 2 x 200 mA @ 24V DC |
| Loop Capacity | Up to 254 devices per loop |
| Enclosure Size | W 370 mm x H 311 mm x D 113 mm |
| Weight | 2.7 kg without batteries (7.35kg with batteries) |
Nittan Evolution 1 Touch Screen Panel features







Nittan: Evolution1, Single Loop Touch Screen Fire Alarm Panel, 4.3 Inch Display, Remote Access, 254 Device Capacity
