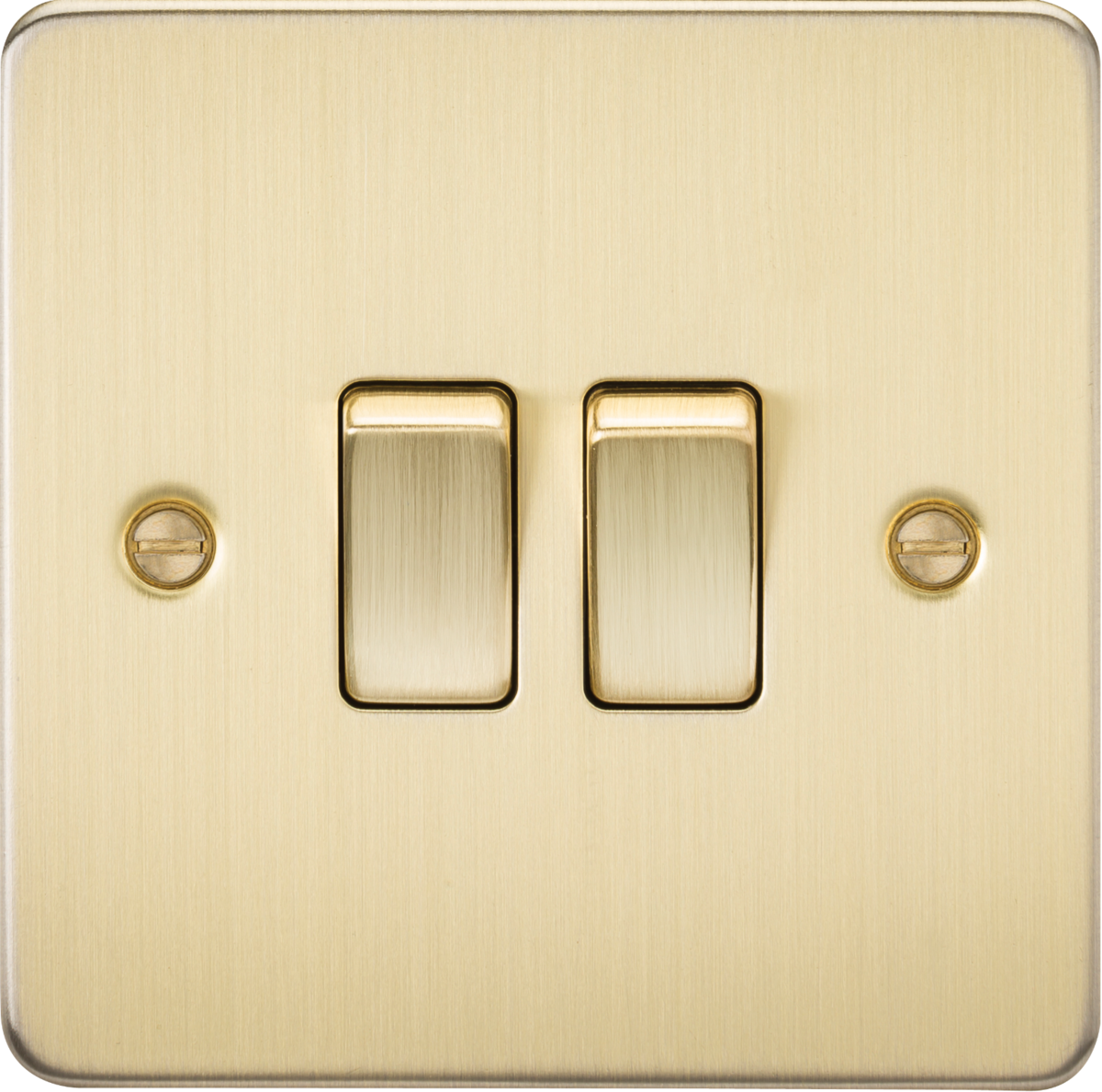

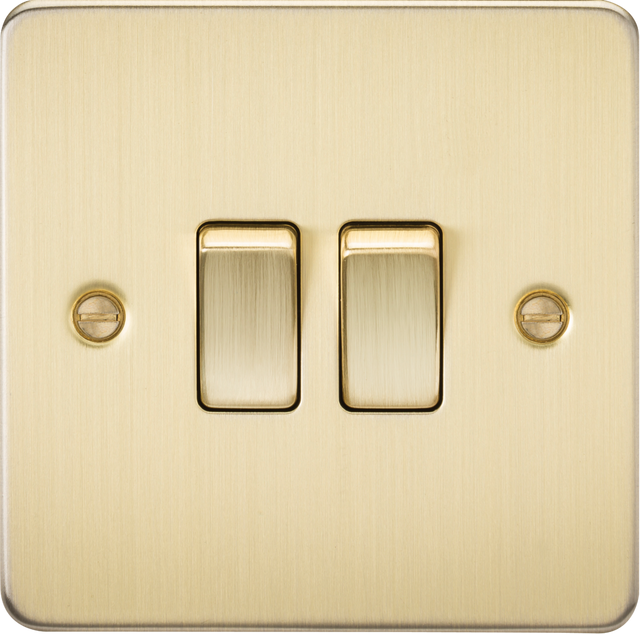

Knightsbridge: FP3000BB, 10AX 2G 2-Way Flat Plate Switch, Ultra-Low Profile, Brushed Brass, 230V, 10A
About this product
The perfect finishing touch to any modern home, the 10AX 2G 2-Way Switch in Brushed Brass features an ultra-low profile flat plate metal design with a matching rocker.
- 10AX rated
- Ultra-low profile flat plate design with built-in gasket
- Certified to EN 60669-1
- Minimum mounting box depth of 16mm
10AX 2-way switches are generally used when there are two entrances to a room, allowing control of the lighting from either location.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Brushed Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

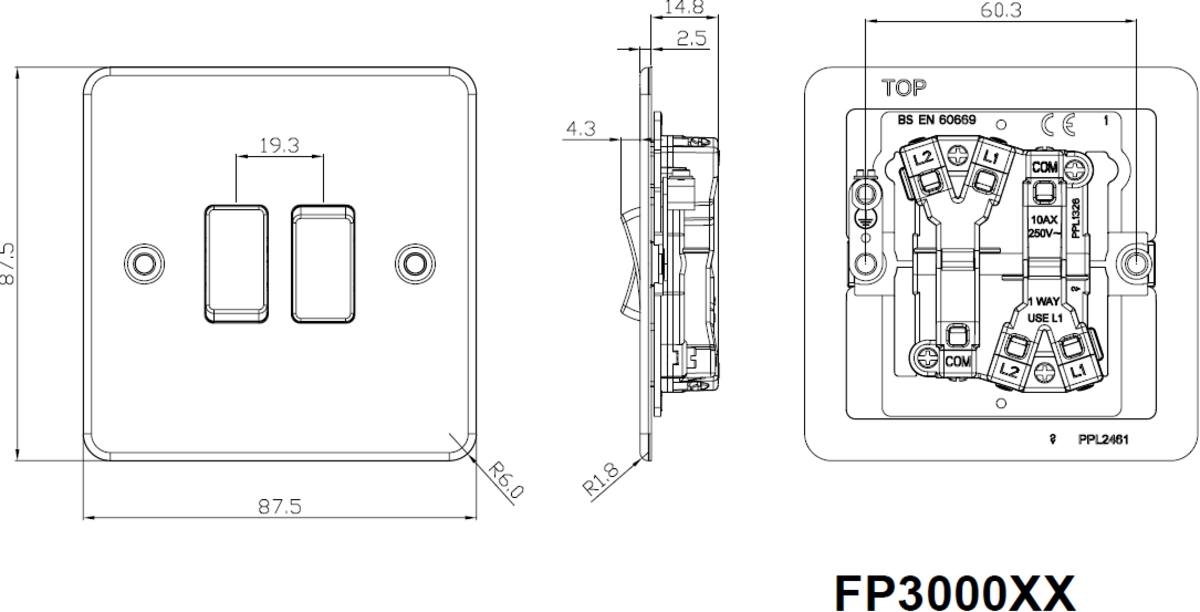

Dimensions
| Width | 87.5 mm |
|---|---|
| Height | 87.5 mm |
| Projection | 2.5 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|
10AX 2G 2-way Flat Plate Switch - Brushed Brass features
