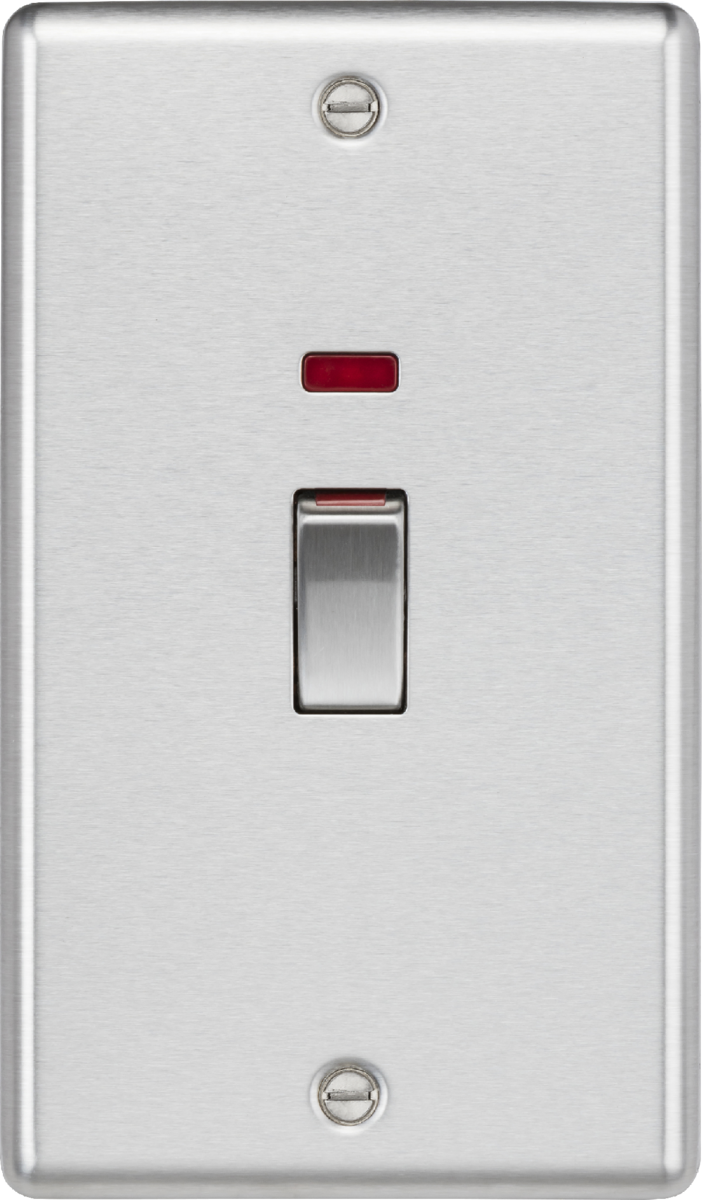

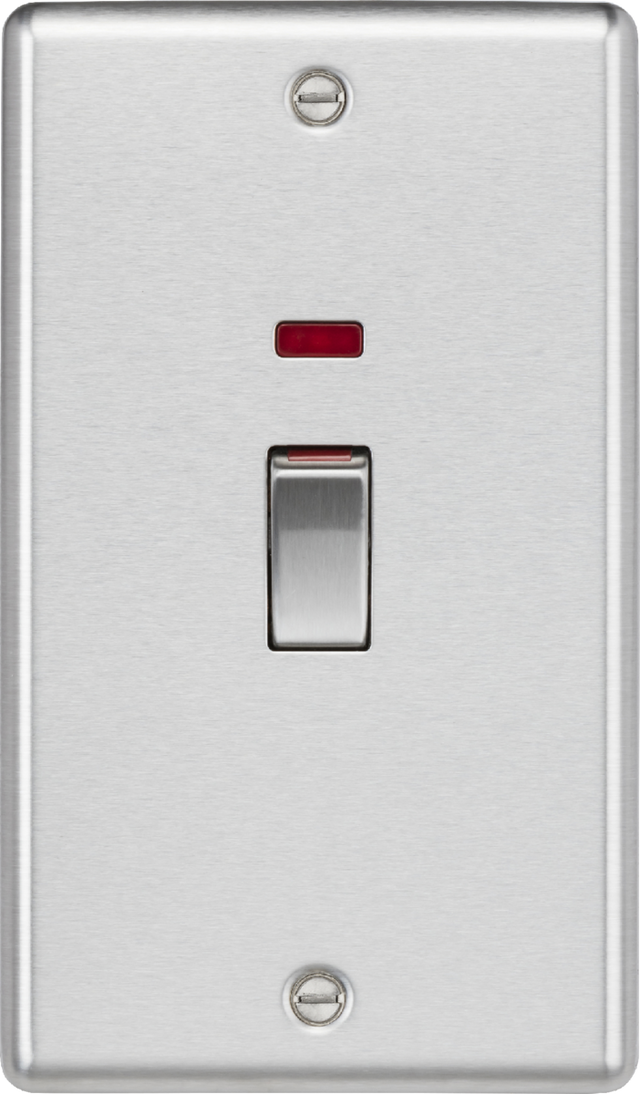

Knightsbridge: CL82MNBC, 45A DP Switch with Neon, Double Pole, Brushed Chrome Finish, Rounded Edges, 230V, IP20
About this product
The 45A DP Switch with Neon in Brushed Chrome is essential for cooker control, enabling safe isolation and preventing accidental usage during maintenance.
- Rated 45A, double pole
- Features a neon indicator
- Rounded edge design with a built-in gasket
- Requires a minimum mounting box depth of 47mm
This switch provides safety, functionality, and modern aesthetics, ensuring compliance with UK electrical standards.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Brushed Chrome |
| IP Rating | IP20 |
| Construction | 304 Stainless steel |
| Primary Voltage | 230V 50Hz |

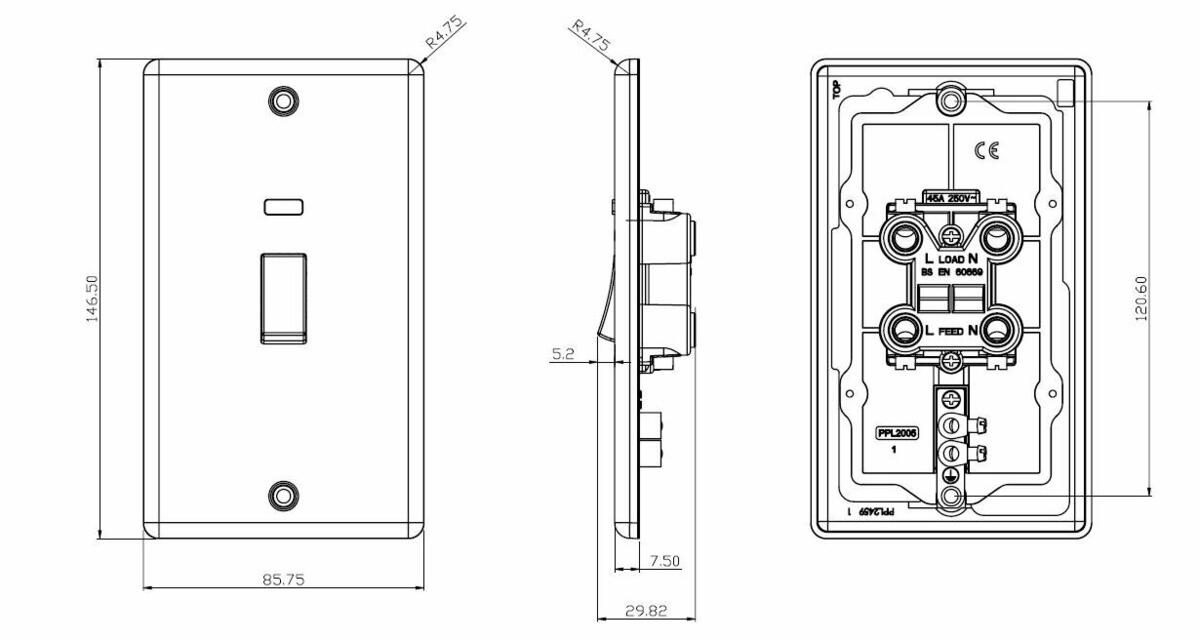

Dimensions
| Depth | 29.82 mm |
|---|---|
| Width | 85.75 mm |
| Height | 146.5 mm |
| Projection | 12.7 mm |
| Plate Depth | 7.5 mm |
| Min. Mounting Box Depth | 47mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | Yes |
45A DP Switch with Neon - Brushed Chrome features
