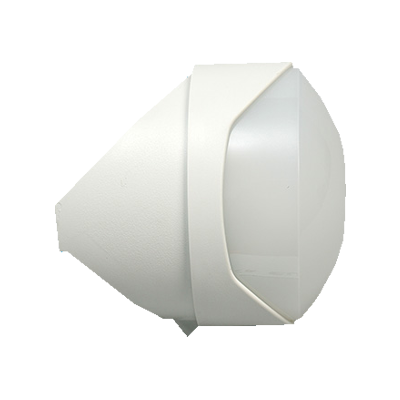

GJD023 Elite External PIR Detector (IP55, 35m)
The External PIR Detector is designed for optimal motion detection with the following features:
- IP Rating: IP55 rated for outdoor use.
- Detection Range: Programmable detection range of up to 35m.
- Coverage Angle: 90° detection angle offering maximum coverage.
- Adjustable Positioning: 180° pan and 90° tilt for tailored installation.
- Mounting Height: Optimal installation at 3m height, supports a maximum height of 6m.
- Lux Level Adjustable: Settings for dusk (2 Lux) to 24-hour activation.
- Durable Housing: Made of high-impact ABS for longevity.
- Operating Temperature: Functions effectively between -20°C to +55°C.
This detector is particularly suitable for outdoor lighting systems needing a timed activation based on movement.
-
Download
- GJD-ELITE manual
- GJD-ELITE spec
Specifications
Features
Specifications
Manufacturer | GJD |
---|---|
Voltage Input | 9 to 15 VDC |
Current Draw | 10 mA (12V nominal) |
Operating Temperature | -20 to +55 °C |
Protection Rating | IP55 |
Mounting Height | Up to 6m |
Detection Range | 10 to 35m |
Adjustment | 180° pan, 90° tilt |
Lens Type | 36 zone sensitive lens |
Features
Detection Area | Up to 750 sq. metres |
---|---|
Alarm Output | Open collector negative switching - 25mA max |
Masking Tape | Included |
Lux Level | Adjustable from 2 Lux to 24 hour |
Fresnel Lens | Digital sensitivity adjustment |
