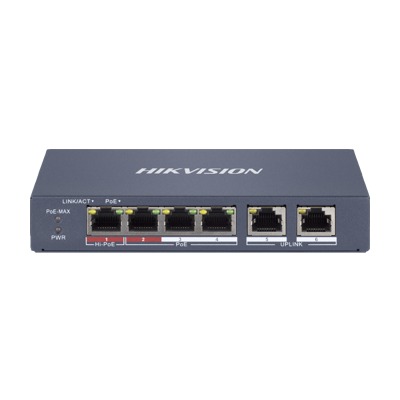

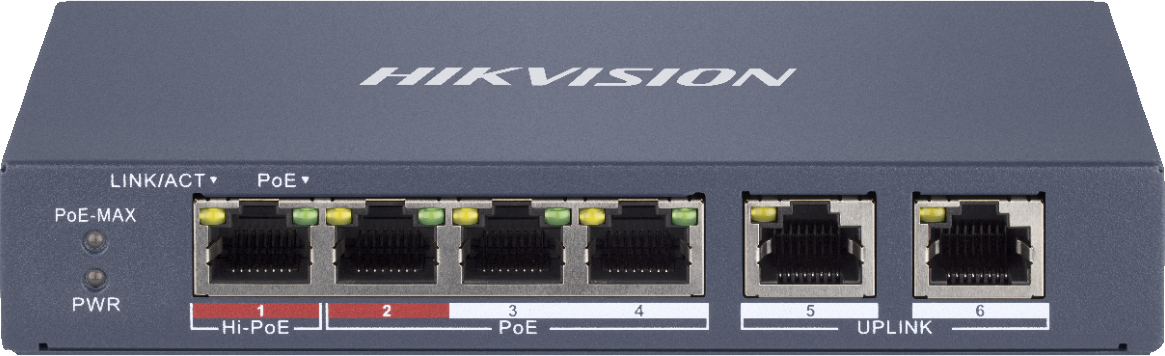

HikVision: DS-3E1106HP-EI, 4-Port Fast Ethernet Smart Managed PoE Switch, 100Mbps, 6 KV Surge Protection, Long Range 300m
About this product
The Hikvision 4-Port Fast Ethernet Smart POE Switch offers reliable performance and features for effective network management. Ideal for surveillance systems, this switch includes:
- 4 × 100 Mbps PoE RJ45 ports and 2 × 100 Mbps network RJ45 ports
- IEEE 802.3at/af/bt standard for PoE ports
- 6 KV surge protection for PoE ports ensuring device safety
- Up to 300 m long-range transmission capabilities, perfect for extended networks
- Network topology management and alarm push features for effective monitoring
This switch is designed for both residential and commercial applications, providing seamless connectivity and reliability for all your network needs.
Specifications
Dimensions
Technical-details
Specifications
| Ports | 4 |
|---|---|
| Manufacturer | Hikvision |
| Max Transmission | 300 m |
| Surge Protection | 6 KV |
| Power Supply | 48 VDC, 1.35 A |
Dimensions
| Width | 145 mm |
|---|---|
| Height | 25.6 mm |
| Depth | 68.45 mm |
Technical-details
| Forwarding Mode | Store-and-forward switching |
|---|---|
| Operating Temperature | -10°C to 55°C |
| Weight | 0.245 kg |
