Product Overview & Key Benefits

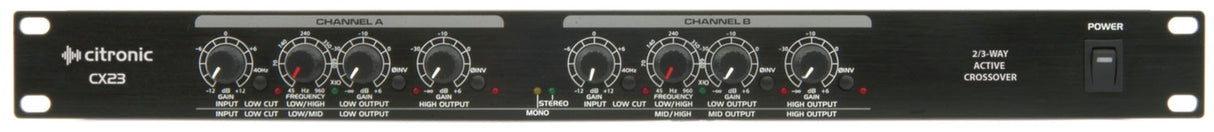

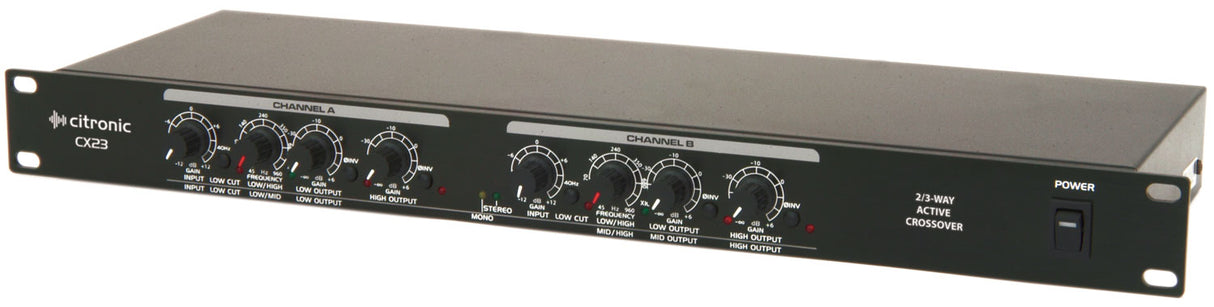

The Active Crossover - 2 / 3 Way, model CX23, is a cutting-edge audio processing device designed specifically for audio professionals and audiophiles. By efficiently splitting frequencies into low and mid/high sections, the device ensures that each part of the audio spectrum is delivered to the appropriate amplification source. This results in more precise and clearer sound, making it an ideal addition to larger PA systems. Whether you are setting up a concert, a commercial venue, or even a sophisticated home audio system, this active crossover provides the necessary functionality and performance enhancements. Its ability to adapt to both stereo and mono configurations makes it versatile and suitable for diverse applications.

Technical Specifications & Product Details

• Model:CX23
• Type:2-way stereo / 3-way mono active crossover
• THD:0.006%
• Weight:2.5 Kg
• Dimensions:482 x 44 x 170 mm
• Filter Slope:Butterworth filters, 18dB/octave
• Power Supply:115/230Vac, 50/60Hz (IEC)
• Output Impedance:220 Ohms
• Frequency Response:20Hz-25kHz +0/-1dB
• Signal to Noise Ratio:>90dB
• Crossover Ranges:
• Mono:50Hz-5kHz; 750Hz-7.5kHz; 2kHz-20kHzStereo:50Hz-5kHz; 750Hz-7.5kHz
• Input Impedance:
• Balanced:40k OhmsUnbalanced:20k Ohms
• Phase Invert Function:Yes

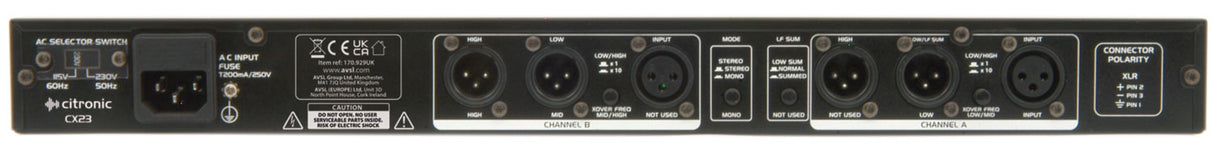

• Inputs and Outputs:Via XLR

Ideal Uses & Applications

The Active Crossover - 2 / 3 Way is perfect for a variety of applications. In domestic settings, it is ideal for enhancing home theatre systems, delivering an immersive audio experience for film and music lovers. For commercial use, it excels in live sound situations, whether for concerts, corporate events, or public speaking venues. This crossover is also a valuable asset in hospitality settings, ensuring high-quality sound for restaurants, bars, and clubs. Its robust design and reliable performance make it suitable for permanent installations in commercial buildings, as well as flexible enough to be used in mobile audio setups.

Energy Efficiency & Cost Savings

Efficiency is one of the standout features of the Active Crossover - 2 / 3 Way. By directing specific frequency ranges to appropriate amplifiers, this device not only optimises sound quality but also enhances the overall performance of your audio system. This leads to reduced energy consumption and, consequently, lower electricity bills. Users can expect to experience both an enriched sound profile and significant long-term savings, making this crossover an economical choice for both personal and professional audio setups.
