Citronic: 172.103UK, D-Series Class-D Power Amplifier, 2 x 150W RMS, Lightweight 1U Rack Mount

Product Overview & Key Benefits

The D-Series Class-D Power Amplifiers are the ultimate choice for professionals looking for reliable and high-performance amplifiers. With a lightweight 1U rack-mountable design, this power amplifier is engineered to efficiently convert electricity into impactful audio, making it ideal for driving medium to large speaker cabinets. The Class-D architecture not only ensures outstanding audio quality but also enhances energy efficiency, making it a perfect solution for sound reinforcement in both commercial and domestic settings.

Designed with versatility in mind, the D-Series features options for parallel and bridge modes coupled with selectable input levels and a 75Hz low-cut filter. This ensures it can adapt to various setups and environments, making it suitable for those who demand exceptional sound quality without compromising on space or weight. Whether in a studio, live venue, or events space, this amplifier delivers consistent, powerful performance.

Technical Specifications & Product Details

• Model:D-Series Class-D Power Amplifier
• Supplier SKU:172.103UK
• Variant:2 x 150Wrms
• Fuse:T6.3A (20 x 5mm)
• Modes:Stereo, Parallel (mono), Bridge (mono)
• Weight:3.50kg
• Dimensions:482 x 245 x 44mm
• Power Supply:220-240Vac, 50/60Hz (IEC)
• Low-Cut Filter:75Hz switchable

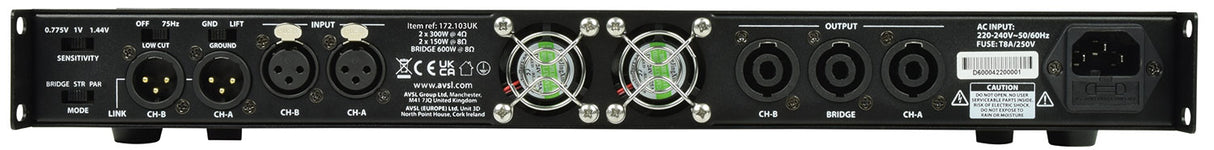

• Input Connections:L+R XLR female (L+R XLR male through)
• Input Sensitivity:0.775V - 1.0V - 1.44V switchable
• Output Connections:L+R SPK connectors (+1 for bridge mode)
• Power RMS @ 4 Ohms:2 x 150W
• Power RMS @ 8 Ohms:2 x 75W
• Bridge Power @ 8 Ohms:1 x 300W

Ideal Uses & Applications

The D-Series Class-D Power Amplifiers are perfect for a wide range of applications. Its compact design and lightweight nature make it an excellent choice for:

• Domestic DIY:Perfect for home audio systems where high fidelity sound is desired without the need for bulky equipment.
• Commercial Buildings:Suitable for integrating into sound systems for offices and conference rooms, providing clear audio during presentations.
• Hospitality Settings:Ideal for bars, restaurants, and hotels where ambient sound or music needs to fill the space.
• Live Events:Essential for live musicians and DJ setups, providing the power needed to drive professional speaker systems.

Energy Efficiency & Cost Savings

Utilising a Class-D circuit design, the D-Series Power Amplifiers boast impressive energy efficiency while delivering powerful audio performance. This means lower electricity consumption, allowing users to:

• Reduce energy bills:Enjoy potential savings of up to 50 percent on electricity costs compared to traditional amplifiers.
• Minimise heat generation:Benefit from cooler operation, resulting in prolonged life of the amplifier and connected equipment.

Investing in the D-Series Power Amplifiers not only enhances audio quality but also promotes sustainability, making it an eco-friendly option for both commercial and domestic use.
