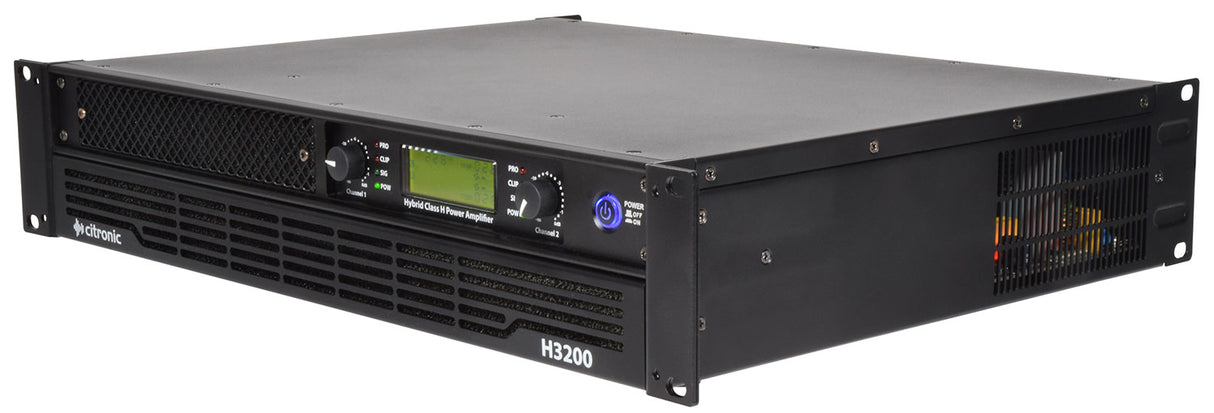

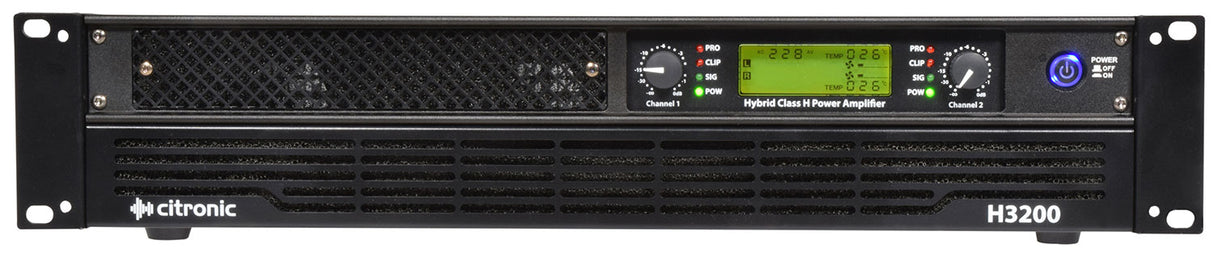

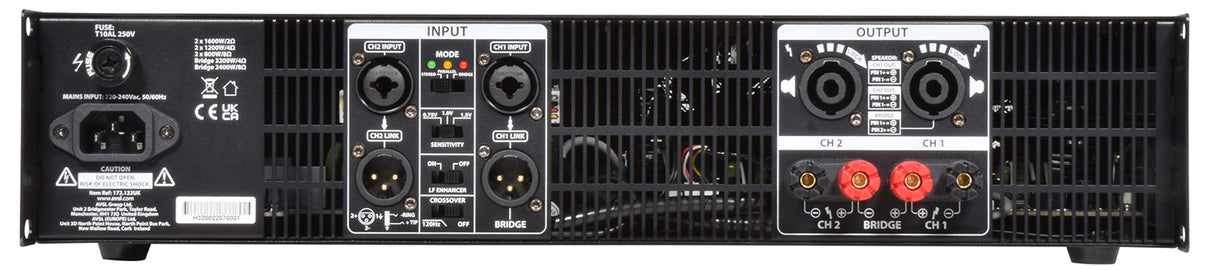

Citronic: 172.132UK, Hybrid Class-H Power Amplifier, 2 x 1600W @ 2 Ohms, Rack-Mountable

Product Overview & Key Benefits

TheHybrid Class-H Power Amplifiersare an exceptional choice for sound reinforcement in medium to large settings. Designed with a focus on delivering high sound pressure levels, these lightweight amplifiers fit neatly into a19-inch rack-mountable housing. Perfect for sound contractors and PA installers, the H-series amplifiers provide a reliable solution that combines efficiency, stability, and outstanding sound quality.

Technical Specifications & Product Details

• Model Variants:2 x 1600W @ 2 Ohms, 2U
• Fuse:T10AL 250V
• THD + N:0.2%
• Weight:8.9kg
• Crossover:Switchable full range or fixed 120Hz low-pass filter
• S/N Ratio:-95dB
• Dimensions:483 x 361 x 88 mm (2U)
• Protection Features:Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush
• Power Supply:200-240Vac, 50Hz (IEC)
• Damping Factor:>700
• Input Impedance:20KΩ (balanced), 10KΩ (unbalanced)
• Input Sensitivity:1.0V - 1.4V - 2.0V switchable
• Frequency Response:20Hz-20KHz ±0.5dB
• Power RMS @ 2 Ohms:2 x 1600W (40ms burst 1kHz sine)
• Power RMS @ 4 Ohms:2 x 1200W
• Power RMS @ 8 Ohms:2 x 800W
• Amplifier Construction:Hybrid Class-H
• Power RMS Bridge @ 4 Ohms:3200W (40ms burst 1kHz sine)
• Power RMS Bridge @ 8 Ohms:2400W

Ideal Uses & Applications

These amplifiers are suited for a diverse range of applications, making them invaluable for:

• Domestic DIY:Ideal for home audio systems, enhancing both music and movie experiences.
• Commercial Buildings:Suitable for presentations, announcements, and background music in retail spaces and offices.
• Hospitality Settings:Perfect for restaurants, bars, and event venues where quality sound is paramount.
• Live Events:Dependable for concerts and performances that require robust audio output.

Energy Efficiency & Cost Savings

With itshybrid class-H design, this amplifier stands out for its energy efficiency. By optimising power usage, it can lead to significant savings on electricity bills. Users can expect to save up to 50 percent in energy costs when compared to traditional amplification systems. Additionally, the integrated features such as the switchable low-pass filter eliminate the need for external crossovers, thus reducing overall system costs and installation complexity.
