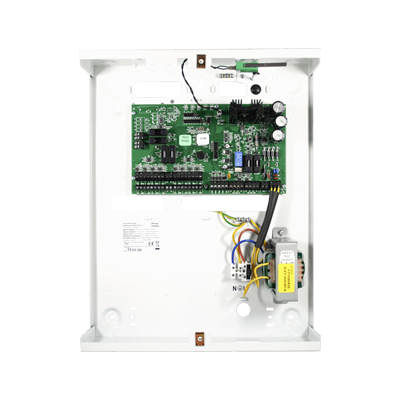

WME: EURO-ZEM8+PSU, 8 Zone Expander with PSU, 2.5A Power Supply, RS485, EN50131-1 Compliant
About this product
The 8 Zone Expander with PSU offers a reliable solution for expanding your alarm system with the following features:
- 8 Double Pole or Double EOL Zone Expander with 3 EOL
- 4 Transistor outputs available
- Integrated 2.5A power supply
- RS485 Expander support
- Complies with EN50131-1 for enhanced security standards
This unit is ideal for upgrading existing security systems to manage multiple zones effectively, providing versatility for both residential and commercial applications.
-
Download
- EURO-ZEM8 spec
Specifications
Technical-characteristics
Specifications
| Colour | White |
|---|---|
| Manufacturer | Pyronix |
| Input Voltage | 10.5V to 15V DC |
| Operating Temperature | -10 to +40 °C |
| Physical Dimensions | 173 x 126 x 31 mm |
| Weight | 0.26 kg |
Technical-characteristics
| Tamper Protection | Yes |
|---|---|
| Total Inputs | 8 |
| Outputs on Board | 4 |
8 Zone Expander with PSU features
