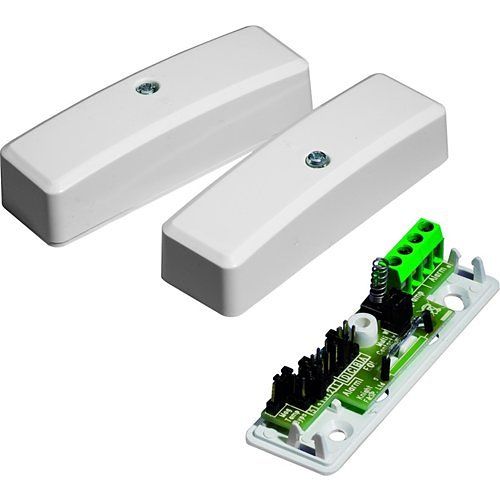

Knight Fire YEND74 Grade 3 Contact
The Knight Fire YEND74 Grade 3 Contact is the perfect solution for ensuring your security systems are robust and reliable. Here are its key features:
- G3 Surface Contact with Magnetic Interference Detection
- Compatible with all mainstream UK control panels
- Includes both EOL and alarm by-pass resistor options
- Double door contacts suitable for installation at a 90-degree angle
- TACT Microswitch tamper for added security
- Environmental Class 2
- Approximate Dimensions: 78mm x 25mm x 20mm
- Colour: White
With its easy installation and compatibility with various control panels, this contact is essential for security professionals and DIY enthusiasts alike.
-
Download
- YEND74
Specifications
Dimensions
Specifications
ITM No. | ITM002087 |
---|---|
Type of Product | simple |
Environmental Class | Class 2 |
Material | White ABS plastic |
Temperature Range | -40 to +50 °C |
Electric Rating | 500mA Max DC, 500mA Max AC |
Dimensions
Length | 78 mm |
---|---|
Width | 25 mm |
Height | 20 mm |
Knight Fire YEND74 Grade 3 Contact features

Knight Fire YEND74 Grade 3 Contact with Magnetic Interference Detection, Selectable Resistors, 78mm x 25mm x 20mm, White
