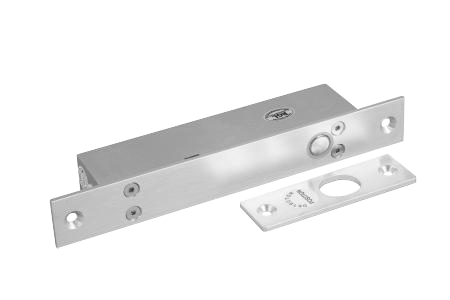

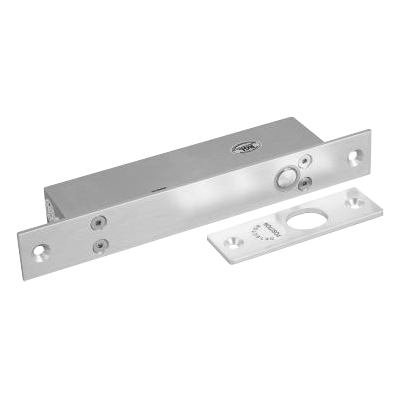

WME: SB-235, Solenoid Bolt, 12V DC, Fail-Safe, 1000kg Holding Force
About this product
The Solenoid Bolt is a reliable locking mechanism perfect for securing wooden doors with technology that ensures fail-safe operation.
- Operating voltage: 12V DC
- Standby current: 100mA
- Operating current: 150mA
- Holding force: 1000kg
- Concealed fitting option: Can be fitted flush for a discreet appearance
- Delay timer: 0, 3, or 6 seconds available
- Monitored output: Ensures door status is relayed
Ideal for both residential and commercial applications, ensuring enhanced security.
-
Download
- SB-235 spec
Specifications
Dimensions
Technical-specifications
Specifications
ITM No. | ITM001191 |
---|---|
Manufacturer | RGL |
Type of Product | Simple |
Dimensions
Length | 200 mm |
---|---|
Width | 28 mm |
Height | 35 mm |
Technical-specifications
Operating Voltage | 12V DC |
---|---|
Standby Current | 100mA |
Operating Current | 150mA |
Initial Surge | 1.4A |
Holding Force | 1000kg |
Delay Timer | 0/3/6 seconds |
Suitable for | Wooden Doors |
Concealed Fitting | Yes |
Solenoid Bolt 12V DC - SB-235 features
