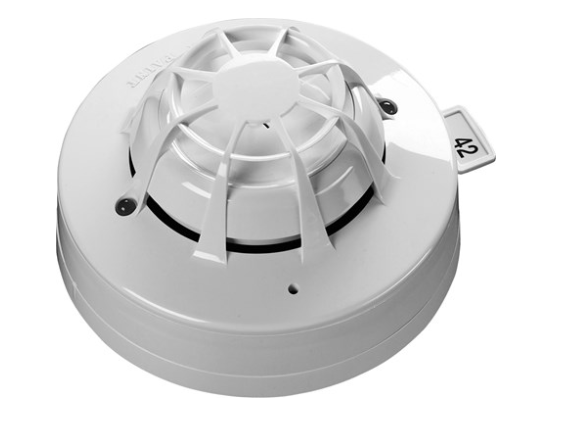

Apollo 58000-700APO Multi-Sensor Detector
The Apollo 58000-700APO Discovery Multi-Sensor Detector is designed for reliable fire detection with both smoke and heat sensors, making it perfect for areas with varied temperature levels, ranging from -40°C to +70°C.
- Prevents false alarms with five adjustable operating modes.
- Drift compensation ensures consistent sensitivity over time.
- Suitable for sensitive environments, offers an alternative to ionization detectors.
-
Download
- Apollo 58000-700APO
Specifications
Technical-information
Specifications
ITM No. | ITM002899 |
---|---|
Operating Voltage | 17 - 28 V dc |
Quiescent Current | 400 μA |
Dimensions | 100 mm diameter x 50 mm height |
Weight | 105 g |
Material | White flame-retardant polycarbonate |
Technical-information
Sensitivity Drift Compensation | Yes |
---|---|
Remote Test Feature | Yes |
Humidity Range | 0% to 95% RH (no condensation) |
Operating Temperature | -40°C to +70°C |
Storage Temperature | -40°C to +80°C |
Apollo 58000-700APO Multi-Sensor Detector features

Apollo Discovery Multi-Sensor Detector, 2-Wire, Optical/Heat, 400μA Quiescent Current, ITM002899
