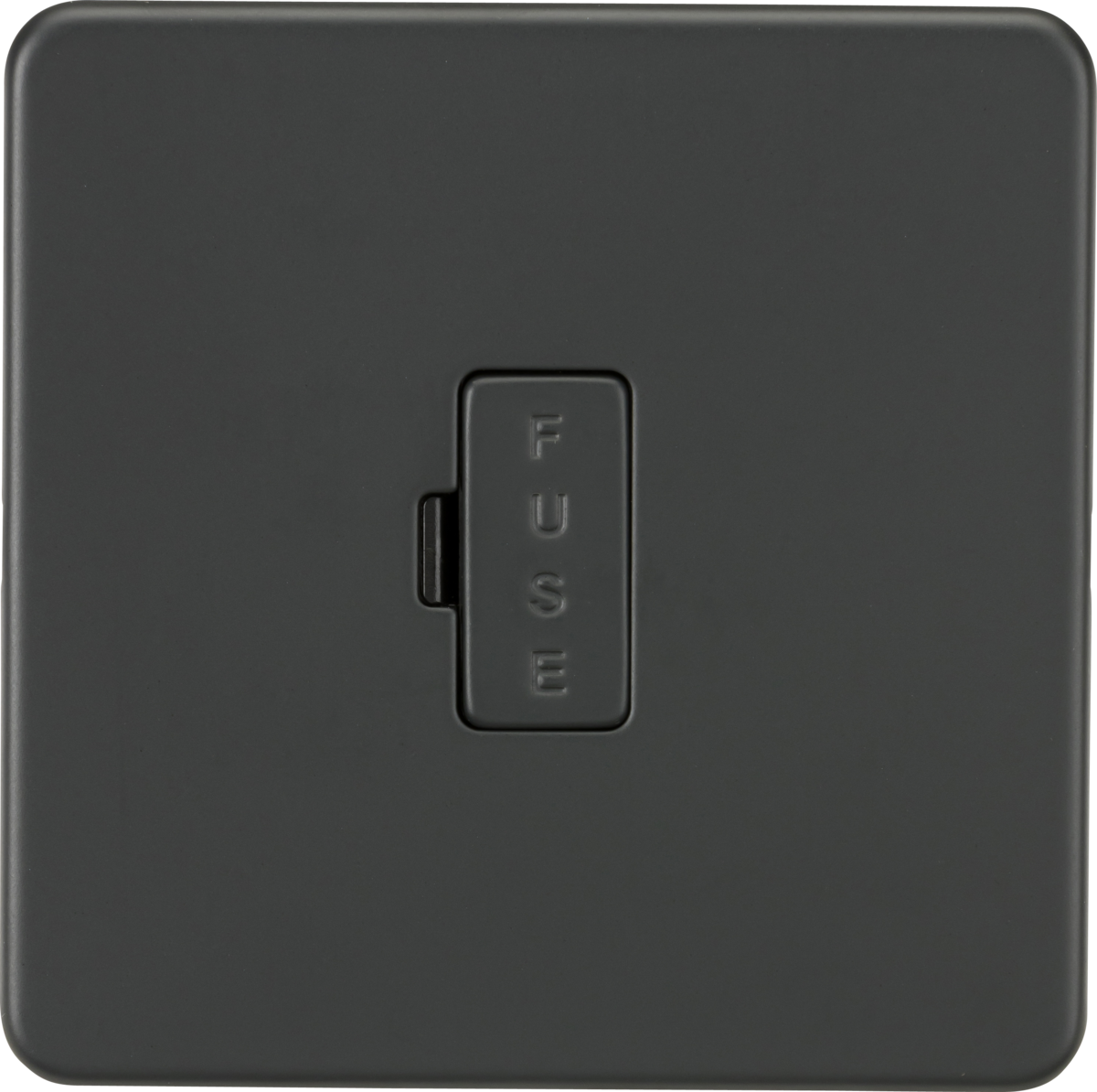

Knightsbridge: SF6000AT, 13A Fused Spur Unit, Anthracite, Screwless Low Profile, BS 1363-4 Certified, 87.5mm Width, 25mm Mounting Depth
About this product
The 13A Fused Spur Unit in Anthracite offers a seamless screwless low profile design, making it a perfect choice for modern installations. Key features include:
- 13A rated
- Screwless low profile design with built-in gasket
- Certified to BS 1363-4
- Minimum mounting box depth of 25mm
This unit is ideal for both DIY enthusiasts and commercial contractors, ensuring compliance with UK/EU regulations. Installation instructions should be followed closely for optimal safety and performance.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Anthracite |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

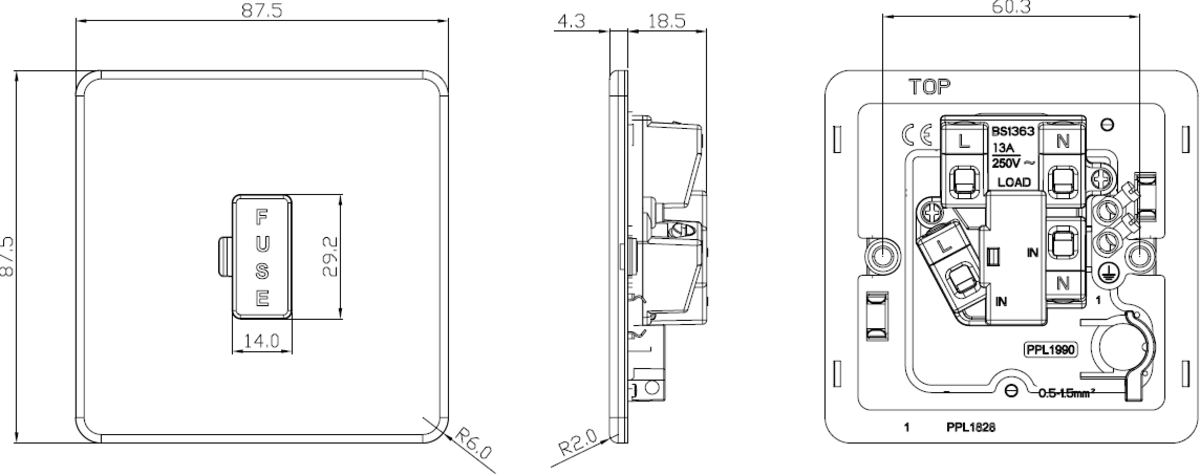

Dimensions
| Depth | 22.8 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 4.3 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 18.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | No |

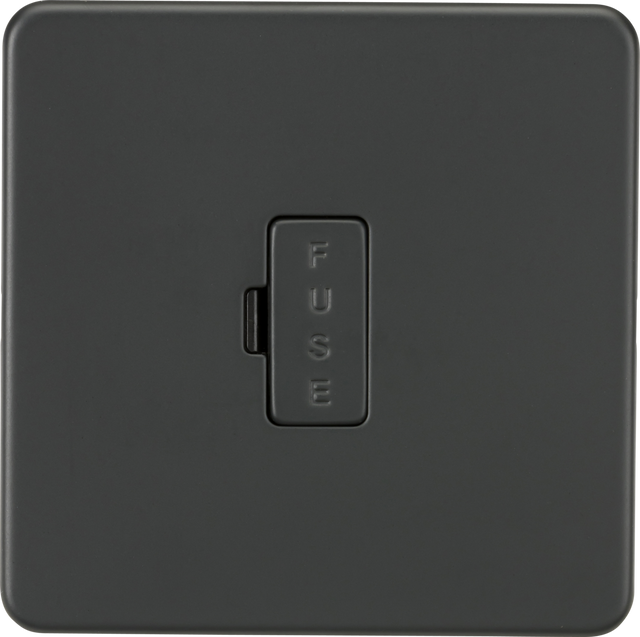

13A Screwless Fused Spur Unit - Anthracite features
Knightsbridge: SF6000AT, 13A Fused Spur Unit, Anthracite, Screwless Low Profile, BS 1363-4 Certified, 87.5mm Width, 25mm Mounting Depth
