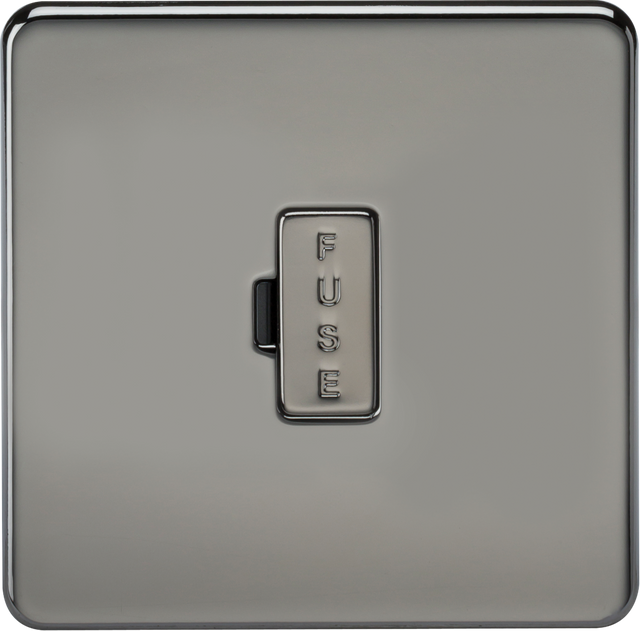

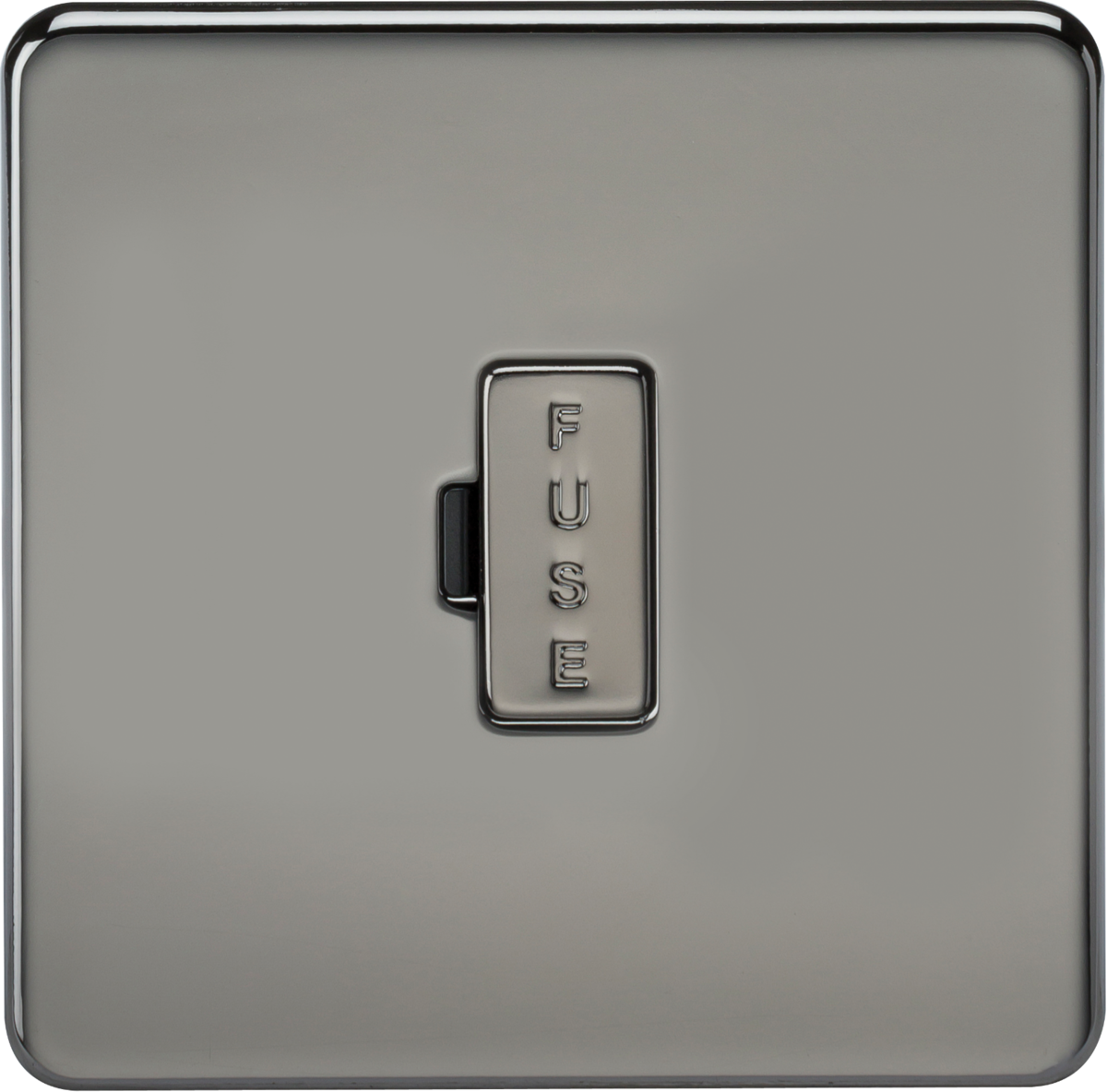

13A Fused Spur Unit - Black Nickel
The 13A Fused Spur Unit in Black Nickel is designed for a modern and elegant look while ensuring safety and reliability. Key features include:
- 13A rated for reliable performance
- Screwless low profile design with built-in gasket for a sleek finish
- Certified to BS 1363-4 standards for assurance
- Minimum mounting box depth of 25mm required
This unit is perfect for residential and commercial installations, ensuring compliance with UK standards.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Black Nickel |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

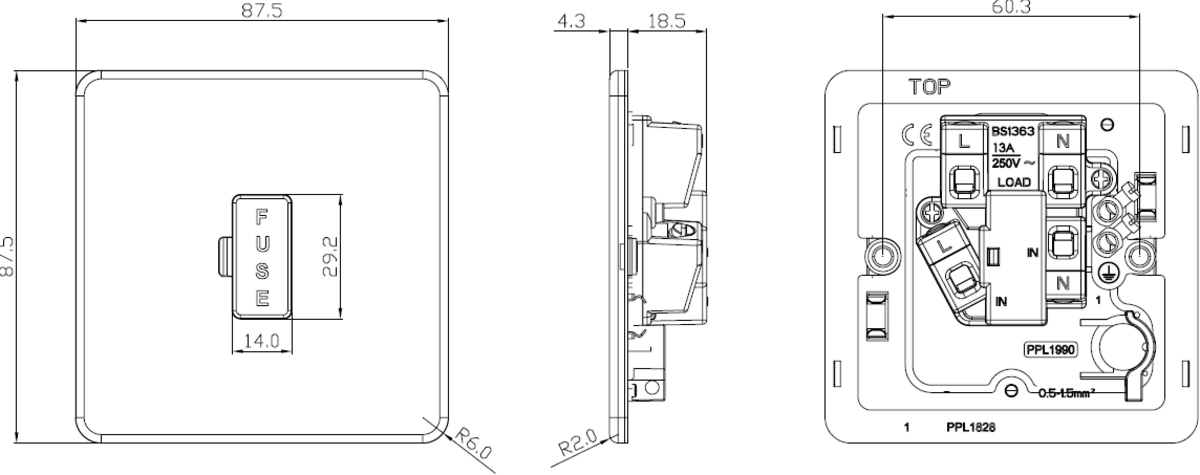

Dimensions
Depth | 22.8 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 4.3 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 18.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Neon Indicator | No |
13A Fused Spur Unit - Black Nickel features

Low Profile 13A Fused Spur Unit, Screwless Black Nickel Design, BS 1363-4 Certified, SF6000BN
