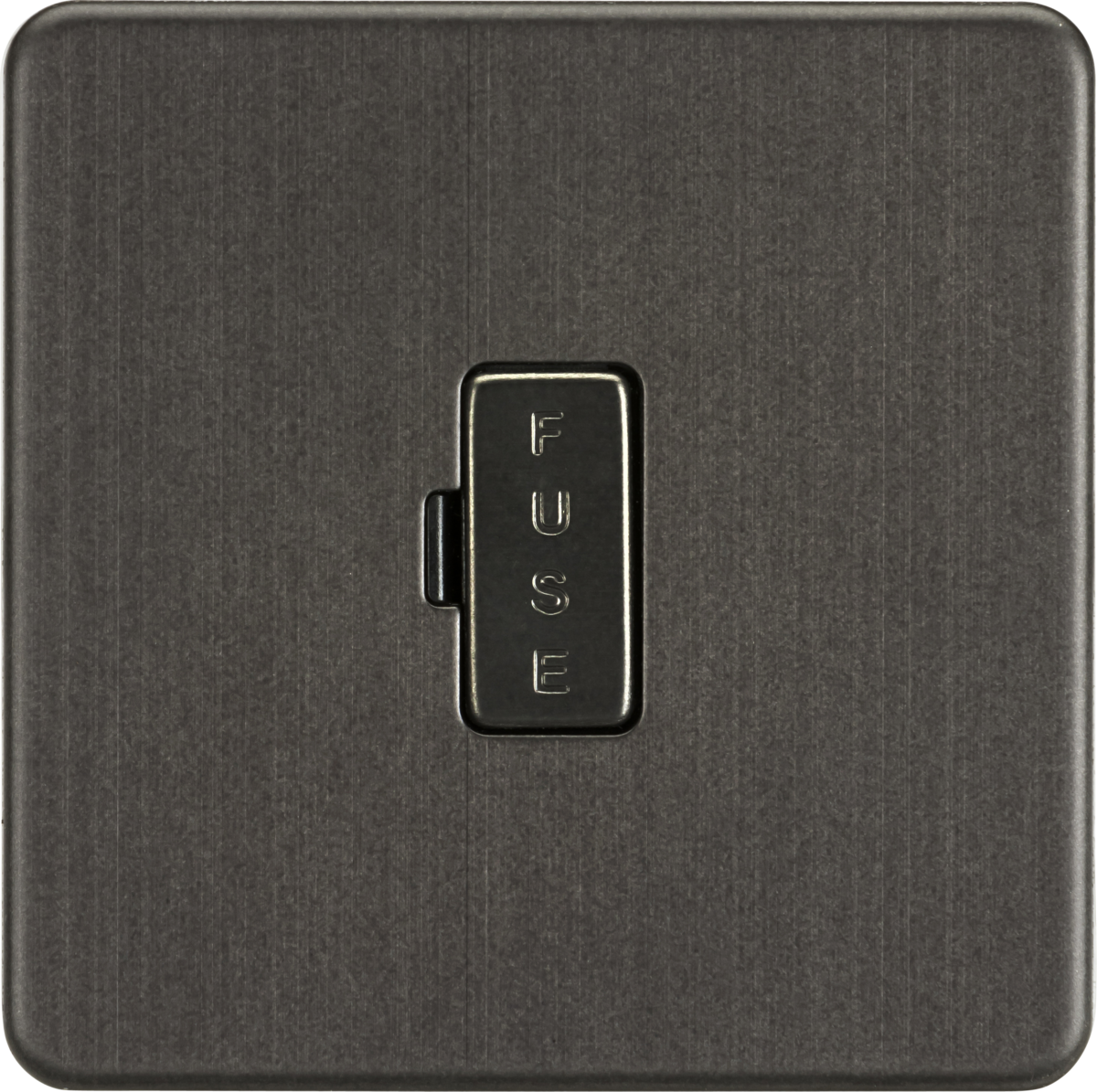

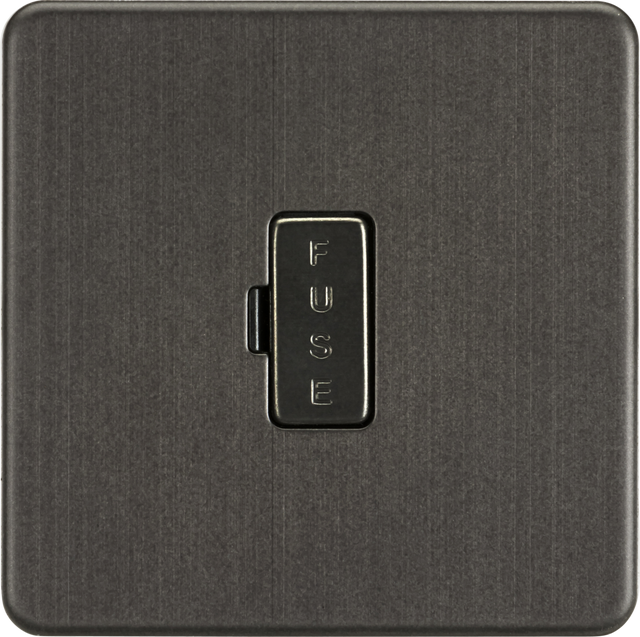

Smoked Bronze 13A Fused Spur Unit
Introducing the 13A Fused Spur Unit in Smoked Bronze, designed with a screwless low profile for seamless integration into your home or commercial spaces.
- Key Features:
- Designed for 13A rated installations
- Elegant smoked bronze finish
- Screwless design with built-in gasket for ease of installation
- Meets certification standards: BS 1363-4
- Minimum mounting box depth of 25mm
Perfect for both DIY and contractor installations, ensure you adhere to UK safety standards for electrical devices.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Smoked Bronze |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

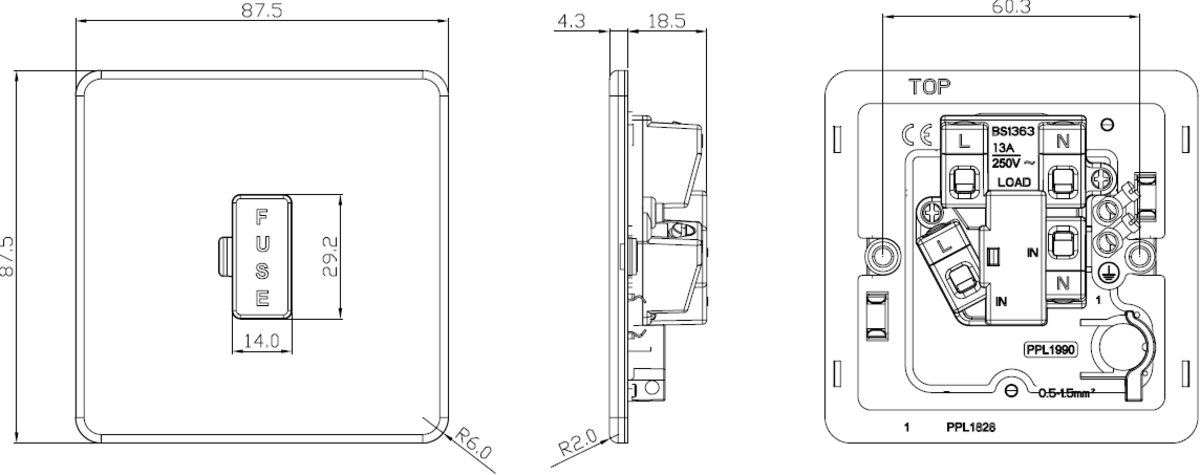

Dimensions
Depth | 22.8 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 4.3 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 18.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Neon Indicator | No |
Smoked Bronze 13A Fused Spur Unit features

13A Fused Spur Unit, Screwless Design, Smoked Bronze Finish, Low Profile, 87.5mm x 87.5mm, 25mm Mounting Box Depth, SF6000SB
