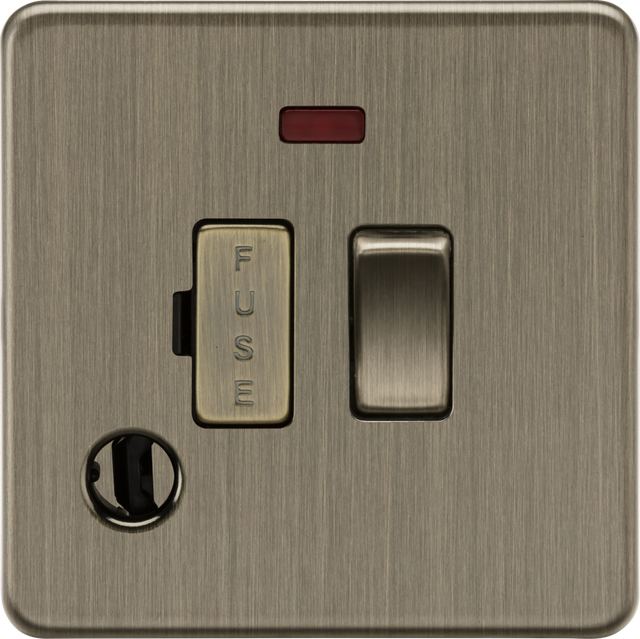

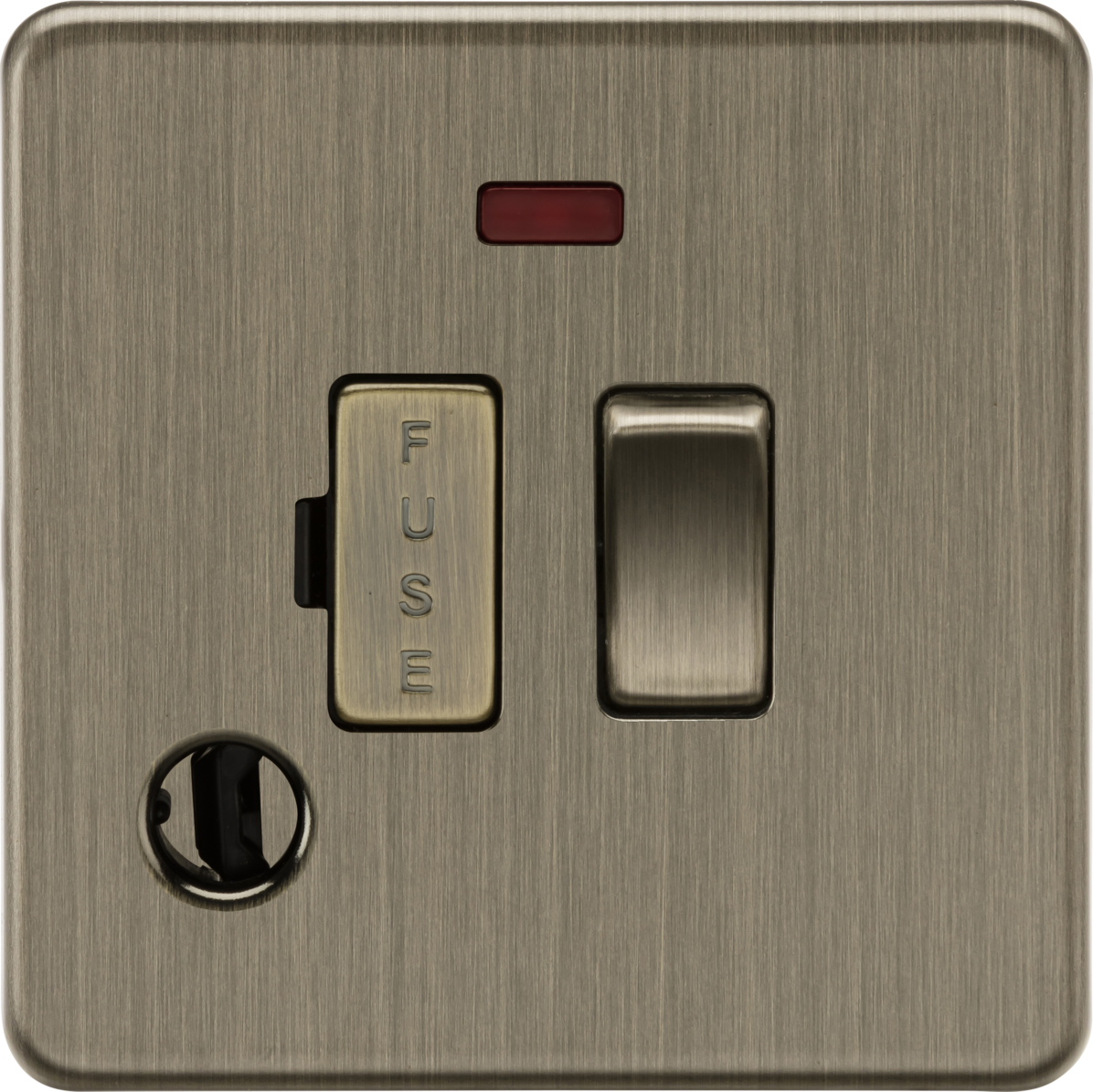

Knightsbridge: SF6300FAB, 13A Switched Fused Spur with Neon Indicator & Flex Outlet, Antique Brass Finish, 230V, IP20
About this product
Enhance your electrical installation with the 13A Switched Fused Spur with Neon and Flex Outlet, finished in a stylish Antique Brass.
- 13A rated for maximum performance
- Switched operation with integrated neon indicator
- Screwless low profile design ensures a sleek look
- Built-in gasket for a reliable seal
- Meets the BS 1363-4 standard for safety and performance
- Requires a minimum mounting box depth of 25mm
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Antique Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

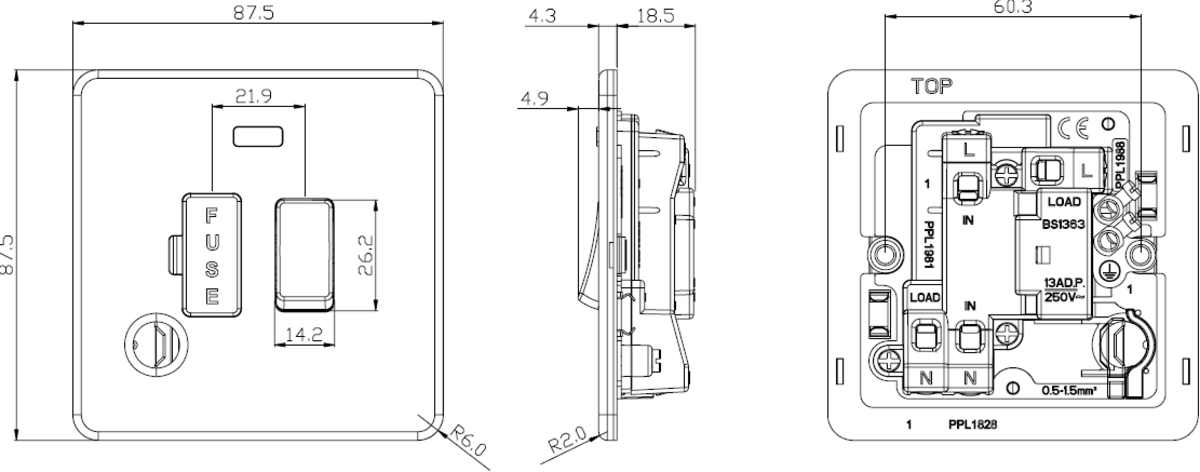

Dimensions
| Depth | 27.7 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 9.2 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 18.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|
13A Switched Fused Spur - Antique Brass features
Knightsbridge: SF6300FAB, 13A Switched Fused Spur with Neon Indicator & Flex Outlet, Antique Brass Finish, 230V, IP20
