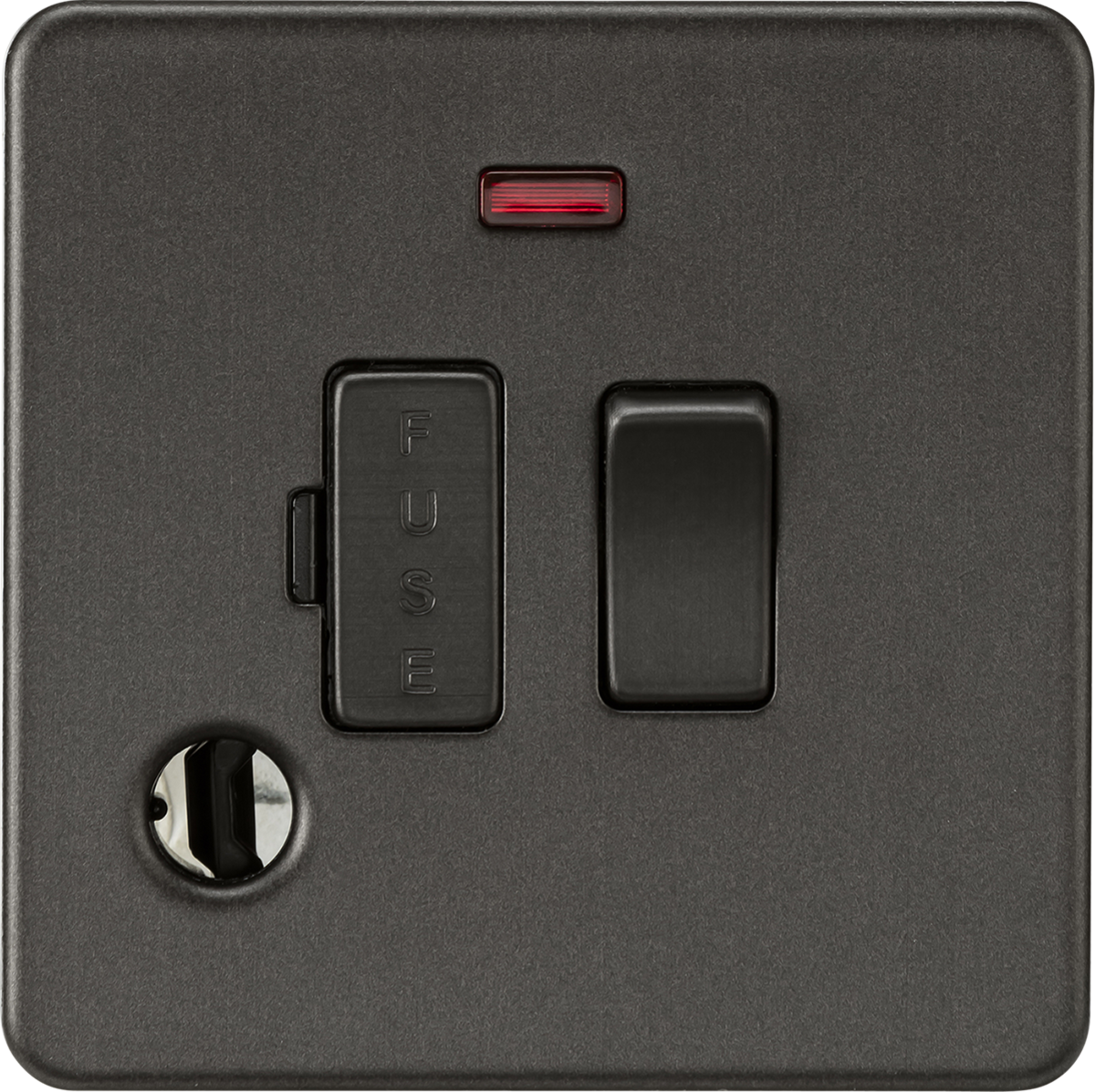

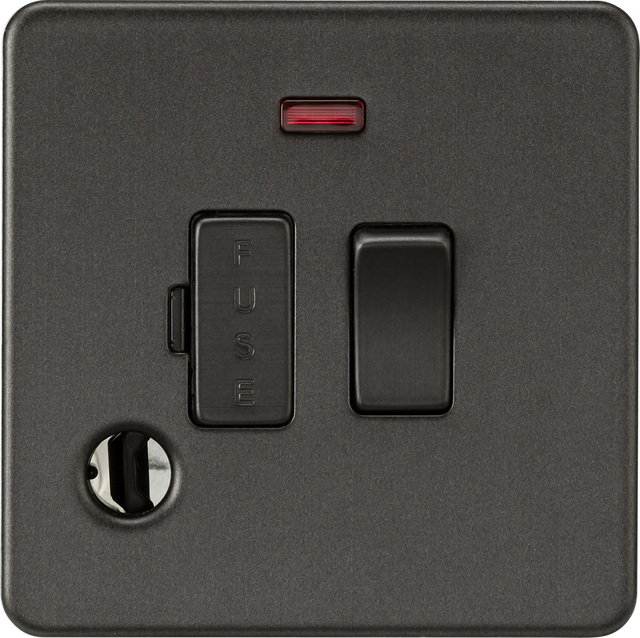

Smoked Bronze Fused Spur with Neon
The 13A Switched Fused Spur with Neon and Flex Outlet in Smoked Bronze is designed to provide a reliable and sleek solution for electrical installations. It features a low profile, screwless design that enhances any decor while meeting rigorous safety standards.
- 13A rated for robust performance
- Switched operation with neon indicator
- Flex outlet for added convenience
- Constructed with high-quality stainless steel for durability
- Certified to BS 1363-4 for safety compliance
- Minimum mounting depth of 25mm
Ideal for both DIY enthusiasts and professional contractors, this product ensures a compliant and safe electrical solution for various applications. Always follow electrical safety guidelines when installation.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Smoked Bronze |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

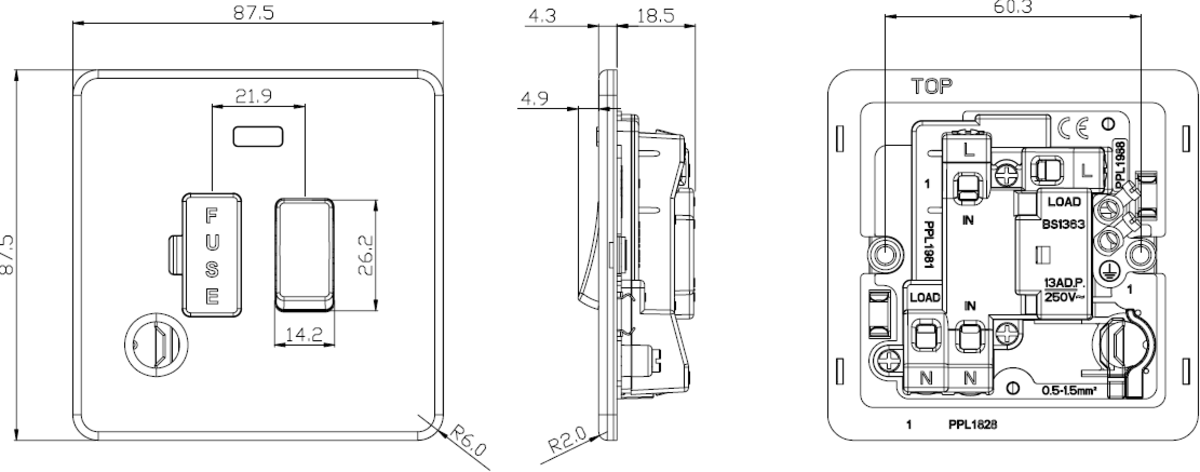

Dimensions
Depth | 27.7 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 9.2 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 18.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Neon Indicator | Yes |
Smoked Bronze Fused Spur with Neon features

13A Switched Fused Spur with Neon Indicator, Smoked Bronze, 230V, Low Profile, BS 1363-4 Certified, SF6300FSB
