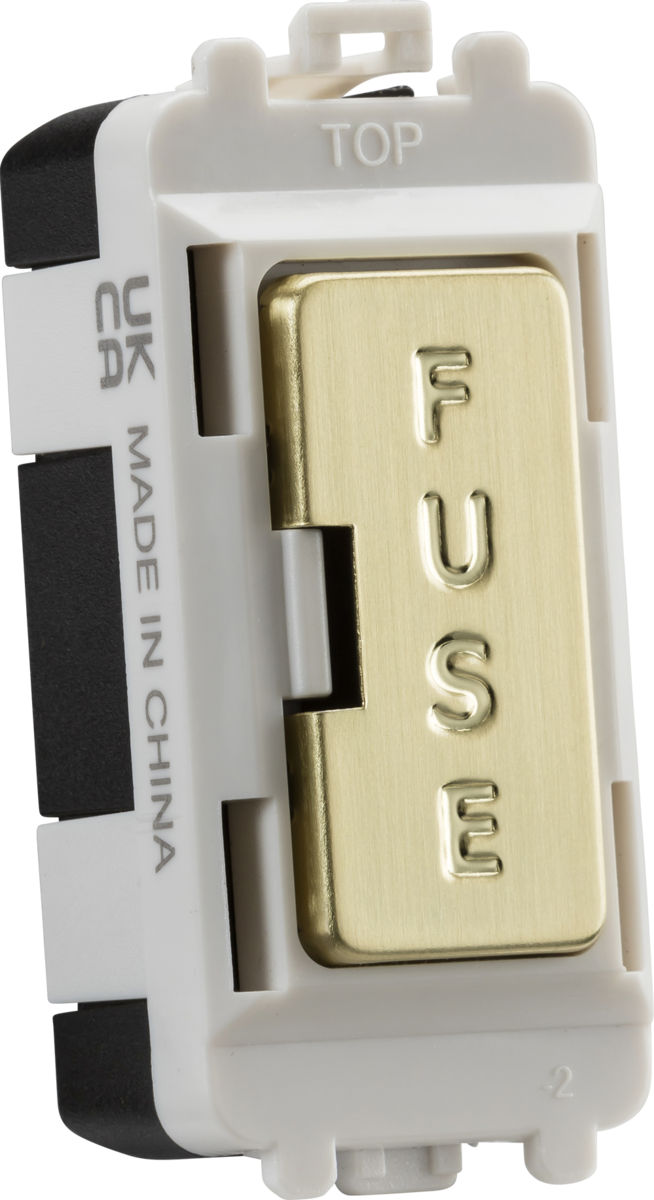

13A Fused Module - Brushed Brass
Protect your appliances with the Knightsbridge 13A Fused Module, designed with quality brushed brass finish. This component is crucial for appliance protection circuits, supplied with a replaceable 13A fuse.
- Part of the Knightsbridge Grid system
- Module easily clips into position from the front of mounting frames (sold separately)
- Primary Voltage: 230V 50Hz
- IP Rating: IP20
Specifications
Dimensions
Specifications
Finish | Brushed Brass |
---|---|
IP Rating | IP20 |
Construction | ABS |
Construction 2 | & steel |
Primary Voltage | 230V 50Hz |

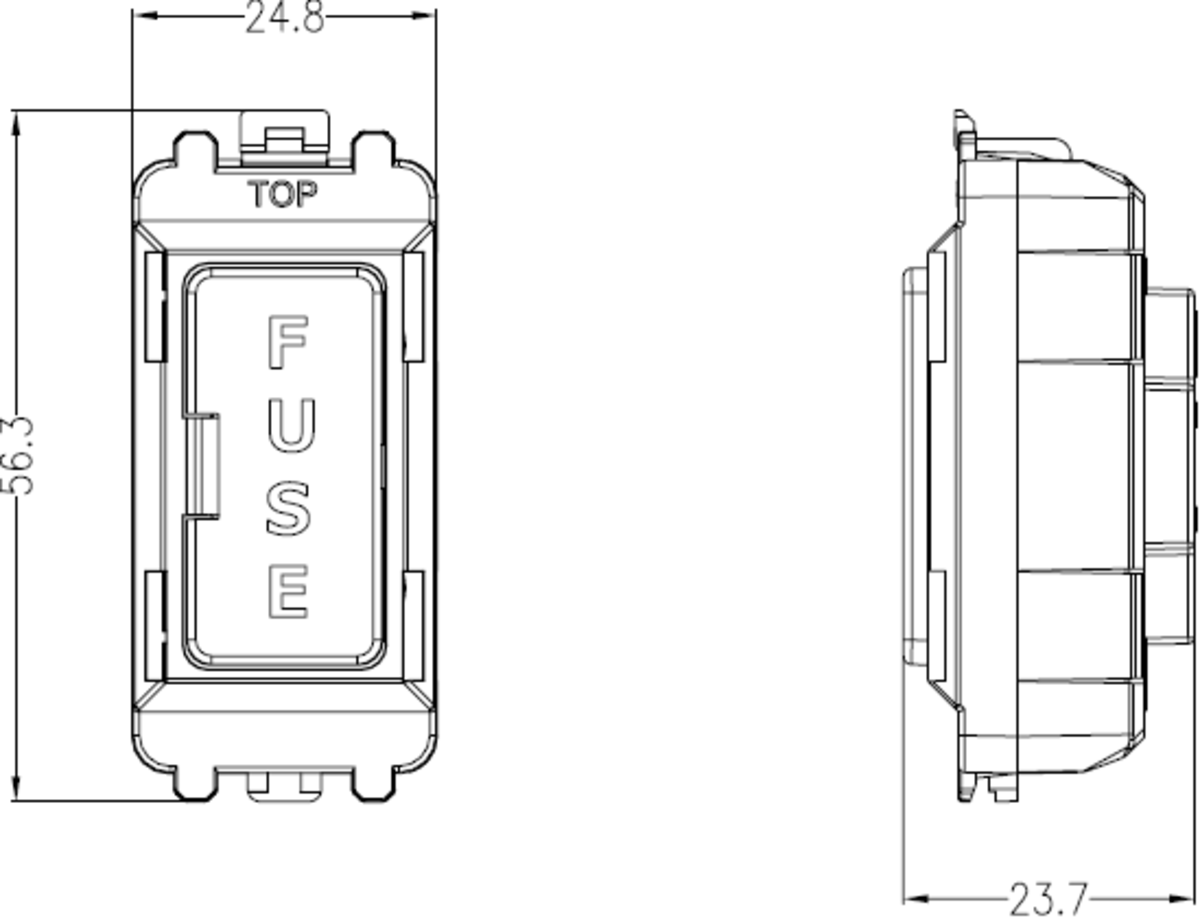

Dimensions
Depth | 19.8 mm |
---|---|
Width | 24.8 mm |
Height | 56.3 mm |
Recessed Depth | 21.2 mm |
Min. Mounting Box Depth | 35mm |
13A Fused Module - Brushed Brass features

Knightsbridge 13A Fused Module, Brushed Brass Finish, Replaceable Fuse, IP20, 230V, 56.3 x 24.8 x 19.8 mm, GDM011BB
