Knightsbridge: CU150I, Intelligent 2-Way Dimmer Module, 5-400W, White, Curved Edge Adapter Kit, 5-150W LED Compatible




          Easy Switching







      £


      14


      57


         (Incl. VAT)

          RRP: £16.19





        Save £1.62





          2 Years Warranty

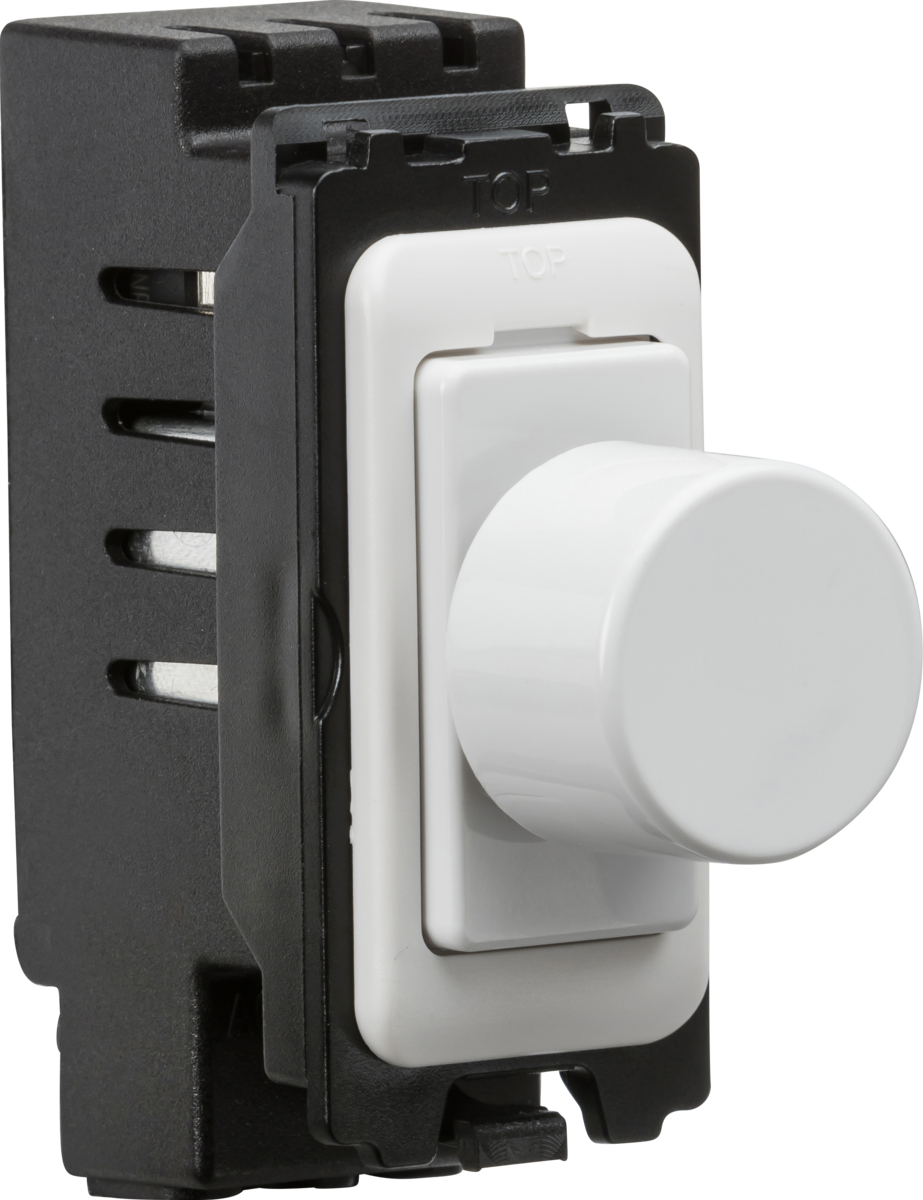

       Intelligent 2-Way LED Dimmer Module
About this product


  About this product
The Intelligent Dimmer Module is a versatile two-way dimmer solution for your lighting needs, supporting both trailing-edge and leading-edge modes.
- Easy switching between modes via the control knob.
- Push On/Off and rotary dimming functionality.
- Centre spindle position enhances user experience.
- Compatible with dimmable lamps only.
- Supplied with a Curved Edge Grid Adaptor Kit for quick installation.
Warning: Do not use in a mixed environment with differing brands or wattages.


      £


      14


      57



          RRP: £16.19







            Save £1.62




 FAST delivery by  Order within




    Technical Details




  Specifications

                 Finish

                 White



                 IP Rating

                 IP20



                 Construction

                 ABS



                 Primary Voltage

                 230V 50Hz

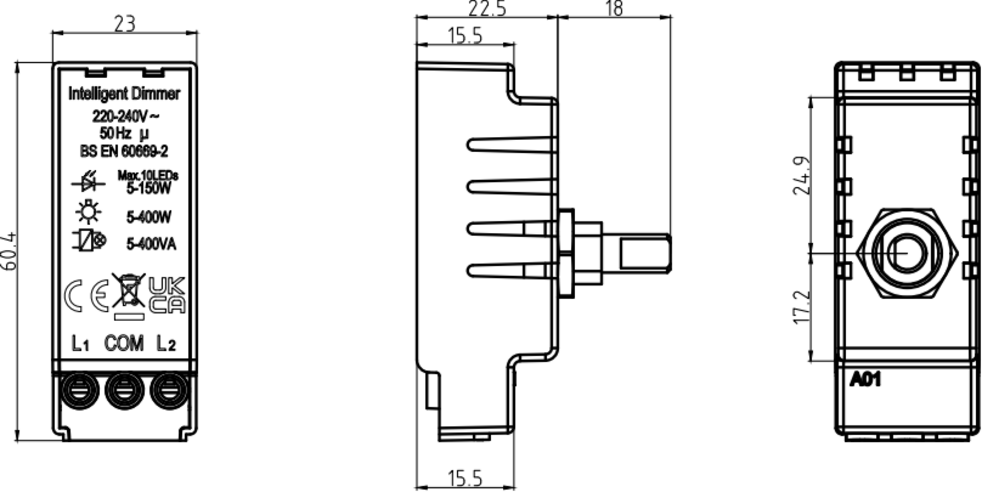

          Dimensions

                   Depth

                   22.5 mm



                   Width

                   23 mm



                   Height

                   60.4 mm



                   Projection

                   18 mm



                   Recessed Depth

                   22.5 mm



                   Min. Mounting Box Depth

                   25mm


            Specifications
| Finish | White |
|---|---|
| IP Rating | IP20 |
| Construction | ABS |
| Primary Voltage | 230V 50Hz |
Dimensions
| Depth | 22.5 mm |
|---|---|
| Width | 23 mm |
| Height | 60.4 mm |
| Projection | 18 mm |
| Recessed Depth | 22.5 mm |
| Min. Mounting Box Depth | 25mm |
Intelligent 2-Way LED Dimmer Module features







Knightsbridge: CU150I, Intelligent 2-Way Dimmer Module, 5-400W, White, Curved Edge Adapter Kit, 5-150W LED Compatible
