Metro Prepaid Single Phase Meter (MET001) – A Smart Solution for Energy Management

Managing electricity usage effectively is crucial for landlords, tenants, and property managers. The Metro Prepaid Single Phase Meter (MET001) is a high-performance, encryption-enabled prepayment electric meter designed to streamline energy monitoring. With PayPoint vending integration, real-time power code purchases are effortless, providing a secure and efficient way to control electricity consumption.

Product Overview & Key Benefits

The Metro Prepaid Single Phase Meter is a reliable sub-metering solution for residential and small commercial applications. Designed to offer transparency and control over electricity usage, this device ensures that users only pay for the energy they consume.

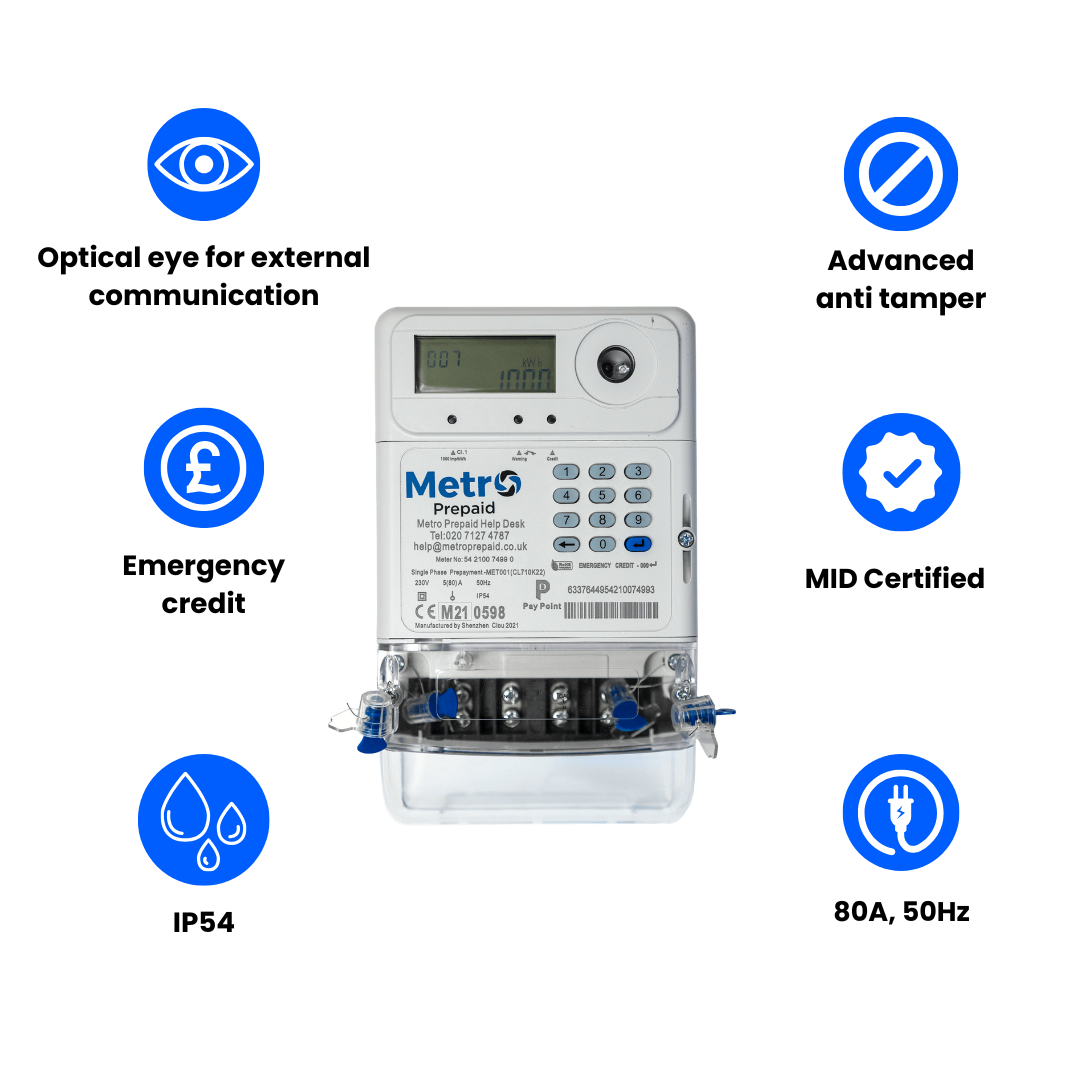

Key Benefits:

Easy Prepayment System: Integrated with PayPoint vending for instant power code purchases.

Accurate & Compliant: MID Certified and IEC Class 1 for precision and reliability.

Secure & Tamper-Resistant: Advanced anti-tamper features to prevent unauthorised access.

Emergency Credit Function: Provides 20kWh of emergency credit to prevent sudden power loss.

Silent Low Credit Warning: Notifies users without disruptive alarms.

Durable Construction: IP54-rated for dust and splash resistance.

Metro Lifetime Warranty: Manufacturer-backed assurance for long-term reliability.

Technical Specifications & Product Details

The Metro Prepaid Single Phase Meter is built with cutting-edge technology to ensure efficient energy monitoring and management.

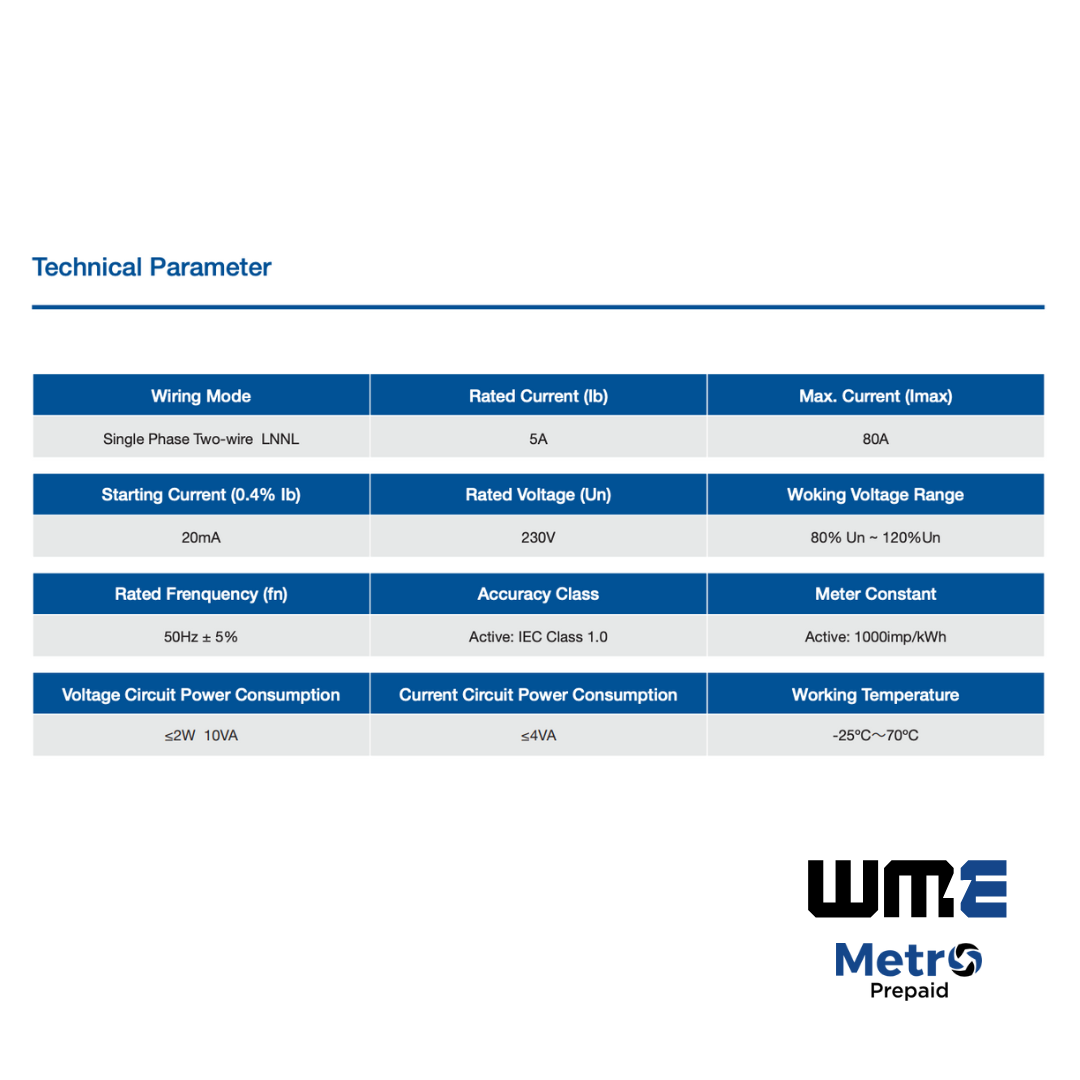

Technical Specifications:

Model: MET001

Phase: Single Phase

Rated Current: 80A

Rated Voltage: 230V

Voltage Range: 80% Un ~ 120% Un

Frequency: 50Hz ± 5%

Accuracy Class: IEC Class 1

Meter Constant: 1000 imp/kWh

Power Consumption: Voltage Circuit ≤ 2W 10VA | Current Circuit ≤ 4VA

Working Temperature: -25ºC to 70ºC

Protection Rating: IP54 (dust and splash-resistant)

Communication: Optical eye for external data transfer

Ideal Uses & Applications

The Metro Prepaid Single Phase Meter is versatile and suitable for various residential and commercial settings. Whether you are a property owner, business manager, or tenant, this device provides accurate billing and easy top-up options.

Common Applications:

Landlords & Property Managers: Ideal for HMOs, rental units, and student accommodations to ensure tenants pay for their actual usage.

Residential Use: Helps homeowners monitor and manage electricity consumption efficiently.

Commercial Spaces: Suitable for small businesses, offices, and retail shops needing sub-metering solutions.

Workshops & Industrial Units: Provides energy tracking for machinery and equipment.

Hospitality Sector: Hotels, hostels, and Airbnb properties can benefit from prepaid energy control.

Energy Efficiency & Cost Savings

One of the biggest advantages of using the Metro Prepaid Single Phase Meter is its contribution to energy efficiency and cost control. By allowing users to prepay for electricity, it promotes conscious energy consumption, ultimately reducing wastage.

Key Cost-Saving Benefits:

Prevent Unexpected Bills: Users pay only for the electricity they consume, avoiding surprises in monthly statements.

Encourages Energy Conservation: With real-time monitoring, users are more aware of their consumption and are likely to use electricity efficiently.

Emergency Credit Safety Net: Provides 20kWh of emergency credit to prevent sudden power disconnections.

Accurate Metering: Ensures precision in energy usage tracking, reducing discrepancies.

Compliance & Installation Guidelines

The Metro Prepaid Single Phase Meter complies with stringent UK and EU standards, ensuring reliability and safety. As an MID-certified device, it guarantees accurate electricity metering for billing purposes.

Installation Notes:

Must be installed by a qualified electrician in accordance with local wiring regulations.

Ensure proper grounding and secure wiring for optimal performance.

Refer to the manufacturer’s installation guide for detailed wiring diagrams and safety precautions.

Why Choose the Metro Prepaid Single Phase Meter?

With its advanced features, compliance with industry standards, and ease of use, the Metro Prepaid Single Phase Meter (MET001) is the perfect choice for anyone looking to manage electricity costs effectively. Its integration with PayPoint vending ensures hassle-free top-ups, making it a convenient solution for both landlords and tenants.

Order yours today and take control of your energy usage with precision and reliability.
