Product Overview & Key Benefits

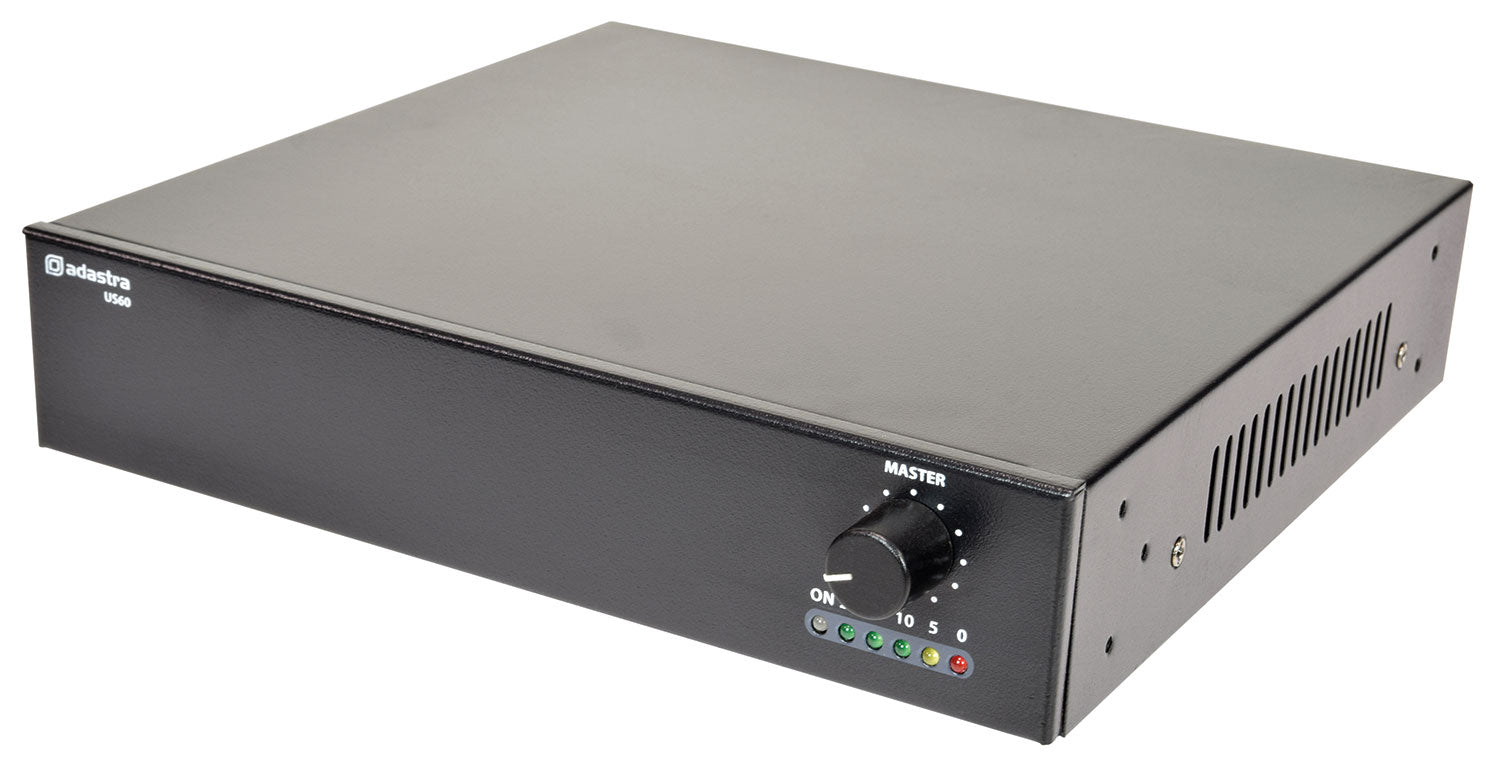

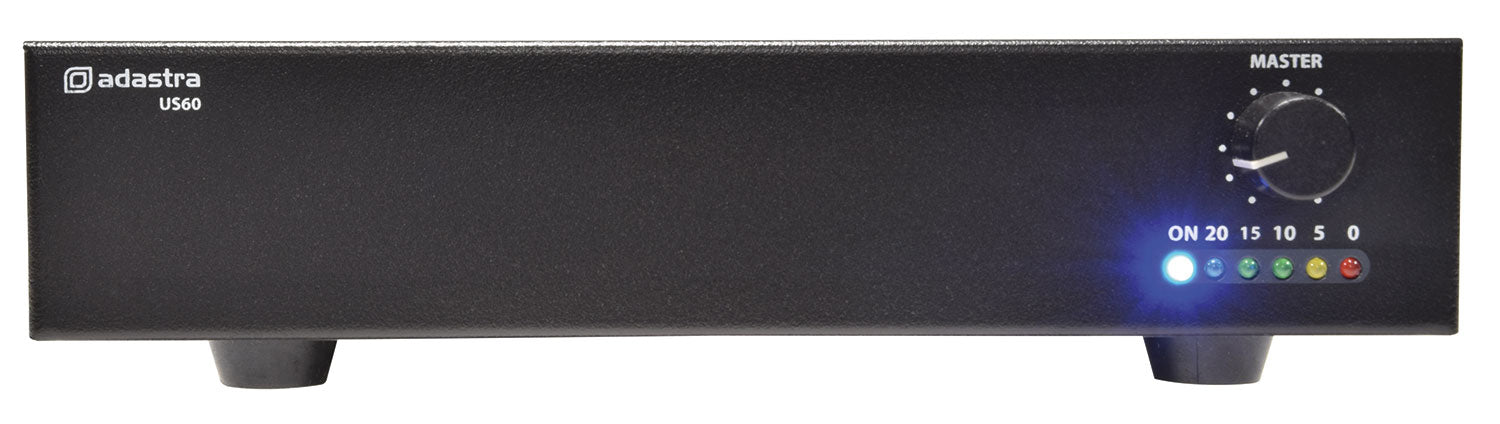

TheUS Series Compact 100V Slave Amplifiersare a robust solution designed for enhancing audio systems in both small and medium public address (PA) installations. With a powerful 60W output, these amplifiers can easily cater to environments where clear sound distribution is paramount. The product excels in versatility, allowing users to expand their existing 100V speaker systems efficiently by connecting in parallel with existing speakers. This makes it an ideal choice for venues such as conference rooms, retail spaces, and outdoor events where sound amplification is necessary.

Technical Specifications & Product Details

• Model:US Series Compact 100V Slave Amplifier
• Power Output:60W RMS
• Signal-to-Noise Ratio (SNR):80dB
• Total Harmonic Distortion (THD):< 0.4% at 1kHz
• Mute Function:24V relay contacts for easy control

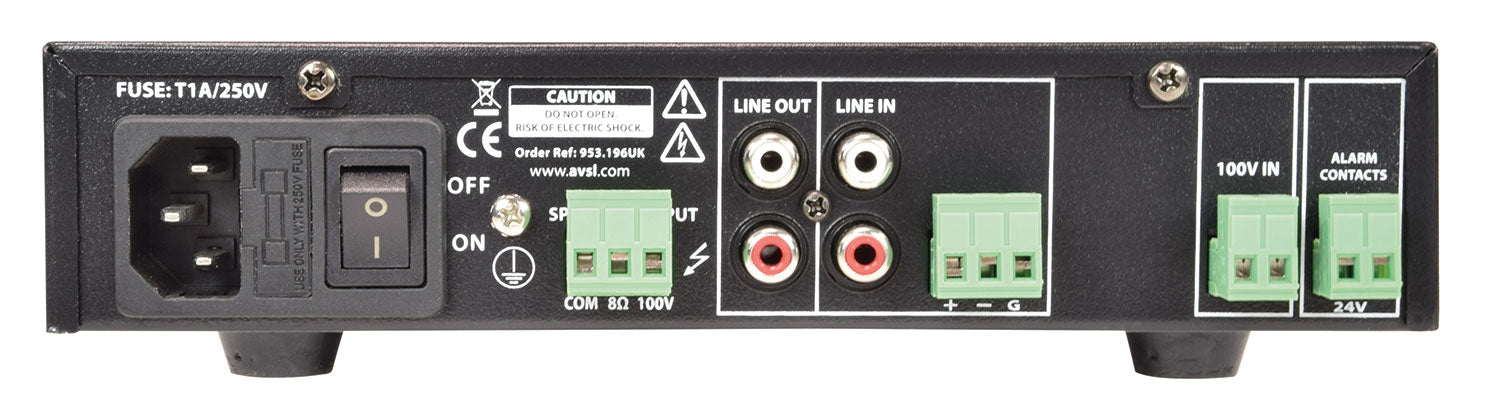

• Inputs:Line (RCA), 100V (Euroblock +/-)
• Outputs:2 x RCA (mono) and speaker output via Euroblock terminals (100V / 8 Ohms / Com)
• Input Impedance:1k Ohms
• Input Sensitivity:-10dB (line)
• Frequency Response:100Hz - 18kHz
• Power Supply:170-264Vac, 50Hz (IEC)
• Construction:Class D with transformer output
• Dimensions:269 x 210 x 44mm
• Weight:2.3kg

Ideal Uses & Applications

TheUS Series Compact 100V Slave Amplifiersare primarily designed for use in various installation scenarios, making them perfect for:

• Domestic DIY Projects:Enhance your home audio setup with ease.
• Commercial Buildings:Perfect for offices, retail shops, and commercial spaces where sound clarity is crucial.
• Hospitality Settings:Ideal for hotels and restaurants seeking to improve background music and announcements.
• Public Events:Utilise these amplifiers in outdoor or indoor events to ensure audible speech and music.

Energy Efficiency & Cost Savings

Utilising cutting-edge Class D amplifier technology, theUS Series Compact 100V Slave Amplifiersnot only offer superior sound performance but also contribute to energy savings. By improving efficiency in power consumption, these amplifiers help businesses reduce their electricity costs. Users can expect to save significantly on energy bills while retaining excellent sound quality, making it a financially savvy choice for any audio installation.
