Product Overview & Key Benefits

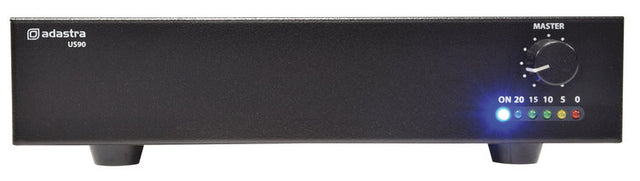

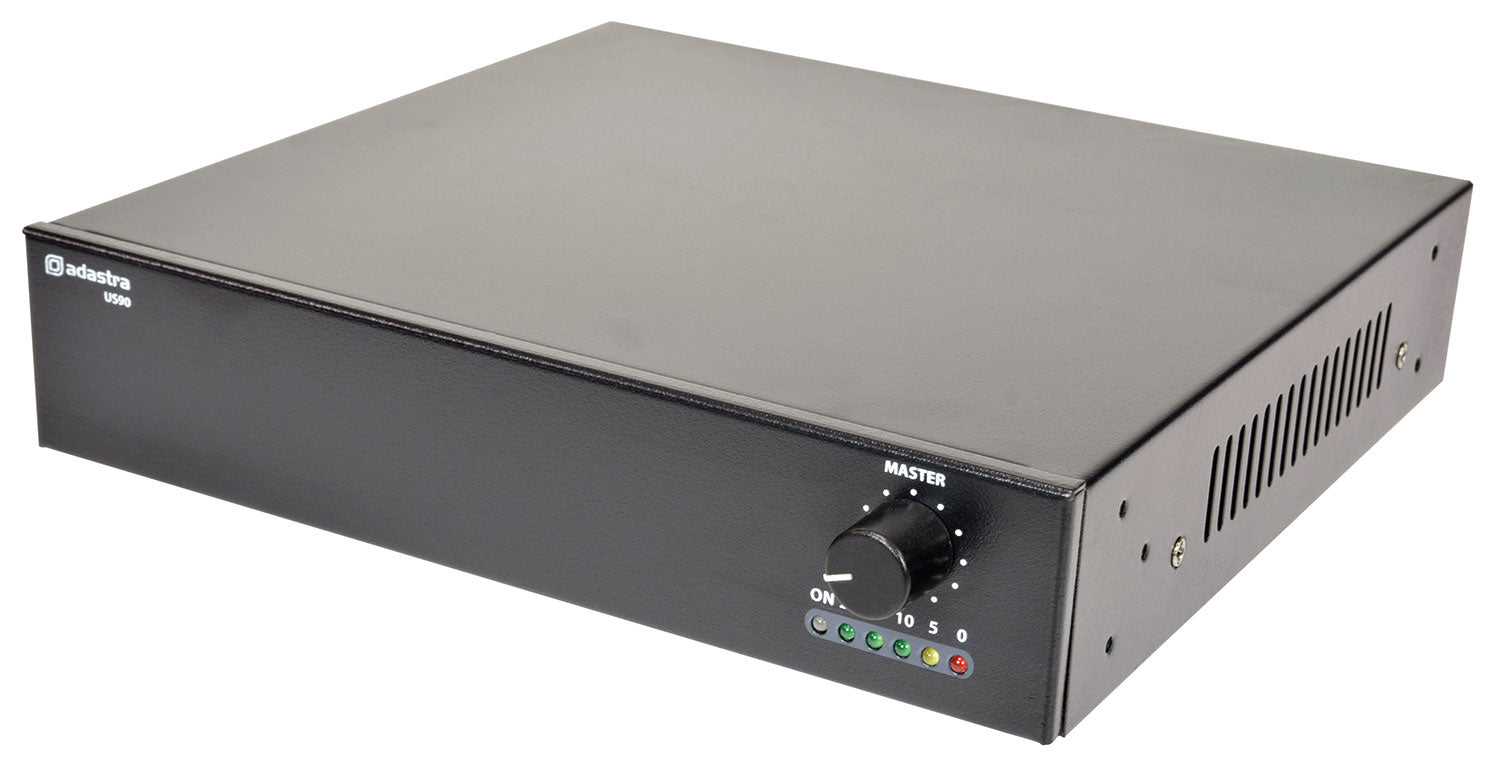

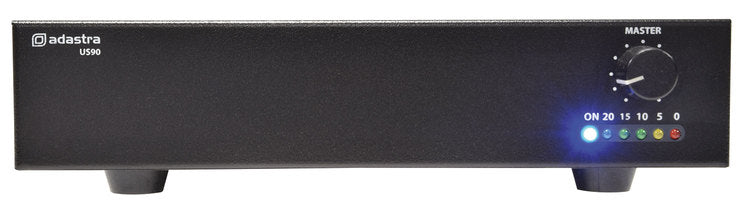

The US Series Compact 100V Slave Amplifiers are designed for small to medium public address systems, providing a robust and flexible audio amplification solution. Featuring a half-width 1U housing, these amplifiers are ideal for those looking to expand their existing 100V speaker systems without requiring extensive installation space. Perfect for venues such as schools, restaurants, and commercial buildings, they allow users to achieve clear sound reproduction in an effective manner.

Technical Specifications & Product Details

• Output Power:90W
• Signal-to-Noise Ratio (SNR):80dB
• Total Harmonic Distortion (THD):<0.4% @ 1kHz
• Mute:24V relay contacts

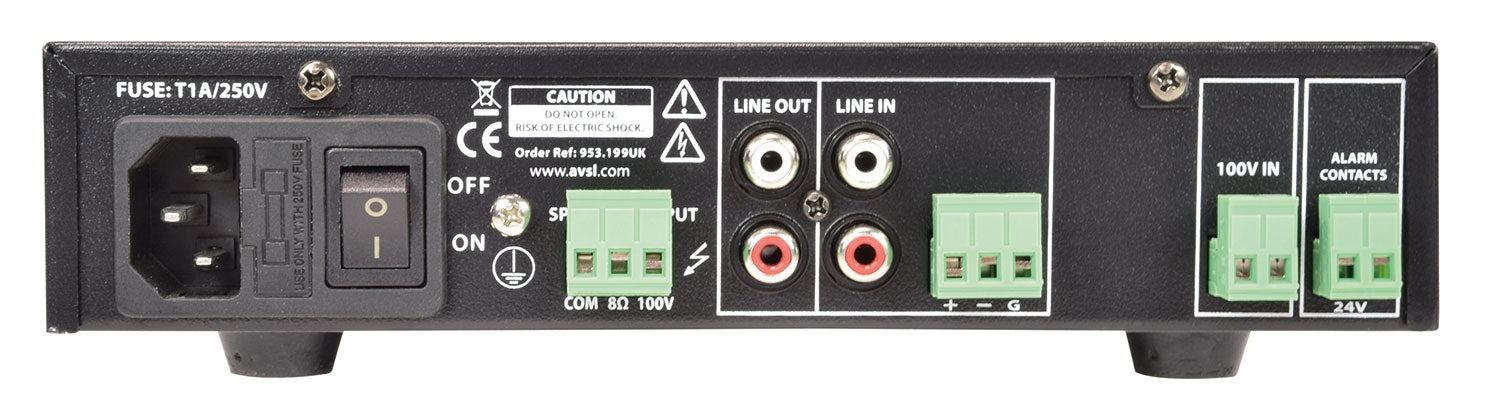

• Inputs:Line (RCA), 100V (Euroblock +/-)
• Weight:2.40kg
• Dimensions:330 x 210 x 44mm
• Line Output:2 x RCA (mono)
• Power Supply:170-264Vac, 50Hz (IEC)
• Speaker Output:Euroblock terminals: 100V / 8 Ohms / Com
• Input Impedance:1k Ohms
• Input Sensitivity:-10dB (line)
• Frequency Response:100Hz - 18kHz
• Amplifier Construction:Class D + transformer output

Ideal Uses & Applications

The US Series Compact 100V Slave Amplifiers are perfect for a multitude of settings, including:

• Domestic DIY:Ideal for hobbyists looking to build a personal sound system.
• Commercial Buildings:Great for offices wanting background music or announcement systems.
• Hospitality Settings:Suitable for restaurants and cafes needing efficient audio systems.
• Educational Institutions:Useful in schools for lectures and assemblies.
• Event Spaces:Effective at small-scale events where clear, powerful sound is essential.

Energy Efficiency & Cost Savings

Leveraging a robust Class D amplification design, the US Series Compact 100V Slave Amplifiers not only deliver impeccable audio performance but also ensure energy savings. Their efficient operation allows users to enjoy reliable sound reproduction while keeping electricity costs in check, making it a wise choice for budget-conscious consumers. By implementing these amplifiers in an existing 100V speaker setup, one can expand their audio capabilities, possibly leading to reduced operational costs over time as they seamlessly integrate into existing systems.

In summary, the US Series Compact 100V Slave Amplifiers provide a flexible, reliable, and efficient audio solution that is perfectly suited for a range of applications, ensuring clear sound and operational efficiency in any environment.
