Product Overview & Key Benefits

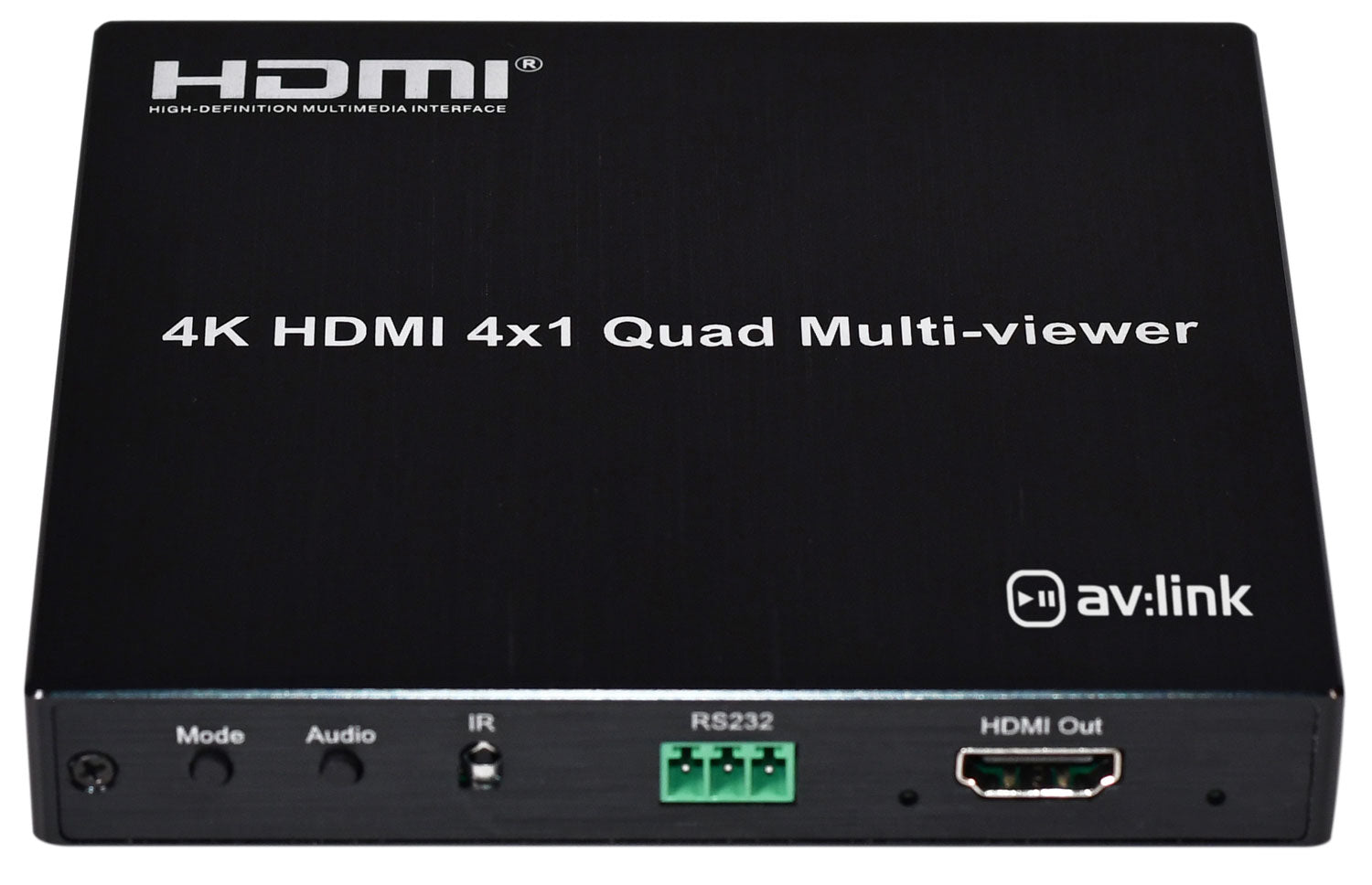

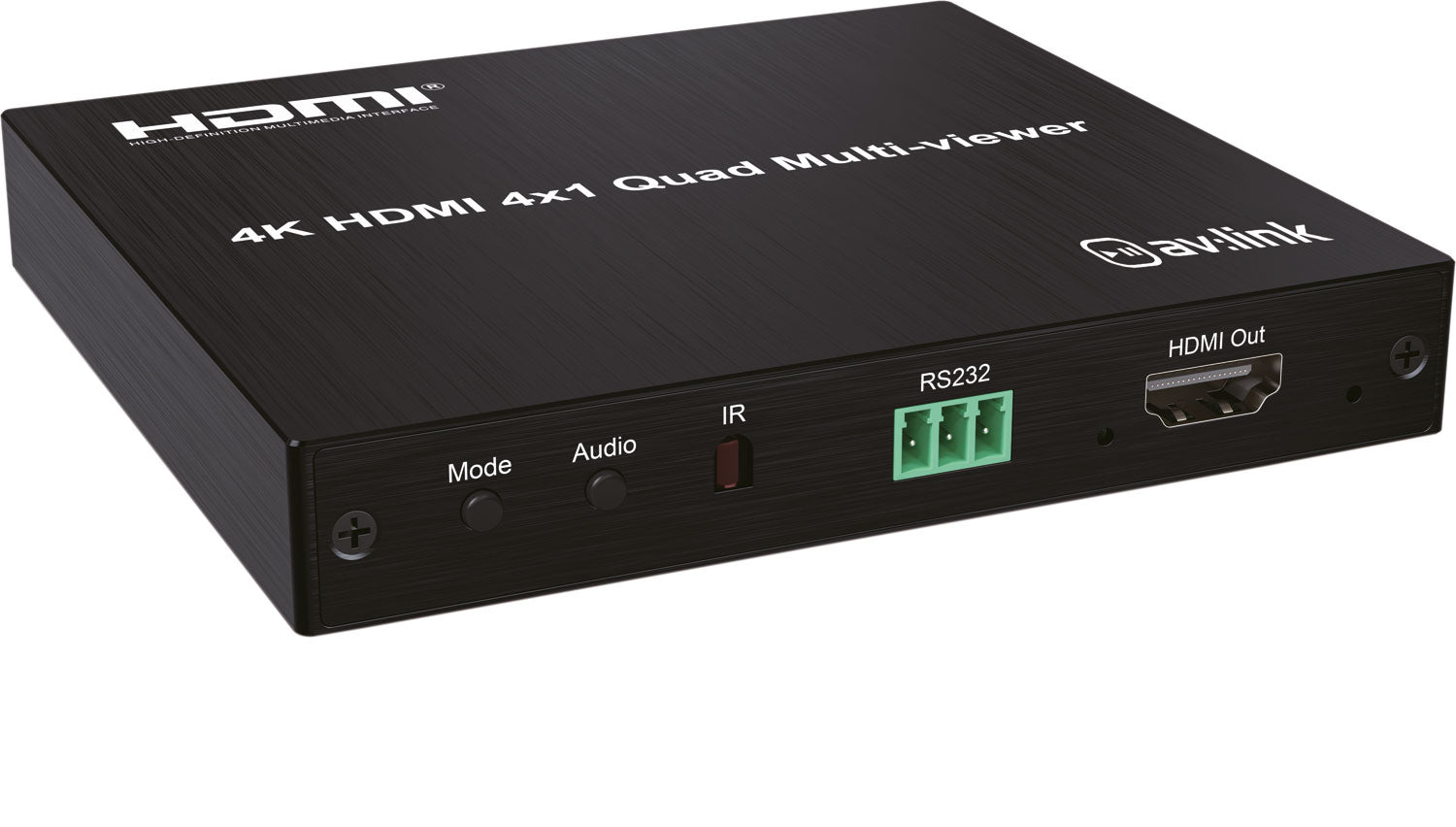

The4K HDMI Multi-viewer 4x1is a sophisticated device designed for those seeking to manage multiple HDMI sources seamlessly. Ideal for both professional and casual users, this product offers the ability to display and switch between up to four HDMI inputs on a single output, making it perfect for applications such as CCTV monitoring, gaming, hospitality, and entertainment. With seven different display options, users are provided with flexibility in visual arrangements, catering to various needs and environments.

Technical Specifications & Product Details

• Weight:220g
• Dimensions:121 x 102 x 19mm
• Audio Format:LPCM2.0

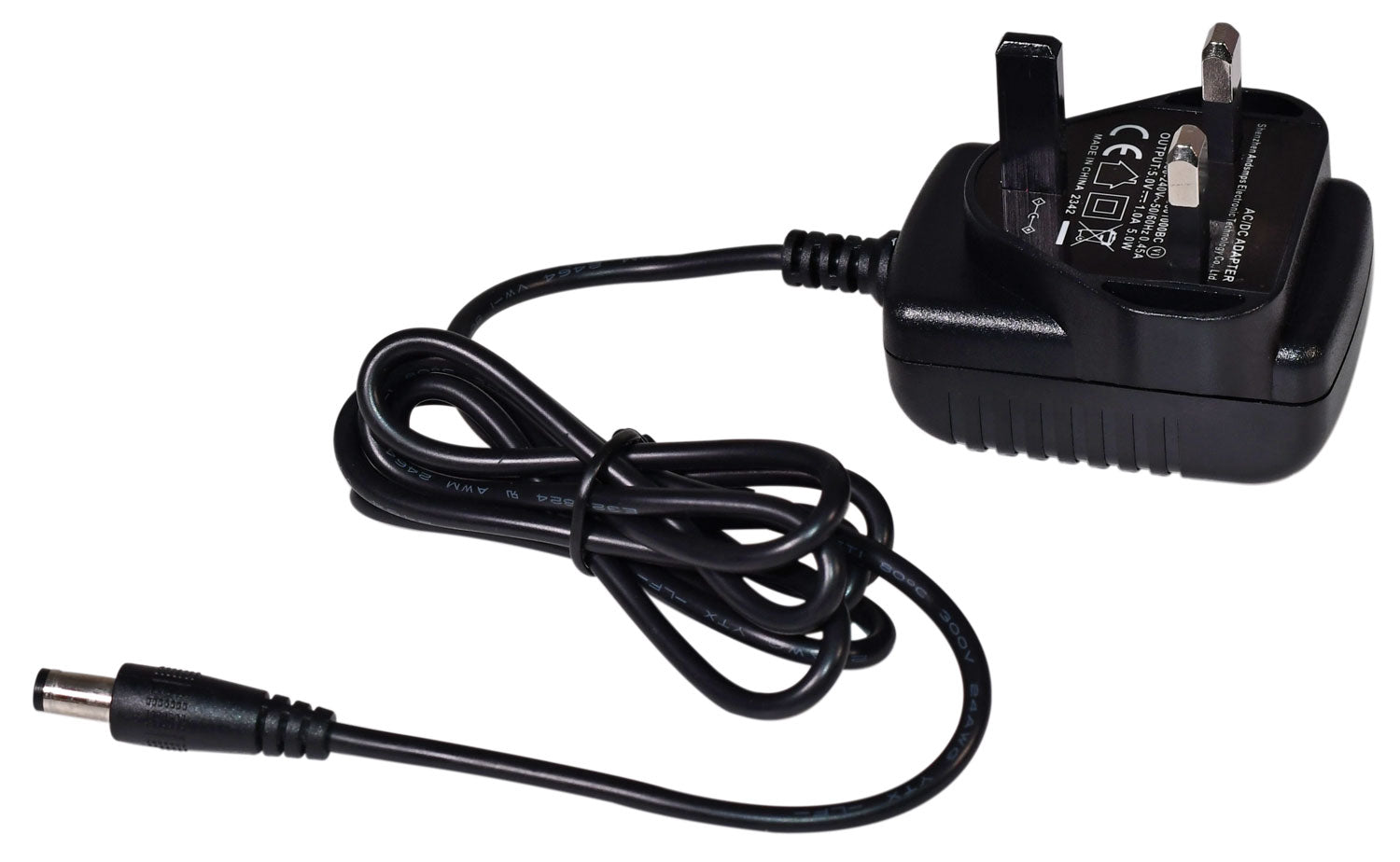

• Power Adaptor:Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
• Max. Bandwidth:340Mhz
• Max. Baud Rate:3.4 x 3Gbps
• Max. Resolution:3840 x 2160 @ 30Hz
• Remote Control Battery:2x AAA (not supplied)

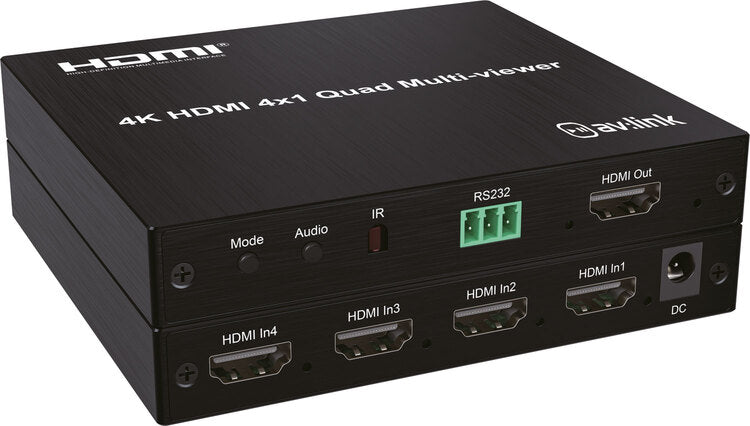

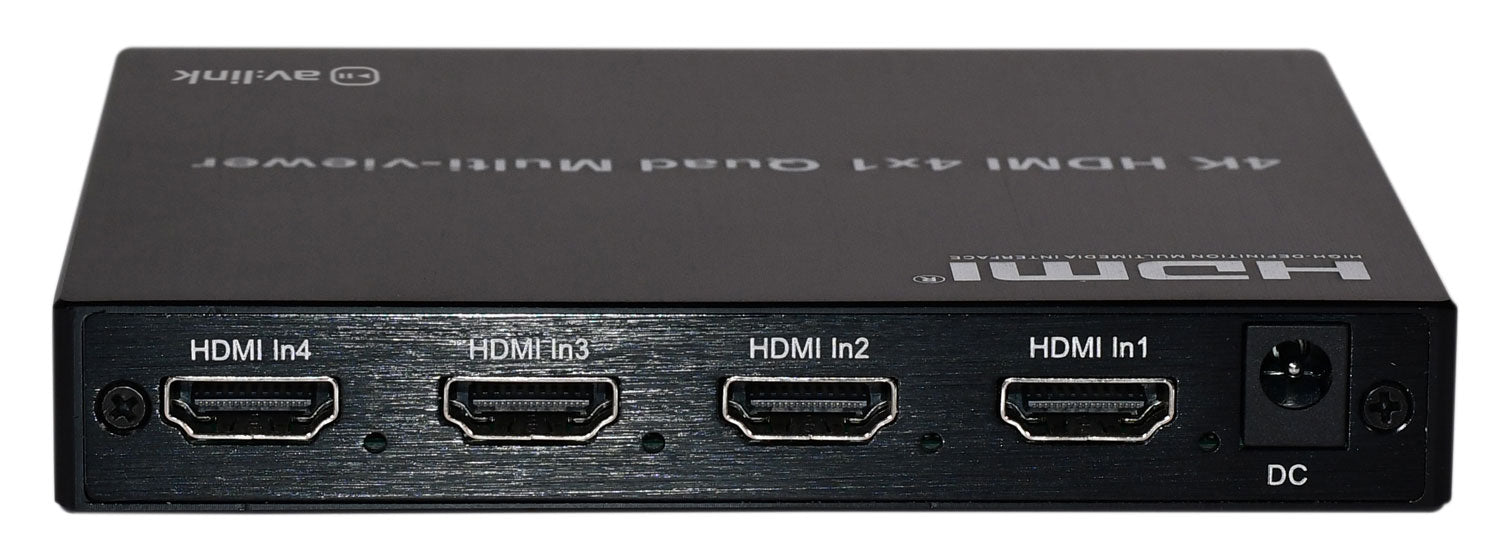

• Input Connections:4x HDMI, DC5V/1A (power)
• Max. Cable Length:Input: 4K/30Hz ≤ 10m, Output: 4K/30Hz ≤ 10m
• Output Connections:HDMI, RS232
• Max. Working Current:0.6A
• Operating Temperature Range:-10°C to +45°C
• Finish:Attractive brushed metal finish

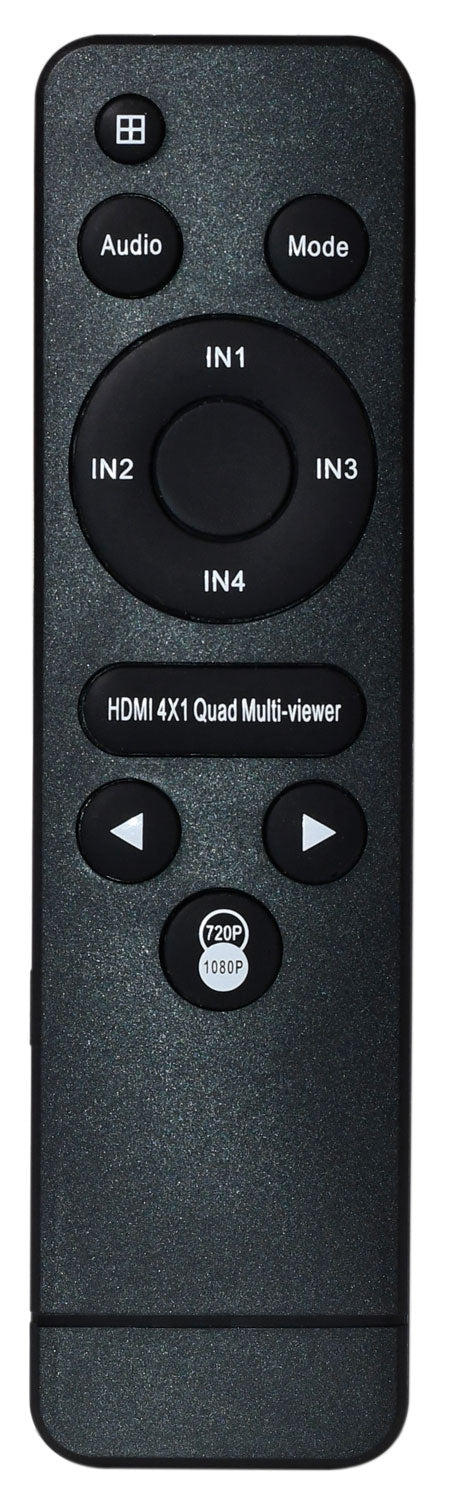

• Control:IR remote control and UK power adaptor supplied

Ideal Uses & Applications

The4K HDMI Multi-viewer 4x1is versatile and has a wide range of applications in various settings. It is especially beneficial for:

• CCTV and Security:Ideal for surveillance systems needing multiple video feeds, allowing operators to monitor several angles simultaneously.
• Gaming:Perfect for gamers who require quick switching between different consoles or PCs without needing to disconnect and reconnect cables.
• Hospitality:Useful in bars and restaurants for displaying different media sources across multiple screens to enhance customer experience.
• Entertainment:An excellent choice for home theatre systems, allowing enthusiasts to connect multiple devices effortlessly and switch displays as desired.
• Office Use:Provides an efficient solution for presentations or video conferencing where multiple inputs may be required.

Energy Efficiency & Cost Savings

By adopting the4K HDMI Multi-viewer 4x1, users can achieve significant energy savings and optimise their environment's efficiency. The device's operating features allow for the reduction of cable usage, ultimately leading to less electronic waste and energy consumption. Its capabilities facilitate streamlined operations that can lead to up to 50% reduction in power usage compared to traditional video switching methods, contributing to lower electricity bills and a greener approach to technology.
