Citronic: 170.872UK, CSM Compact Mixer, USB & Bluetooth, 4 Mono + 1 Stereo

Product Overview & Key Benefits

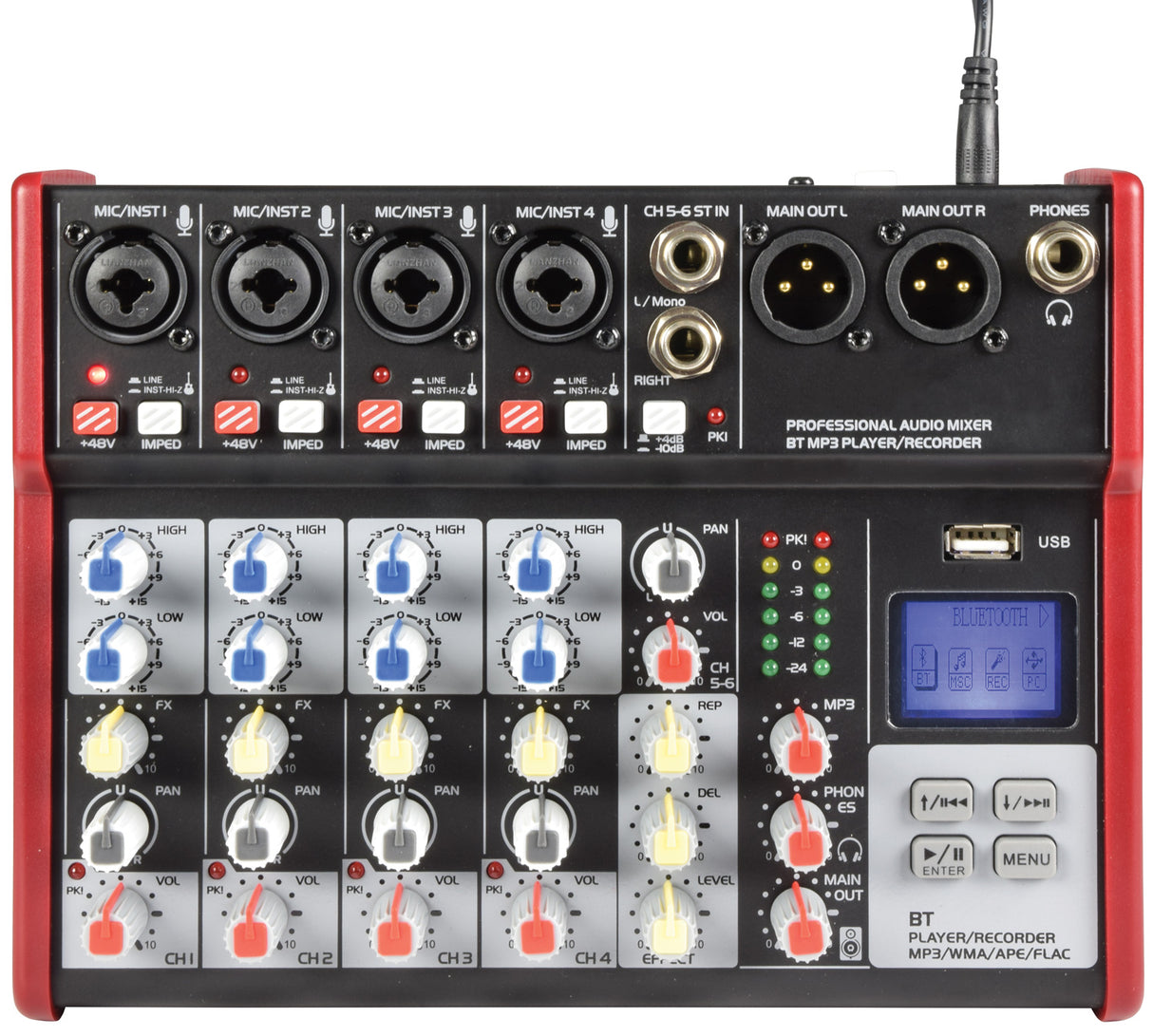

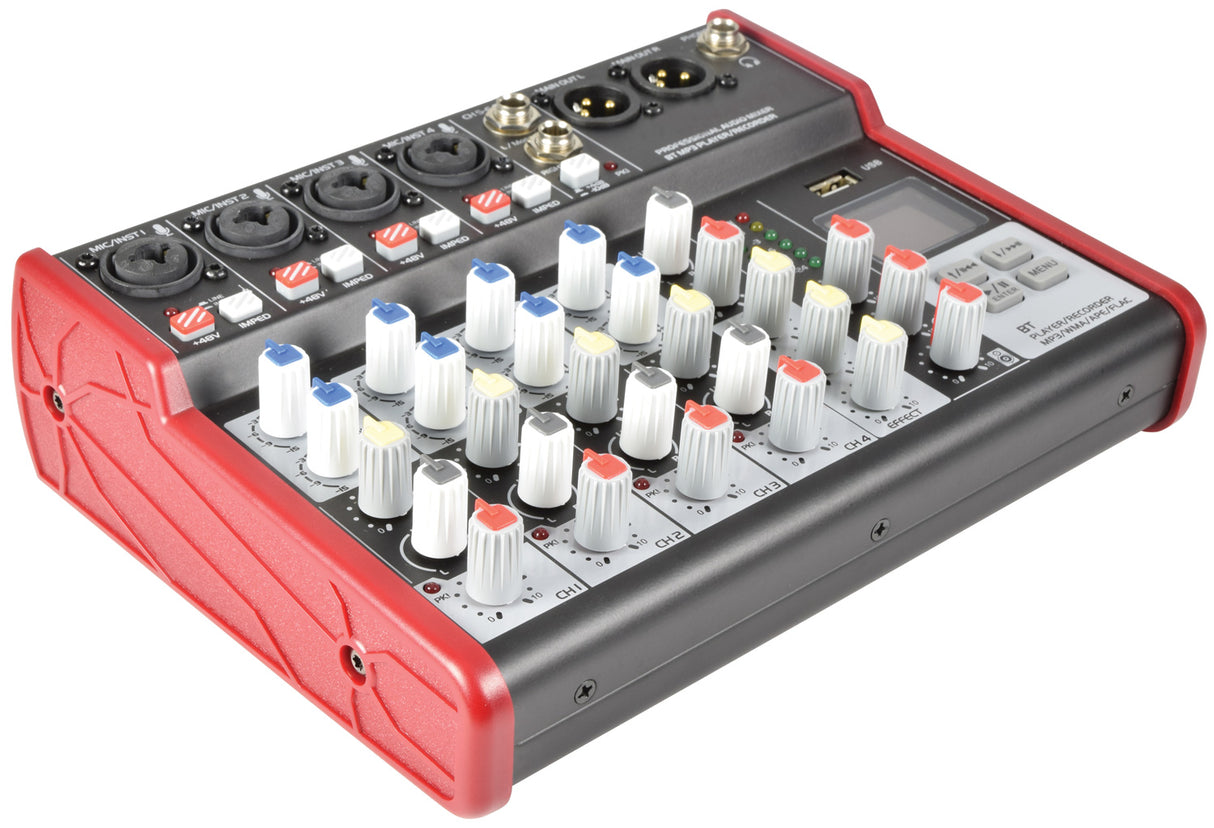

The CSM Compact Mixers With USB / Bluetooth is designed to deliver exceptional audio mixing capabilities in a compact format. Ideal for musicians, podcasters, and live performers, this versatile mixer boasts up to four mono channels and one stereo line input. Each channel is equipped with combo XLR/jack inputs that feature individually switchable mic/instrument impedance and +48V phantom power, making it perfect for both vocalists and instrumentalists. With built-in digital effects and USB playback capabilities, users can effortlessly enhance their audio projects while maintaining a high level of quality.

Technical Specifications & Product Details

• Model:CSM Compact Mixer (SKU: 170.872UK)
• Input Channels:4 x mono (combo XLR/jack) + 1 x stereo line input
• Audio Format:USB playback (mp3, wma, ape, flac) and recording (mp3 48kHz 128kB/s)
• Microphone Input Impedance:2k Ohms
• Instrument Input Impedance:1M Ohms
• Line Input Impedance:20k Ohms

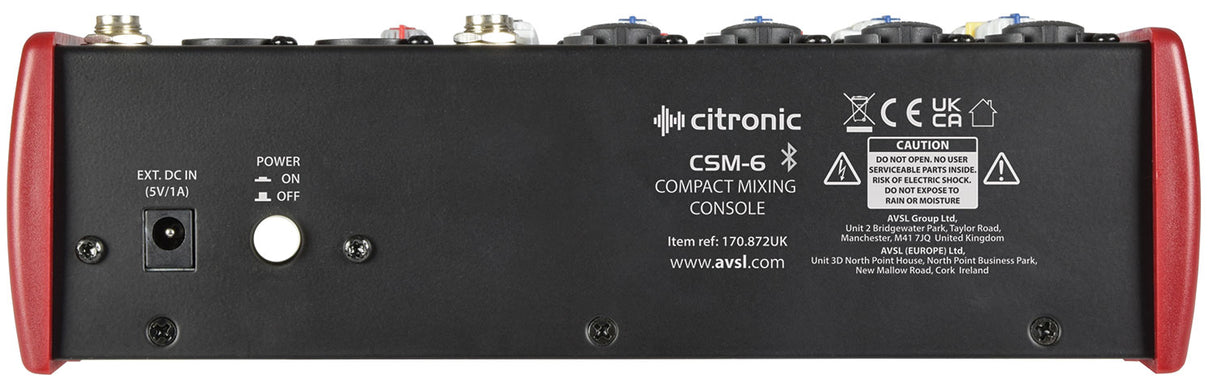

• Outputs:Balanced Left + Right XLR connectors
• Bluetooth Version:2.1 + EDR
• Low EQ Control:±15dB @ 80Hz
• High EQ Control:±15dB @ 12kHz
• Dynamic Range:102dB
• THD + N:<0.03% @ 1kHz
• Frequency Response:20Hz - 20kHz (±0.5dB)
• Maximum Output Level:3Vrms
• Crosstalk (stereo):92dB
• Power Supply:5Vdc 1A (adaptor included)
• Weight:1.17kg

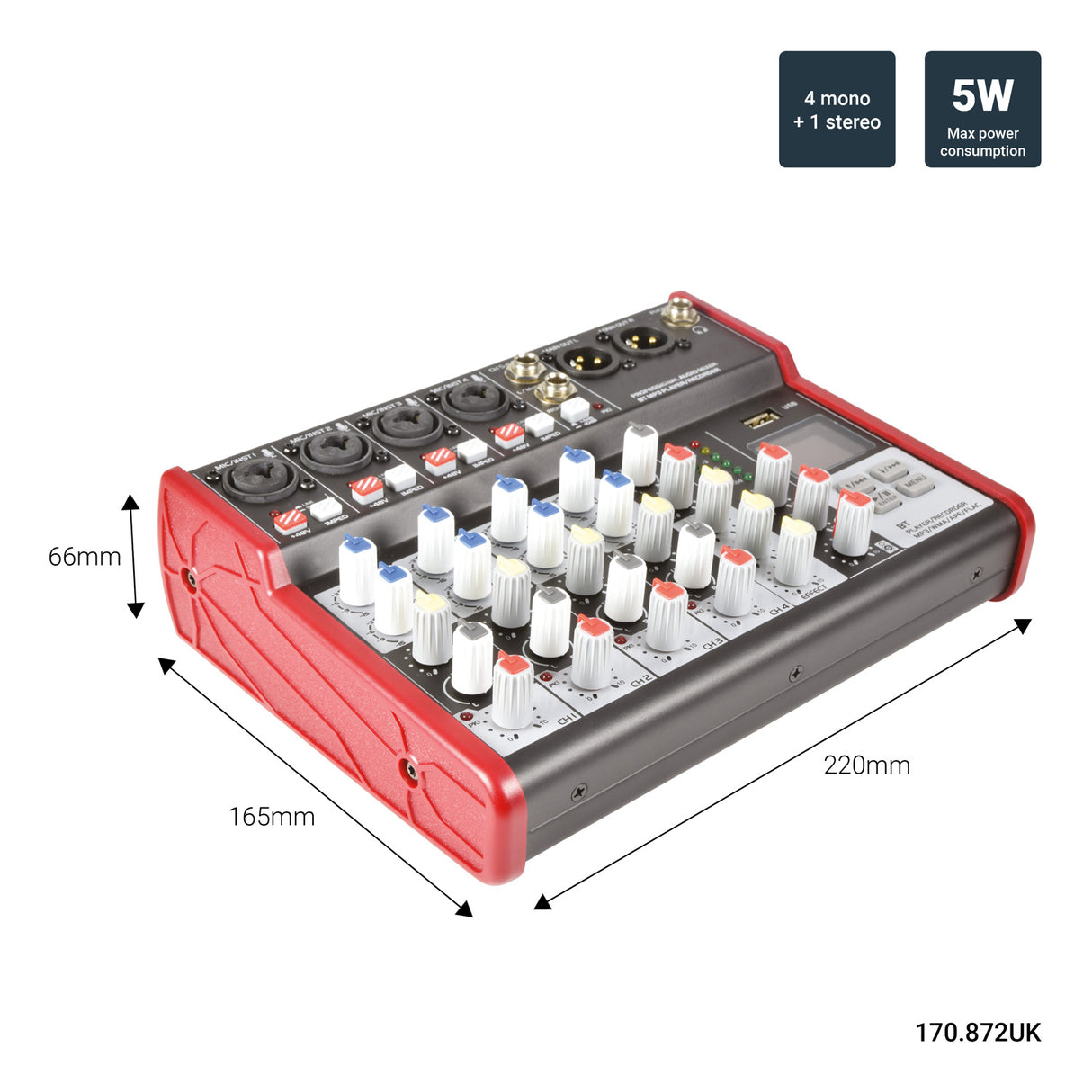

• Dimensions:220 x 165 x 66mm
• Power Consumption:Max. 5W

Ideal Uses & Applications

The CSM Compact Mixer is versatile enough for a variety of applications including:

• Domestic DIY Projects:Perfect for home recordings, ensuring professional-quality audio is attainable without the need for extensive equipment.
• Live Performances:Suited for musicians and bands performing live, the mixer's built-in effects and Bluetooth connectivity enhance the overall performance experience.
• Podcasting:Ideal for podcasters needing reliable audio mixing with the added benefit of USB playback and recording functionality.
• Commercial Settings:Use in small bars or cafes for entertainment or speaker events where high-quality audio is crucial.

Energy Efficiency & Cost Savings

This mixer not only boasts impressive audio capabilities but also emphasises energy efficiency. With a maximum power consumption of just 5W, it helps reduce electricity costs while still delivering top-notch performance. Additionally, its compact design reduces the need for multiple equipment pieces, further conserving resources and space.
