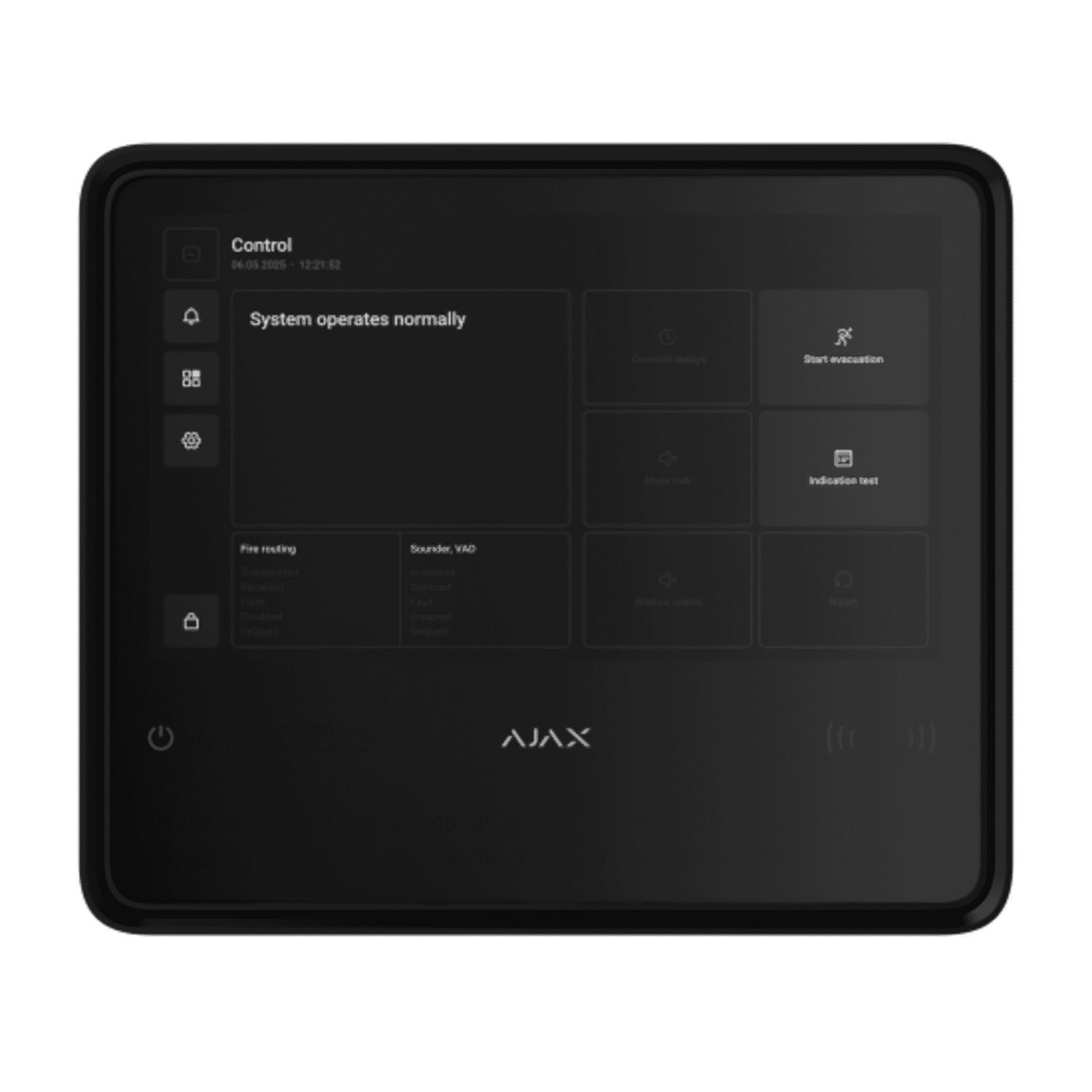

Ajax EN54 Fire Hub Jeweller, 10.1in IPS Touchscreen Wireless CIE 125733.315.BL

Introduction to the Ajax EN54 Fire Hub Jeweller and its key features

The Ajax EN54 Fire Hub Jeweller (model 125733.315.BL) is a professional-grade, EN54-certified wireless Control & Indicating Equipment (CIE) designed for modern commercial and municipal fire alarm installations. Built around a 10.1in IPS capacitive touchscreen, the unit brings local annunciation, clear event visualization and intuitive control to site staff while providing resilient remote reporting via Ethernet, Wi‑Fi and dual micro‑SIM cellular links. With support for up to 200 Ajax devices, 40 fire zones and a sizeable event log, the Fire Hub Jeweller blends the benefits of addressable fire panel functionality with the flexibility of a wireless ecosystem.

Key features at a glance

• EN54 certified— meets standards for fire alarm CIE used in commercial and municipal installations.
• 10.1in IPS capacitive touchscreen(1024×600) for local control, event annunciation and quick navigation.
• Resilient communications— Ethernet, integrated Wi‑Fi and dual micro‑SIM (auto-failover) for continuous monitored reporting to alarm receiving centres.
• Large capacity— support for up to 200 Ajax devices and up to 40 fire zones, plus an event log of up to 5,000 events.
• Radio telemetry— Jeweller protocol for reliable device telemetry and Wings for transporting larger packets such as photos and video.
• Programmable outputs— two relay outputs for fire and fault signalling; internal buzzer (≥60 dB @ 1 m) and tamper protection.
• EN54-grade battery options— internal Li‑ion batteries (7.4 V 5 Ah or 10 Ah) available separately to meet required autonomy.

Detailed specifications and benefits

The Fire Hub Jeweller’s 10.1in IPS capacitive touchscreen (1024×600 px) makes it simple for operators and first responders to view alarms, isolate zones and acknowledge events. The larger screen area compared with small keypad panels reduces training time and speeds up decision-making during critical events. The touchscreen supports clear event visualization and, when combined with Ajax’s user-friendly interface, streamlines day-to-day operation.

Designed for medium to large installations, the Fire Hub can handle up to 200 Ajax devices and up to 40 configurable fire zones. The unit stores up to 5,000 events in its log and supports up to 64 automation scenarios — useful for linking detection events to building actions (for example, fan shutdown or door release). These capacities make the Fire Hub suitable for multi-discipline security and life-safety systems where both scale and detailed history are required.

Continuous and reliable reporting to monitoring stations is essential for regulated fire alarm systems. The Fire Hub includes 100 Mbps Ethernet and integrated Wi‑Fi (client/AP modes), plus two micro‑SIM slots for cellular failover (2G/3G/4G depending on region and operator support). Dual-SIM auto-failover ensures that if one network fails, the other can carry monitoring traffic, improving redundancy for monitored reporting.

Ajax uses two radio protocols: Jeweller for low-latency telemetry (device status, alarms, supervision) and Wings for larger data packets such as photos and video. The reported open-space range of up to ~1,800 m (environment dependent) allows flexible installation of detectors and peripherals without the need for extensive cabling, while maintaining reliable communication across a site.

Mains supply is standard 110–240 V~, 50/60 Hz. EN54-grade internal Li‑ion batteries (7.4 V 5 Ah or 10 Ah) are sold separately; expected autonomy is approximately 24 hours with a 5 Ah pack or 72 hours with a 10 Ah pack. Two programmable relay outputs are provided for connecting to building systems or auxiliary sounders, and the panel includes an internal buzzer (≥60 dB @ 1 m) for local alerting and tamper protection to guard against unauthorized access.

The enclosure is flame-retardant (UL 94 V‑0 as per datasheet) and designed for indoor use (IP20) with approximate dimensions of 263 × 223 × 54 mm and weight around 1.526 kg. Operating temperature is typically −10 °C to +40 °C, and the product is intended for professional installation in controlled indoor environments.

Use cases and scenarios where the Fire Hub excels

The Ajax EN54 Fire Hub Jeweller is particularly well suited to installations that need the flexibility of wireless devices combined with the assurance of EN54 certification. Typical use cases include:

• Office buildings and corporate campuses:Rapid deployment across multiple floors and wings without disruptive rewiring, with centralized touchscreen control for reception and facilities teams.
• Retail and shopping centres:Flexible zoning and device placement for atriums, shopfronts and storerooms, with monitored reporting to retail security operations centres.
• Healthcare facilities and care homes:A user-friendly interface for staff, failover communications for high-reliability monitoring and battery-backed autonomy for patient safety.
• Education and campus environments:Scalable capacity for multiple buildings and dormitories, integration with access control and building automation scenarios (HVAC shutdown, lighting control during alarm events).
• Heritage or retrofit projects:Wireless detectors avoid intrusive cabling in listed buildings while meeting EN54 standards for life-safety reporting.
• Mixed security and life-safety systems:Integration with Ajax intrusion, automation and video devices allows a unified security platform managed from one touchscreen and remote monitoring station.

How it compares with similar products on the market

When evaluating the Fire Hub against alternatives, consider three general comparisons: traditional wired EN54 addressable panels, other wireless EN54-certified CIEs, and non-EN54 wireless control hubs.

Wired panels remain the benchmark for dense, high-reliability installations. They offer proven cabling infrastructure and often greater device counts per loop. The Fire Hub’s advantage is reduced installation time and disruption, especially in renovations or where cabling is impractical. For sites where cabling costs or building constraints dominate, the Fire Hub provides a competitive alternative while maintaining EN54 certification.

Not all wireless control panels deliver an intuitive local interface or the same level of communications redundancy. The Fire Hub’s 10.1in touchscreen is larger than many compact keypad panels, and its dual-SIM plus Ethernet/Wi‑Fi options deliver strong failover capability. Additionally, the combination of Jeweller and Wings protocols gives both low-latency telemetry and the option to handle larger data payloads from cameras—an edge in installations that combine video verification with fire detection.

Non-EN54 hubs (often used for intrusion and automation) cannot be used where EN54 certification is required by regulation. The Fire Hub fills that market need by offering wireless convenience while meeting EN54 standards for life-safety control and reporting, making it suitable for regulated commercial and public sector projects.

Customer feedback and testimonials

Publicly available formal customer reviews for this specific EN54 Fire Hub model may be limited given the professional-installation market and channel distribution. Below are anonymized, illustrative comments based on common feedback themes from installers and end-users working with Ajax EN54 solutions:

• Facilities manager (regional hospital):"The touchscreen makes response straightforward for on-site staff, and the dual-SIM configuration has already provided failover during a brief ISP outage—critical for monitored alarm signalling."
• Systems integrator (commercial projects):"We appreciate the wireless range and the ability to mix detectors, intrusion sensors and cameras on the same platform. It speeds up installs and simplifies maintenance."
• Heritage building owner:"Avoiding trunking and cable runs in protected walls was a major benefit. The Fire Hub let us meet regulations without harming the building fabric."

Note: These quotes are representative and anonymized to convey typical experiences; individual site performance depends on installation design, radio conditions and monitoring station integration.

Important deployment notes

• Professional installation required:The unit is intended for certified installers familiar with EN54 systems and monitoring station integration.
• Batteries sold separately:Internal EN54-grade Li‑ion battery options (5 Ah or 10 Ah) must be purchased to meet specific autonomy requirements.
• Check cellular compatibility:Confirm regional cellular band support with your supplier and monitoring station before deployment.

Conclusion: why the Ajax EN54 Fire Hub Jeweller is a strong choice

The Ajax EN54 Fire Hub Jeweller combines EN54 certification, a large intuitive touchscreen and robust multi-channel communications into a single wireless CIE designed for contemporary commercial and municipal sites. Its capacity to support up to 200 devices and 40 zones, plus dual-radio protocols for both telemetry and larger media, makes it a flexible solution for installations that require both life-safety compliance and modern security integration.

For projects where minimizing installation disruption, enabling fast deployment and ensuring monitored reporting redundancy are priorities, the Fire Hub presents a compelling choice. As with any life-safety system, successful outcomes depend on professional design and installation, correct battery provisioning and confirmation of monitoring station compatibility. When those considerations are addressed, the Ajax EN54 Fire Hub Jeweller offers a modern, scalable and resilient platform for protecting people and property.
