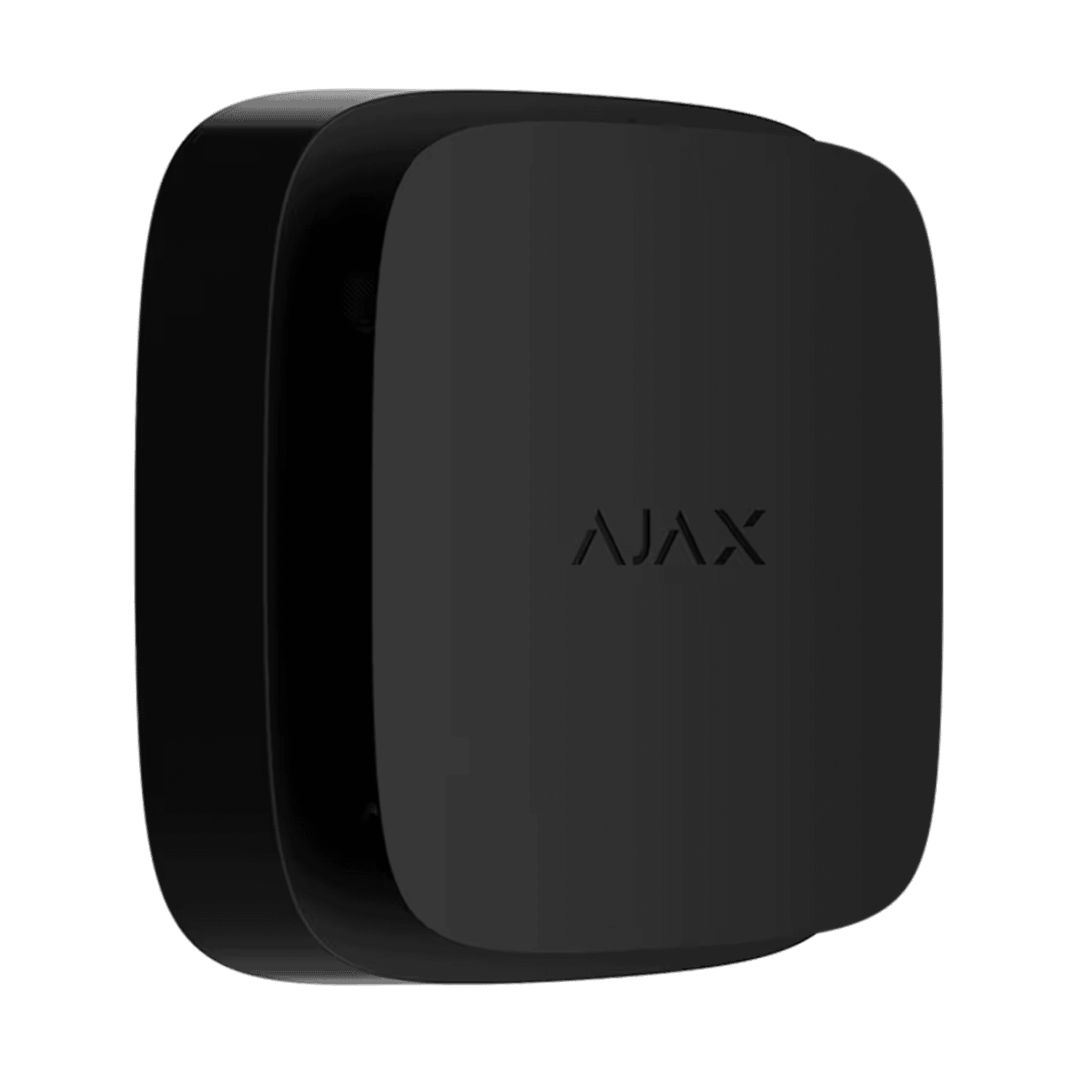

Introduction to the Ajax EN54 FireProtect Heat/Sounder Jeweller (Black)
Ajax EN54 FireProtect (Heat/Sounder) Jeweller — Blackis an addressable, wireless heat detector with an integrated audible sounder designed for indoor fire detection as part of an Ajax EN54 system. Built to meet EN54 standards for heat detection and to communicate over Ajax's Jeweller wireless protocol, this device combines certification-grade sensing, a loud local alarm, and remote management via Ajax apps. It’s intended for installations where a reliable, EN54-certified heat detection solution is required with the convenience of wireless deployment.
Key features at a glance
- EN54-certified heat detection(EN54-5) and compatible with EN54-25 addressable communications.
- Dual thermistor sensorswith selectable EN54 heat response modes for tailored detection behavior.
- Integrated sounderoffering selectable tones and strong local audible output for immediate occupant notification.
- Jeweller wireless communicationfor fast alarm transmission (open-space range up to ~1,700 m; environment dependent).
- Battery poweredwith 2× CR123A cells pre-installed and typical battery life up to ~5 years depending on settings.
- SmartBracket tamperfor easy, tool-free installation and tamper detection.
Detailed specifications and benefits
The Ajax EN54 FireProtect Heat/Sounder Jeweller is engineered to balance certification-grade detection with real-world installation flexibility. Below are the main technical specifications and the practical benefits they bring.
The unit uses two thermistor-based heat sensors and supports selectable EN54-5 response modes (A1/A1R/A1S/B/BR/BS/C/CR/CS) as well as fixed temperature modes. This degree of configurability allows installers to match detection behavior to the risk profile of the protected area — for example, faster responses where rapid heat rise indicates real danger or more tolerant modes where transient heat sources could otherwise cause false alarms.
Benefit: EN54-5 certification provides a recognized standard of performance for projects that require compliance with European fire detection norms. The compatibility with EN54-25 addressable communications means it can be integrated into certified, networked systems where each detector is addressed and supervised.
The built-in sounder provides a high sound output (commonly listed around ~85 dB at 1 m) and selectable tones (numerous tone options commonly up to 32). Immediate local notification complements remote alarm signaling to the control panel, increasing the chance occupants will be alerted quickly even before responders arrive.
Benefit: A combined detector and sounder reduces the need for separate devices and wiring. Selectable tones help meet site-specific audible signaling requirements and reduce nuisance confusion in multi-device systems.
Communication uses Ajax’s Jeweller protocol with an open-space range up to approximately 1,700 m (actual range depends on site topology and interference). Alarm transmission is typically within ~3 seconds from detection to control equipment notification.
Benefit: Long wireless range and fast reporting enable flexible placement and rapid response integration with Ajax control panels. Wireless installation reduces cabling cost and disruption, especially in retrofit or heritage buildings.
The device is powered by two CR123A batteries that come pre-installed. Typical battery life is up to ~5 years depending on reporting frequency, alarm events, and chosen settings. SmartBracket mounting allows tool-free replacement and includes tamper detection to flag unauthorized removal.
Benefit: Long battery life lowers maintenance frequency; pre-installed cells simplify first-time setup. Tamper protection supports system integrity and site security.
Operating temperature is listed as -10 °C to +50 °C and humidity tolerance up to ~80% RH (refer to the official datasheet for exact conditions). The device commonly appears with an IP21C rating, and dimensions and weights are given as approximate values — check the product datasheet for SKU-specific figures.
Benefit: Suitable for many indoor commercial and residential environments; verify exact IP and environmental limits for placement in marginal spaces (e.g., unheated garages or highly humid areas).
Where this product excels — use cases and scenarios
- Kitchens and food-prep areas— In restaurants, cafes, and commercial kitchens where smoke detectors frequently trigger false alarms from cooking aerosols, a heat detector with EN54 certification provides reliable detection of hazardous temperature rises without nuisance alarms.
- Workshops, garages, and dusty industrial areas— Places with airborne dust, fumes, or particulates that can impair smoke detection benefit from heat-based detection which is less prone to contamination-related false alarms.
- Residential flats and apartment corridors— Where regulations or project specifications call for EN54-compliant devices or where centralized EN54 systems are installed, this device offers wireless, addressable integration and local alarm sound.
- Retrofits and heritage buildings— Wireless operation avoids invasive cabling runs, preserving finishes while providing certified detection performance.
- Supplementing smoke detection— In mixed-risk environments, pairing heat detectors with smoke detectors can provide layered detection: smoke detectors for early smouldering fires and heat detectors for flaming fires or high-smoke environments.
Comparisons with similar products on the market
When evaluating the Ajax EN54 FireProtect Heat/Sounder against other solutions, consider three main axes: certification & compliance, installation flexibility, and detection behavior.
Wired EN54 heat detectors and sounders typically offer continuous power (no battery changes) and proven compatibility with conventional addressable loops. However, they require cable runs, junctions, and more labor during installation. Ajax FireProtect offers comparable EN54 heat detection performance while significantly reducing installation disruption through wireless communications — a clear advantage in retrofits and where cabling is impractical.
Competing wireless heat detectors vary in communication range, certification, and ecosystem integration. Ajax’s Jeweller protocol emphasizes long-range communications and low latency alarm reporting (typically within ~3 seconds). If a project requires a certified, addressable wireless EN54 setup, this device stands out for its EN54-5 heat certification and EN54-25 communications compatibility — not all wireless detectors provide both certifications.
Smoke detectors are more sensitive to smouldering fires and provide earlier warning in many scenarios, but are prone to false alarms in kitchens and dusty workshops. Heat detectors like the Ajax FireProtect excel where smoke detectors would nuisance-trigger. The best choice often involves a mix: smoke detectors where early detection is essential, and heat detectors where the environment would otherwise cause false alarms.
Customer feedback and typical review themes
Direct user testimonials for this exact SKU may vary by market and installer. Commonly reported strengths from installers and end users of Ajax EN54 Heat/Sounder devices include:
- Easy installation:Installers frequently cite the SmartBracket and wireless setup as time-savers compared with wired alternatives.
- Reliable reporting:Integrators appreciate the rapid alarm transmission over Jeweller and predictable behavior under EN54 modes.
- Reduced false alarms:In food-service and dusty environments, users note fewer nuisance triggers compared with smoke detectors.
- Good local alerting:The integrated sounder is highlighted as loud enough to alert occupants in typical rooms.
Note: These themes reflect typical industry feedback and installer commentary for similarly specified devices. For specific, verifiable reviews and case studies, check retailer listings, integrator testimonials, or Ajax-authorized installer references in your region.
Conclusion — why choose the Ajax EN54 FireProtect Heat/Sounder Jeweller?
The Ajax EN54 FireProtect Heat/Sounder Jeweller (Black) is a compelling option when you need an EN54-certified heat detection device with the flexibility of wireless installation and the convenience of an integrated audible alarm. Its configurable EN54 response modes, dual thermistor sensing, long wireless range over Jeweller, and generally long battery life make it suitable for commercial kitchens, workshops, retrofits, and projects requiring compliance with EN54 standards.
Choose this device if you value fast alarm reporting, reduced cabling, and a certified approach to heat detection. As always, confirm exact technical tables, IP rating, mounting guidance, and certificate copies via the official Ajax EN54 datasheet when planning installation and commissioning to ensure compliance with local regulations and project requirements.
Model / SKU:119916.274.BL1 / ITM006084 — Suggested price: 139.99 (verify current pricing and availability with your supplier).
