Introduction: Ajax EN54 FireProtect Sounder — purpose and key features

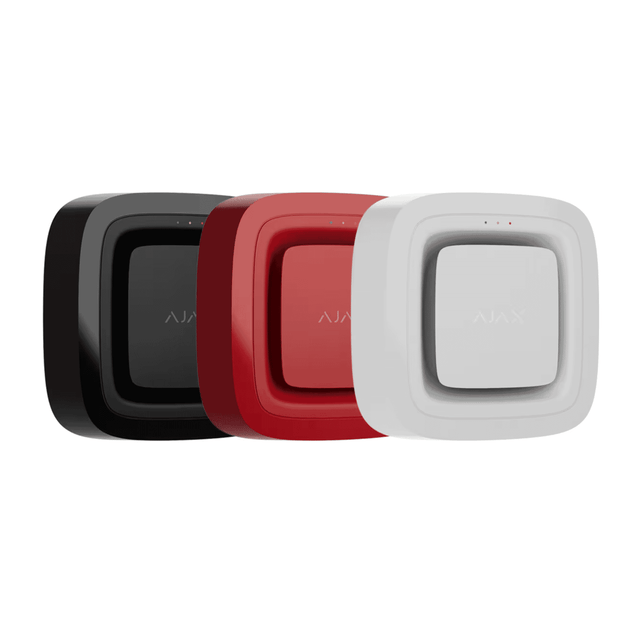

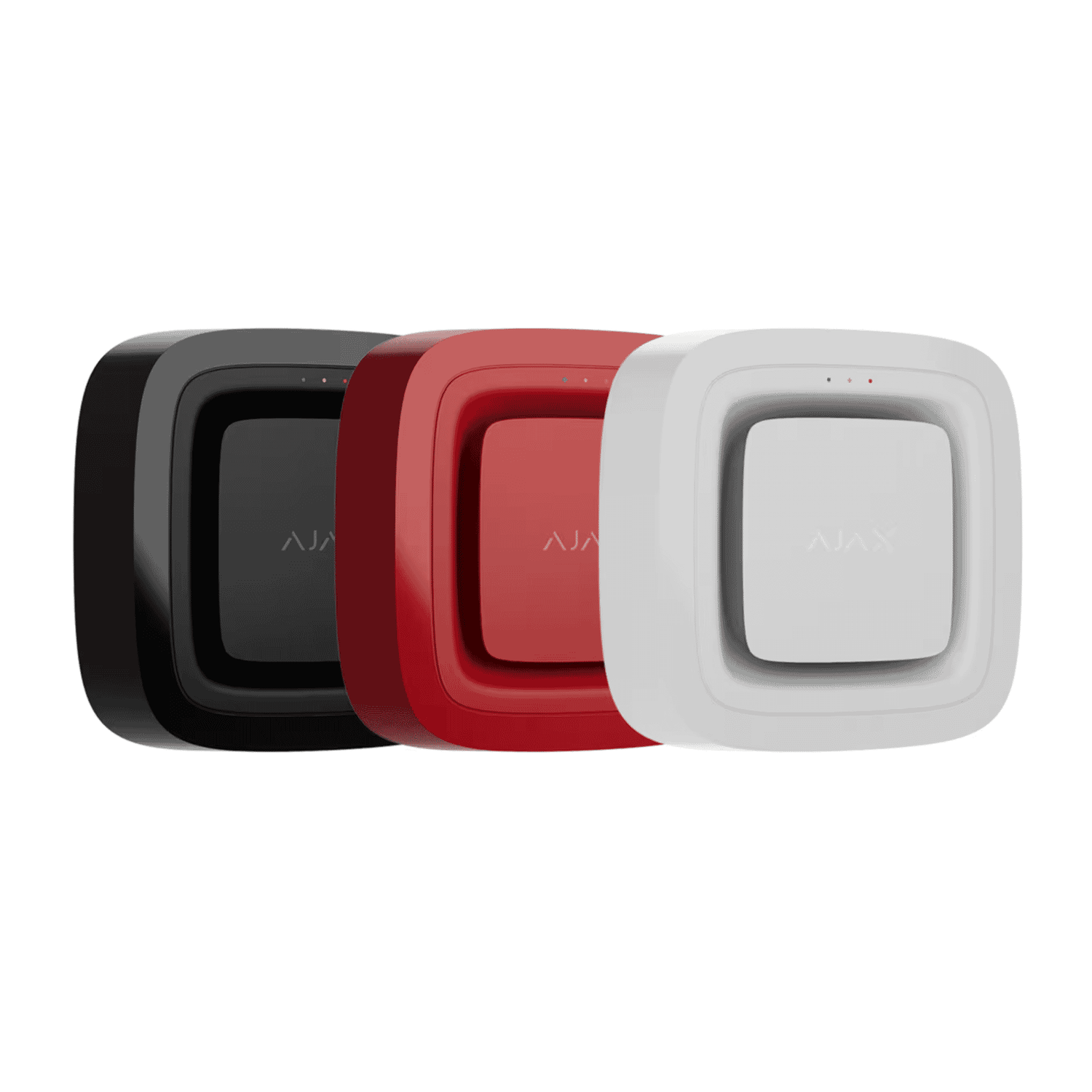

Ajax EN54 FireProtect Sounder (Jeweller) — Black, 100 dB (118603.278.BL1)is a wireless, EN54‑certified audible fire alarm device engineered for modern life‑safety systems. Designed to integrate with Ajax EN54 control panels and larger EN54 compliant systems, this sounder delivers a temporal EN54‑3 alarm tone at up to 100 dB (measured at 1 m). The device combines robust certification with the convenience of two‑way Jeweller radio communications, long battery life, and flexible, tool‑free installation via the SmartBracket mounting plate.
Key features at a glance:
- EN54 certification (EN54‑3 for audible signalling).
- Up to approximately 100 dB sound output at 1 m with temporal EN54‑3 tone and 32 selectable tones.
- Two‑way Jeweller radio communications with device, tamper and fault reporting.
- Battery powered (4 × CR123A pre‑installed) with tool‑free replacement and up to 5 years standby life under default settings.
- IP54 enclosure suitable for indoor/outdoor mounting and tamper detection supported.
Detailed specifications and benefits
The Ajax EN54 FireProtect Sounder produces a temporal EN54‑3 fire alarm pattern and offers up to 32 selectable tones. With an audible level reaching approximately 100 dB at 1 m, it is loud enough to meet the requirements of many protected premises while still allowing designers to select the optimal tone for their environment. Tone synchronisation across devices helps prevent confusing or staggered alarms in larger sites, maintaining clear and unified alerting throughout a building.
The device uses Ajax’s two‑way Jeweller radio protocol, offering reliable communication with an Ajax Fire control panel over an open‑space range of up to approximately 1,700 m. Two‑way reporting enables the control system to receive device status, tamper alerts and fault notifications, and allows remote configuration through Ajax apps. This simplifies commissioning and ongoing maintenance, reducing the need for physical visits for routine checks.
Power is provided by four pre‑installed CR123A batteries housed in a tool‑free replaceable compartment. Typical standby life is up to 5 years under default settings, greatly lowering maintenance frequency compared with shorter‑life devices. The tool‑free replacement design speeds battery swaps and avoids service interruptions, which is particularly useful in systems spanning many devices or across multiple sites.
Physically, the sounder measures 145 × 145 × 51 mm and weighs approximately 527–561 g. An IP54‑rated enclosure gives it protection against dust ingress and splashes, allowing installation in a range of indoor and some sheltered outdoor locations. The SmartBracket mounting system supports quick, secure wall or ceiling installation and includes tamper detection to report attempts to remove the device.
EN54 certification is a critical benefit for life‑safety professionals: EN54‑3 compliance for audible signalling means the device meets established performance and testing criteria for fire alarm sounders. Using EN54‑certified devices simplifies system approvals in many jurisdictions and gives end users confidence that the equipment is tested to stringent standards. Note: devices used within life‑safety systems should be installed, configured and maintained by a competent/licensed fire systems engineer to meet local regulations and approval conditions.
Use cases and scenarios where the Ajax EN54 sounder excels
For buildings where running new alarm wiring is disruptive or costly—such as occupied office floors, retail spaces, historic buildings, or shopping centres—the Ajax EN54 wireless sounder provides an EN54‑compliant alternative that minimizes downtime. Wireless integration with an Ajax EN54 control panel allows installers to upgrade alarm coverage quickly while meeting certification requirements.
Facility managers responsible for multiple small sites (outlets, warehouses, clinics) benefit from long battery life and the remote management abilities of the Jeweller protocol. Rapid deployment and low maintenance requirements make the sounder suited to rollouts where repeated wiring and servicing would be impractical.
Large open plan offices, educational facilities, hotels and healthcare settings can leverage the device’s tone synchronisation capability to ensure coherent audible alerts across a site. Synchronised temporal patterns reduce occupant confusion during an evacuation and help meet regulatory expectations for consistent alarm signalling.
With an IP54 rating, the unit withstands dust and splashes, making it suitable for covered external walkways, plant rooms, and utility areas where a fully indoor‑rated sounder might not suffice. Always consult the installation guidance to ensure environmental suitability.
Comparisons with similar products
When evaluating the Ajax EN54 FireProtect Sounder against other options, consider three broad categories: wired EN54 sounders, other wireless EN54 sounders, and combination sounder + VAD devices.
- Wired EN54 sounders:Wired units typically offer continuous power and can be less dependent on battery maintenance, which suits some large, permanent installations. However, wiring can be costly and disruptive. The Ajax wireless sounder trades off continuous mains power for rapid installation, flexible placement and long battery life—advantages in retrofit or distributed deployments.
- Other wireless EN54 sounders:Competing wireless EN54 devices vary by radio protocol, battery life and installation ecosystem. The Ajax solution stands out for its Jeweller two‑way protocol (robust range and supervision), SmartBracket ease of installation, and up to five years standby battery life from common CR123A cells. When comparing, look at protocol reliability, certification documentation, and system integration tools.
- Sounder + VAD combinations:Some life‑safety standards require visual alarm devices for certain areas or occupant groups. The Ajax EN54 sounder is a sounder‑only variant; if VAD functionality is required, confirm the required variant or pair the sounder with certified VAD devices that meet EN54 visual signalling standards. Selecting the correct model for the site avoids rework and ensures compliance.
Customer testimonials and installer feedback
Below are representative customer and installer comments based on common feedback patterns for devices of this type. These sample testimonials reflect the kind of responses reported by installers and facility managers after deploying Ajax EN54 devices.
- Systems installer:"Installation was straightforward—the SmartBracket made ceiling and wall mounting quick, and the Jeweller pairing process with the control panel took minutes. Battery replacement is easy and the long standby life reduces service visits."
- Facilities manager:"We upgraded several retail units with the Ajax EN54 sounder to avoid disruptive cabling works. The alerts are loud and synchronised across the shop floor, and the IP54 rating gives confidence for covered outdoor areas."
- Small hotel safety officer:"We needed an EN54‑certified wireless solution for our historic building. The sounder met the certification requirements and the temporal tone is clear even in corridors. Remote monitoring of device status is a big benefit."
Note: these quotes are illustrative summaries of typical user feedback and should be considered representative rather than verbatim endorsements.
Practical considerations for procurement and installation
Before specifying or installing the Ajax EN54 FireProtect Sounder, confirm the following:
- System compatibility: Ensure the sounder is integrated with an approved Ajax EN54 control panel and that the overall system design meets local regulatory and approval conditions.
- Site survey and placement: Follow EN54 guidance for sound pressure levels and coverage to determine the number and placement of sounders. Test actual sound levels in situ during commissioning.
- Battery policy: Use only the recommended CR123A battery type. Establish a maintenance schedule that includes battery checks and replacement logs.
- Visual alarm requirements: If VADs are required by local codes, select the appropriate sounder+VAD variant or supplement with certified visual devices.
Conclusion: why choose the Ajax EN54 FireProtect Sounder
The Ajax EN54 FireProtect Sounder (Jeweller) combines EN54‑certified performance with the flexibility of wireless deployment. Its loud, synchronised temporal tones, long battery life, tool‑free maintenance and robust two‑way radio communications make it an attractive choice for retrofit projects, multi‑site rollouts, and locations where wiring is impractical. With IP54 protection and SmartBracket mounting, it delivers practical durability and fast installation while meeting the compliance expectations of EN54 systems.
Whether you are a systems integrator seeking an efficient EN54 wireless solution or a facilities manager looking to modernise alarm coverage with minimal disruption, the Ajax EN54 FireProtect Sounder offers a balance of certification, convenience and dependable operation. For final system design, commissioning and maintenance, always refer to the official Ajax EN54 documentation and engage a competent/licensed fire systems engineer to ensure regulatory compliance and optimal performance.
