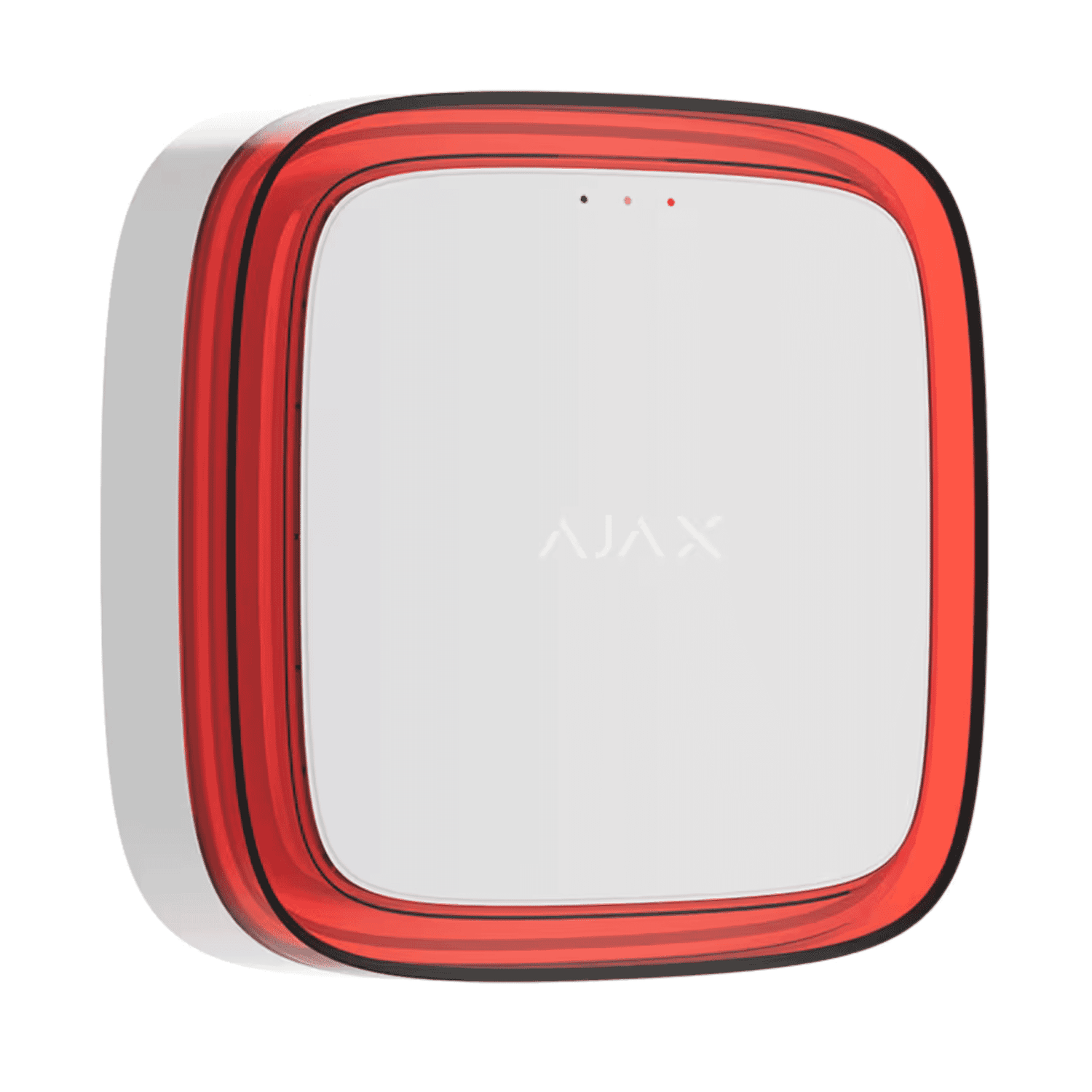

Ajax EN54 FireProtect Sounder + VAD Jeweller, White, 100 dB, 4×CR123A, 118599.279.WH1

Introduction to the Ajax EN54 FireProtect Sounder + VAD (Jeweller)

Ajax EN54 FireProtect Sounder + VAD (Jeweller)is a wireless, addressable alarm device that combines a powerful audible sounder with a high‑intensity visual alarm device (VAD). Designed and certified for professional fire alarm installations, this unit meets EN54 standards and is built to deliver reliable, standards‑compliant signalling in a variety of commercial and public settings. The device uses Ajaxs Jeweller two‑way radio protocol for encrypted communication and fast alarm reporting, while remaining compact and simple to install thanks to tool‑free battery replacement and SmartBracket mounting.

Key features at a glance

• EN54‑3, EN54‑23 and EN54‑25 certified for use in regulated fire alarm systems.
• Combined sounder and visual alarm (Sounder + VAD) with up to 100 dB sound output.
• Jeweller two‑way encrypted radio protocol with up to 1,700 m open‑space range (region dependent).
• 32 selectable tones including EN54‑3 temporal pattern and synchronized LED flash at 0.5 Hz.
• Battery powered (4 × CR123A, pre‑installed) with multi‑year life and tool‑free replacement.
• SmartBracket mounting for wall or ceiling, anti‑tamper detection and optional locking.

Detailed description: specifications and benefits

The Ajax EN54 Sounder + VAD brings together technical compliance and practical design. Below are the core specifications and the real‑world benefits they deliver.

• Device type: Wireless addressable sounder + VAD (Sounder/VAD)
• Standards: EN54‑3, EN54‑23, EN54‑25; RED (2014/53/EU)
• Sound output: Up to 100 dB (measured at 1 m)
• Sound patterns: 32 selectable tones (EN54‑3 temporal pattern supported)
• Visual alarm: High‑intensity LED frame, 90 ms ON / 1,910 ms OFF (0.5 Hz)
• Communication protocol: Jeweller two‑way encrypted radio
• Radio bands: Region dependent (examples: 866.0–866.5 MHz; 868.0–868.6 MHz; 868.7–869.2 MHz; 915.85–926.5 MHz)
• Radio range: Up to 1,700 m open space (typical, region dependent)
• Power source: 4 × CR123A batteries (pre‑installed), tool‑free replacement
• Battery life: Multi‑year (manufacturer dependent; check datasheet for configuration specifics)
• Mounting: SmartBracket for wall or ceiling; up to 90 rotation; tamper switch
• Coverage (example): Ceiling‑mount diameter ~8 m at 3.0 m height (see datasheet for full coverage tables)
• Dimensions: 145 × 145 × 51 mm
• Weight: ≈561 g
• Ingress protection: IP54
• Operating temperature: Typical −10 C to +50 C (check datasheet for certified limits)
• Colour: White; SKU / Model: 118599.279.WH1

• Standards compliance:EN54 certification is essential for many commercial and public buildings. Certification to EN54‑3 (sounders), EN54‑23 (visual alarm devices) and EN54‑25 (components of voice alarm systems and compatibility) assures installers and authorities that the device meets stringent performance and safety criteria.
• High audible output and selectable tones:With up to 100 dB and 32 tones, you can tailor the device to the acoustic profile of the space. The EN54‑3 temporal pattern is included for conformity with regulated alarm signalling.
• Effective visual signalling:The high‑intensity LED frame provides a clear visual alarm at a standard flash rate (0.5 Hz) and synchronises across multiple devices to avoid confusing flashing patterns in linked installations.
• Wireless reliability and security:Jeweller protocol offers two‑way encrypted communication, automatic power adjustment, and prompt alarm reporting. For many retrofit or hard‑to‑wire installations, this brings the benefits of addressable signalling without the disruption and cost of running new cables.
• Battery operation and low maintenance:Pre‑installed CR123A batteries and tool‑free replacement keep maintenance straightforward. Multi‑year battery life reduces routine service visits compared with consumer devices, though exact longevity depends on configuration and reporting frequency.
• Flexible mounting and tamper protection:SmartBracket supports wall or ceiling mounting and includes a tamper switch and optional lock to deter interference in public installations.

Use cases and scenarios where the product excels

The Ajax EN54 Sounder + VAD is particularly well suited to environments that require certified signalling plus wireless flexibility. Typical deployment scenarios include:

• Commercial buildings and offices:Office floors, retail spaces and small commercial units can benefit from the devices clear audible and visual output without major rewiring. EN54 certification ensures the device integrates into formal fire systems where required.
• Public and communal areas:Waiting rooms, lobbies, corridors and stairwells where high ambient noise or sightlines make visual alarms necessary. The VAD supports inclusion for people with hearing impairment.
• Refurbishments and retrofits:Heritage buildings, tenant fit-outs and listed properties often restrict cable runs; a wireless EN54 device provides a compliant option with minimal impact to fabric and aesthetics.
• Noisy environments:Warehouses, mechanical plant rooms and workshops where a 100 dB output and selectable tones help ensure alarms are noticed above background noise.
• Temporary or modular sites:Temporary offices, construction trailers and event spaces where a certified, removable alarm solution is needed.
• Distributed systems with synchronisation needs:When multiple units must present a consistent, synchronised visual pattern (to avoid strobing confusion), the devices synchronisation capability is advantageous.

Comparisons with similar products on the market

When choosing a sounder/VAD for a professional installation you will typically weigh wired EN54 devices against wireless alternatives and compare product ecosystems. Here are the main comparisons to consider:

• Wired EN54 sounders/VADs:Wired devices are traditionally chosen for new builds due to permanent power and networked signalling. They avoid battery maintenance but can be far more expensive to install in existing buildings due to cable runs and disruption. The Ajax EN54 Sounder + VAD offers a compromise for retrofits: EN54 compliance with wireless connectivity, lowering installation time and cost while maintaining certification.
• Other wireless EN54 solutions:Wireless certified devices from other vendors can offer similar benefits. Key differentiators for Ajax are the Jeweller protocols encrypted two‑way communication, automatic power adjustment for radio reliability, and the Ajax ecosystems focus on simple commissioning. When comparing, check radio band compatibility, supported ranges, certification details, and whether synchronisation across devices is supported.
• Consumer alarm sounders or uncertified wireless units:Consumer units are often cheaper but lack EN54 certification and the performance guarantees required by many commercial and public projects. For any regulated installation, certified devices like the Ajax EN54 unit are preferred to meet code and insurer requirements.
• Battery life and maintenance:Some competitors may claim longer battery life through different chemistries or lower reporting frequencies. In practice, battery longevity depends on configuration, reporting cadence and environmental conditions. The Ajax device balances multi‑year battery operation with frequent reporting and encrypted communications.

Customer feedback and reviews

Although individual reviews vary by installation context, common themes emerge from installers and end users who have worked with EN54‑certified wireless sounder/VADs like this Ajax unit:

• Ease of installation:Installers often highlight the reduced labour and disruption compared with wired systems. SmartBracket and tool‑free battery replacement are frequently praised for simplifying site work.
• Reliable signalling:End users report that the combination of a loud sound output and bright VAD frame is effective in both noisy and open spaces, improving occupant response times during drills and incidents.
• Radio planning is important:A small number of feedback notes emphasise the need for proper radio coverage planning—walls, metals and building topology can affect range—so pre‑installation surveys and compliance checks are recommended.
• Professional compliance:Customers specifying EN54 equipment appreciate the peace of mind that comes with certification for regulated projects and insurer requirements.

Conclusion: why the Ajax EN54 FireProtect Sounder + VAD is a strong choice

The Ajax EN54 FireProtect Sounder + VAD (Jeweller) is a compelling solution for projects that require EN54‑certified audible and visual alarm signalling combined with the flexibility of wireless deployment. It blends high performance (up to 100 dB and a high‑intensity VAD), secure and robust wireless communications, and practical installation features like SmartBracket mounting and tool‑free battery access. For retrofits, temporary sites, or installations where running new cabling is impractical, it provides a standards‑compliant alternative to wired systems. Proper radio planning and adherence to local fire regulations will ensure the device performs as intended, delivering reliable alarm signalling and meeting the needs of occupants and authorities alike.

Summary:If you need a certified, dependable sounder with visual alarm capability that is quick to install and integrates into professional alarm systems, the Ajax EN54 FireProtect Sounder + VAD is a versatile, standards‑compliant choice that balances performance, security and convenience.
