Introduction: Ajax EN54 FireProtect Wireless Sounder — what it is and why it matters

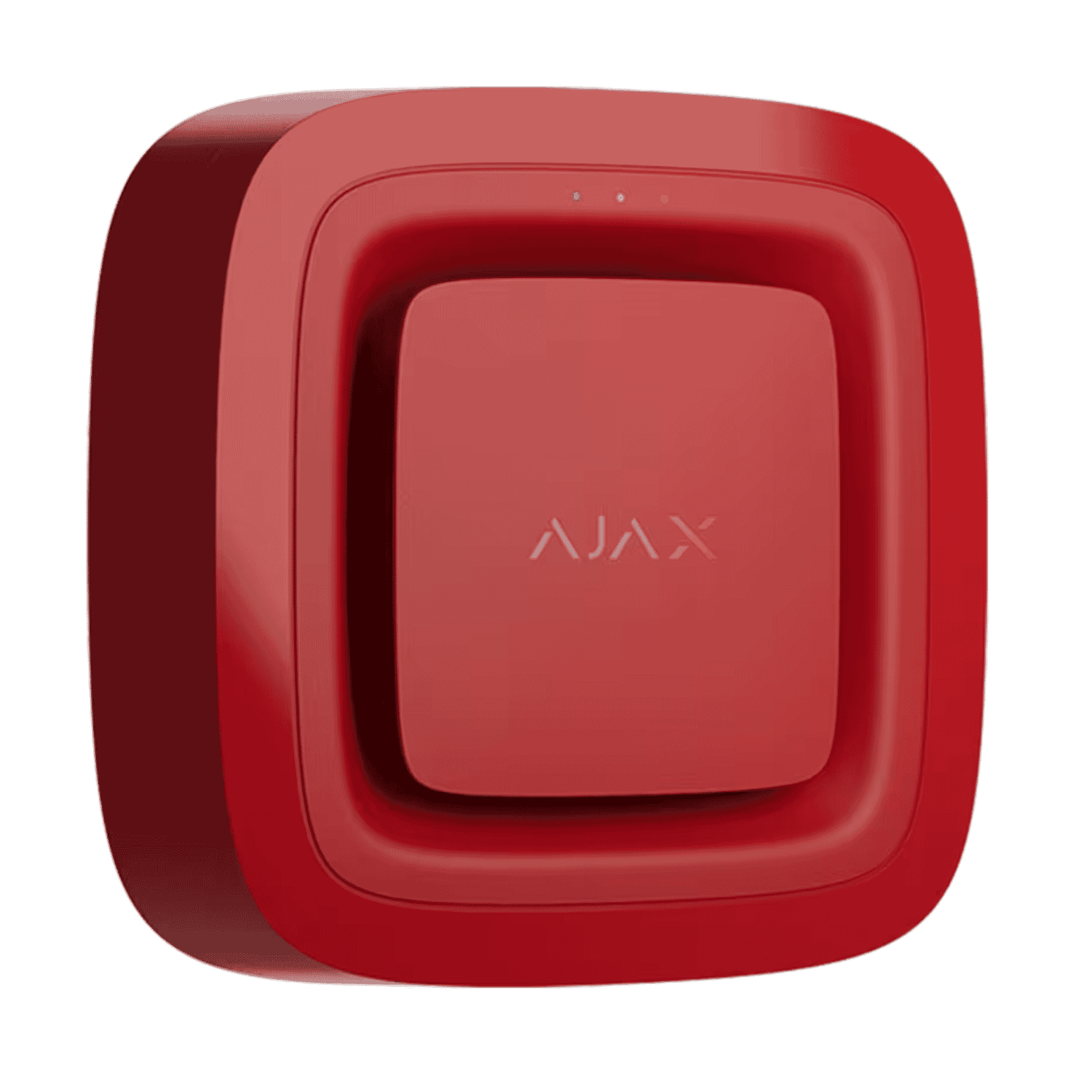

Ajax EN54 FireProtect Wireless Sounder (Red) — model 118604.278.RD1is an EN54‑certified, battery‑powered addressable fire alarm sounder designed to be used as part of an Ajax EN54 fire system. Built for sites that require EN54 compliance but benefit from wireless deployment, this device provides a high‑volume local audible alarm, selectable tones and levels, two‑way supervised radio communication via the Jeweller protocol, and fast, tool‑free installation using Ajaxs SmartBracket. Whether youre specifying a new commercial installation, upgrading a residential system, or retrofitting a historic building where running cables is difficult, this sounder aims to combine certification, flexibility and installer‑friendly design.
Key features at a glance
- EN54 family certifiedaudio annunciation suitable for compliant installations (EN54‑3 applies).
- Jeweller two‑way radiofor addressability, supervision and long open‑space range (advertised up to ~1,700 m).
- High sound output— up to ~100 dB at 1 m with dozens of selectable tones and alarm synchronisation options.
- Battery powered(pre‑installed CR123A cells) with tool‑free replacement and long service life (typ. up to ~5 years depending on settings).
- SmartBracket mountfor quick wall or ceiling installation, tamper detection and optional mechanical locking.
- SKU specific: red variant 118604.278.RD1 (confirm regional radio variant prior to sale/installation).
Detailed specifications and practical benefits
- Protocol:Jeweller two‑way radio — provides addressability, regular supervision, encrypted communication and acknowledged reporting between the sounder and a compatible Ajax EN54 Fire Hub (CIE).
- Range:Up to ~1,700 m in open space (advertised). In practice, building materials and layout will reduce range; site surveys and repeater use should be considered for large or obstructed sites.
- Max sound level:Up to ~100 dB at 1 m (model/setting dependent) — powerful enough for many commercial and multi‑residential applications where EN54‑3 compliant sound levels are required.
- Tones:Multiple selectable tones (commonly 32), and synchronisation options for coordinated alarm signalling across multiple devices.
- Batteries:Uses CR123A cells (pre‑installed) for ease of commissioning and maintenance.
- Battery life:Typical service life up to ~5 years depending on Jeweller reporting intervals and tone/settings; tool‑free replacement reduces downtime.
- Power supply:Battery only (no external PSU) — simplifies retrofit and reduces installation cost where wiring is impractical.
- Dimensions:Approx. 124 × 124 × 48–54 mm (confirm exact dimensions on SKU datasheet).
- Mount:SmartBracket for fast wall or ceiling installation, tamper detection and optional locking for vandal‑resistance.
- Operating conditions:Typically rated for −10 °C to +50 °C and up to ~80% RH (no condensation) — verify exact environmental ratings on the SKU datasheet.
- Certifications:EN54 family (EN54‑3 applicable) ensuring the device meets European fire alarm standards for audio devices.
- Regional radios:Verify that you receive the correct regional radio variant (European 868 MHz vs other bands) before sale and installation to ensure regulatory compliance.
- Warranty:This SKU lists no warranty (warranty = 0) in the supplied data; confirm the manufacturers warranty terms at point of purchase.
Benefits in real‑world terms
- Rapid deployment: Wireless addressability eliminates the need for running new cabling in many installations, reducing labour and disruption.
- EN54 compliance: Suitable for installations that must meet EN54 standards for audio alerting, simplifying approval by authorities having jurisdiction.
- Installer friendly: Tool‑free battery replacement and SmartBracket mounting speed up maintenance and commissioning.
- Scalability: Two‑way supervision and addressability make it straightforward to expand monitored sites while maintaining device status visibility.
Use cases and scenarios where the Ajax EN54 FireProtect sounder excels
- Retrofit and refurbishment:Historic buildings, listed properties or operational commercial spaces where running new cable is costly or disruptive benefit from a wireless EN54 solution. The sounder can be positioned to meet coverage requirements without invasive work.
- Small and medium commercial premises:Retail units, offices, small manufacturing units and multi‑tenanted buildings can use the sounder as part of a distributed EN54 system for clear local audible warning and central supervised reporting.
- Residential apartment blocks:Where EN54‑certified devices are required for certain communal areas, the sounder provides straightforward installation while retaining addressability for pinpointing alarm locations.
- Temporary sites:Short‑term workplaces, events or construction sites that require a certified alarm voice/tones and supervised reporting without permanent wiring can use battery‑powered wireless devices.
- Supplementary notification:As part of a hybrid system, wireless sounders can be used to provide local additional notification in areas not adequately served by a wired system or for redundancy.
Comparison with similar products and approaches
- Wired devices require permanent cabling and often central power, which adds material and labour costs; they can be preferable for very large or permanently wired systems. The Ajax wireless sounder removes cabling needs, saving time and cost at the expense of battery maintenance planning.
- Wired sounders do not depend on radio range and are unaffected by RF environments; wireless devices require planning for range, interference and repeater placement where needed.
- Competing wireless EN54 sounders from established fire manufacturers may use different proprietary RF protocols or mesh networking approaches. Ajaxs use of Jeweller focuses on long open‑space range, low latency supervision and encrypted two‑way signalling; selection should be based on site size, existing systems and integration needs.
- Some alternative wireless solutions include integrated detectors with built‑in sounders; the dedicated Ajax sounder provides a specialised high‑output notification device and flexible placement.
Customer feedback and installer perspectives
Actual public reviews for SKU 118604.278.RD1 may vary; below are representative points commonly reported by installers and site managers using Ajax EN54 FireProtect sounders in EN54 systems:
- Ease of installation:Installers often highlight the SmartBracket and tool‑free battery replacement as time savers, particularly in retrofit scenarios where access is limited.
- Reliable supervision:Two‑way Jeweller communication gives confidence that devices remain connected and monitored, reducing the number of site visits to check device health.
- Sound output and tones:The range of selectable tones and the high maximum sound level are appreciated for achieving compliant coverage and tailoring alerts to site needs.
- Battery life:When configured with conservative reporting intervals, many installers report multi‑year battery life that lowers lifetime maintenance costs compared with other battery devices.
Note: These are generalized installer observations and not verbatim customer reviews tied to this exact SKU. Always request reference installations and seek feedback from peers working in similar building types when planning larger deployments.
Conclusion: Why choose the Ajax EN54 FireProtect Wireless Sounder?
The Ajax EN54 FireProtect Wireless Sounder (118604.278.RD1) is a focused solution for projects that need EN54‑compliant audible notification combined with the flexibility of wireless deployment. Its combination of a certified audio output (up to ~100 dB), Jeweller two‑way radio supervision, long battery life on CR123A cells, and installer‑friendly SmartBracket mounting makes it particularly well suited to retrofit projects, small to medium commercial sites, and situations where running new cabling is impractical.
Before specifying, confirm the regional radio variant (for example, 868 MHz in EU), verify exact dimensions and environmental ratings from the SKU datasheet, and check the manufacturers warranty terms. At a suggested retail price of 149.95 (cost price shown as 85.80 in supplied data), the sounder delivers certified performance and installation advantages that can reduce total project cost and shorten timelines when compared to wired alternatives.
In short, for installers and clients looking for a certified, addressable, and easy‑to‑deploy audible notification device that integrates into Ajax EN54 systems, the EN54 FireProtect Wireless Sounder is a practical, compliance‑aware choice. Careful site planning for radio coverage and routine battery maintenance will ensure the system continues to meet performance expectations over its operational life.
