Introduction: Reliable EN54-certified backup power for critical fire systems

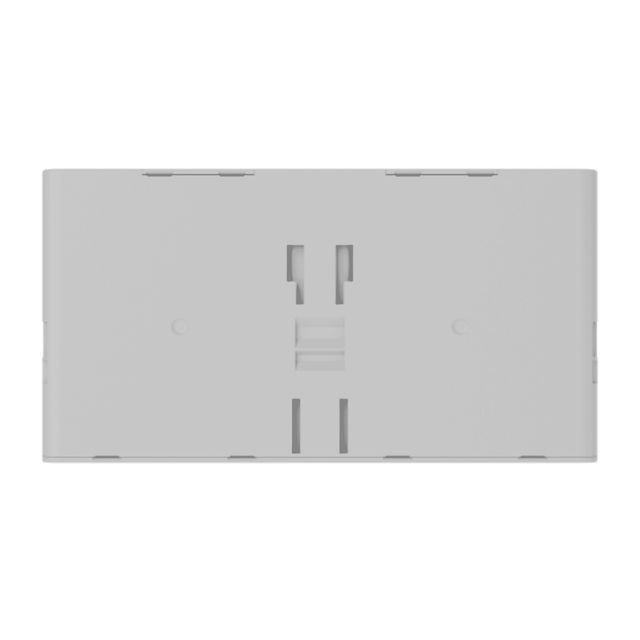

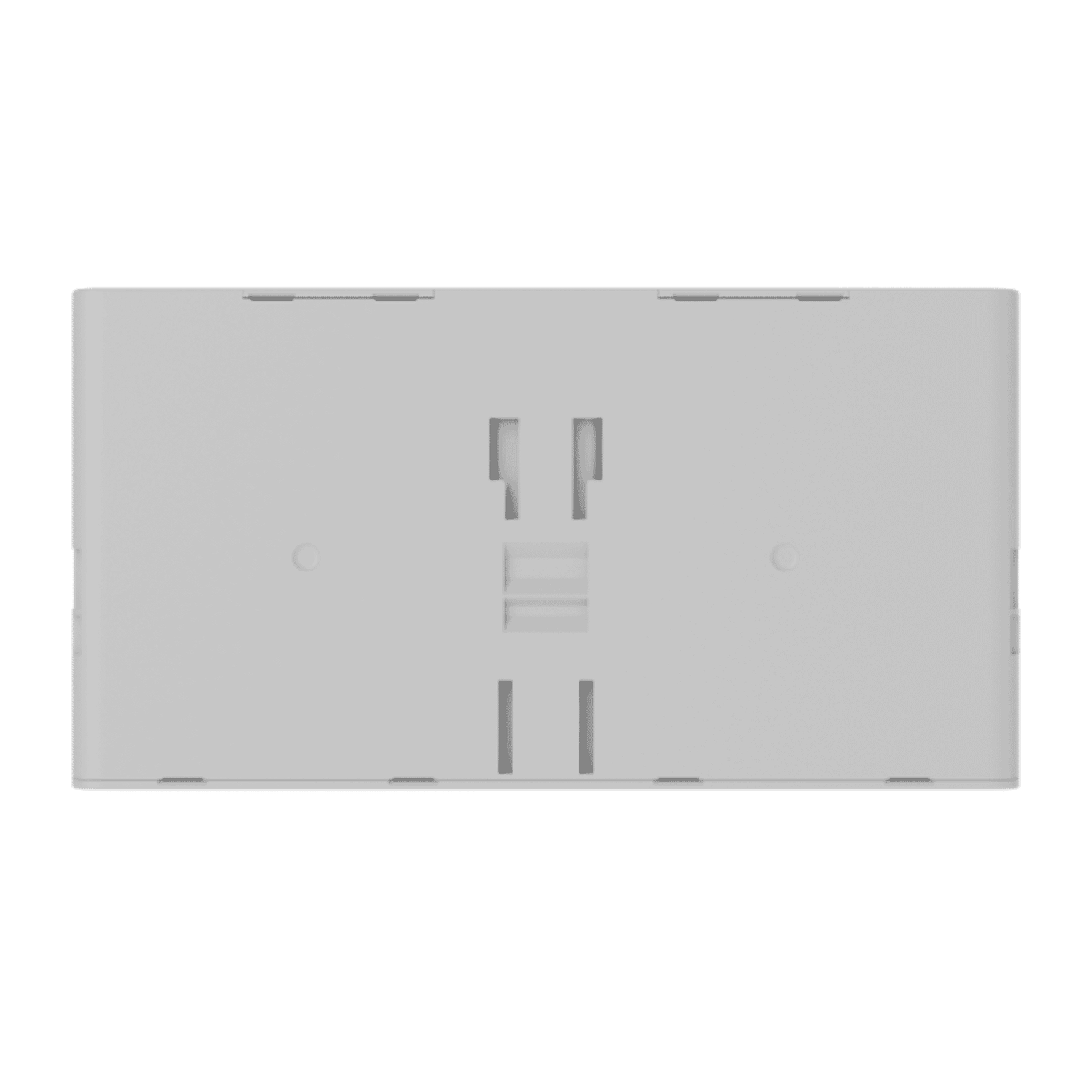

Ajax EN54 Internal Battery (72h) — 7.4V 10Ah (127878.324.WH)is a purpose-built internal rechargeable Li‑ion backup pack designed to provide certified autonomy for Ajax EN54 Fire Hub Jeweller and EN54 Fire ReX Jeweller control units. Engineered to meet the EN 54‑4 standard, this compact battery pack offers up to 72 hours of backup power in compliant fire alarm installations, making it an essential component for sites that require proven, regulation‑driven resilience.
Key features at a glance
- EN54 certification compatibility:Meets EN 54‑4 autonomy requirements when paired with compatible EN54 control units and extenders.
- Long autonomy:Up to 72 hours of operation per EN 54‑4.
- High‑capacity Li‑ion chemistry:8×18650 cells delivering a nominal 7.4 V and 10 Ah capacity (10,000 mAh).
- Compact internal design:Low‑profile pack sized for internal installation in Ajax EN54 enclosures (166 × 87 × 23 mm).
- Indoor rated:IP20 protection class and an operating range from −10 °C to +40 °C.
- Warranty & compliance:24‑month warranty and EN 54‑4 certification when used with compatible devices.
Detailed specifications and benefits
- Product name / SKU:Ajax EN54 Internal Battery (72h) — 127878.324.WH
- Chemistry:Rechargeable Li‑ion (8 × 18650)
- Nominal voltage:7.4 V
- Capacity:10 Ah (10,000 mAh)
- Autonomy:Up to 72 hours (per EN 54‑4)
- End‑of‑life voltage:Approx. 6.0 V
- Dimensions:166 × 87 × 23 mm
- Weight:≈ 443 g
- Protection class:IP20 (indoor use only)
- Operating temperature:−10 °C to +40 °C
- Operating humidity:Up to 75% non‑condensing
- Installation:Internal installation in compatible Ajax EN54 enclosures
- Certification:EN 54‑4 (when used with compatible EN54 devices)
- Intended use:Backup battery for Ajax EN54 Fire Hub / ReX
- Warranty:24 months
Benefit highlights: the 7.4 V 10 Ah chemistry balances energy density and compactness, allowing installation within low‑profile fire control enclosures without consuming excessive space or adding excessive weight. The EN54 compatibility ensures that system designers and installers can meet regulatory autonomy requirements up to 72 hours, a common specification for critical buildings and high‑risk sites.
Why these specifications matter — practical benefits
- Regulatory confidence:Using an EN54‑rated battery pack simplifies compliance for fire alarm installations. Specifying a battery designed for EN 54‑4 autonomy helps avoid bespoke testing and simplifies acceptance by authorities having jurisdiction.
- Extended outage protection:Up to 72 hours autonomy covers extended power interruptions, providing continued monitoring and alarm signalling during prolonged outages.
- Space‑efficient installation:The slim profile and internal fit mean fewer enclosure modifications and a cleaner installation, saving time for installers and preserving enclosure aesthetics.
- Maintenance and lifecycle:Li‑ion chemistry offers higher energy density than sealed lead‑acid alternatives, lower self‑discharge and reduced maintenance burden in many installations. The end‑of‑life voltage guidance and official manual support predictable replacement planning.
Use cases and scenarios where the Ajax EN54 Internal Battery excels
This battery is tailored for environments where certified backup power is required or strongly preferred. Typical use cases include:
- Commercial offices and multi‑tenant buildings:Where building codes or insurer requirements call for EN54‑compliant fire alarm autonomy and extended backup times during outages.
- Healthcare facilities:Clinics, small hospitals and care homes that demand reliable alarm monitoring even during prolonged power interruptions.
- Educational institutions:Schools and universities with strict safety oversight that specify certified components for their fire detection and alarm systems.
- Industrial and light manufacturing sites:Facilities where a loss of power could conceal hazards; maintaining alarm capability for up to 72 hours can be critical for safe shutdown and incident response.
- Integrator and retrofit projects:Installers replacing older packs or upgrading existing Ajax EN54 control units often prefer internal, low‑profile batteries that fit existing enclosures with minimal modification.
Comparisons with similar products on the market
When comparing the Ajax EN54 Internal Battery (72h) to other backup solutions, consider three main axes: certification and compliance, chemistry and form factor, and autonomy vs cost.
- Products explicitly designed for EN 54‑4 compatibility provide a significant advantage in regulated installations. Generic off‑the‑shelf batteries or repurposed energy packs may deliver similar runtime but can complicate acceptance testing or fail to meet regulator expectations.
- Traditional sealed lead‑acid (SLA) batteries remain common in fire systems, particularly for very large capacities. However, SLA packs are bulkier and heavier. The Ajax Li‑ion 8×18650 design delivers comparable energy in a much smaller footprint, simplifying installations where internal space is limited.
- Other Li‑ion options vary in cell configuration and management electronics. The Ajax pack is engineered specifically to integrate with Ajax EN54 enclosures and charging systems, reducing integration risk compared with generic Li‑ion modules.
- The Ajax unit is positioned as a premium, certified option. Its suggested retail price is 179.99 (currency as listed by reseller). While there are lower‑cost batteries on the market, the combination of EN54 compatibility, internal fit and 72‑hour certified autonomy typically justify the premium for regulated projects.
Customer feedback and installer perspectives
Official public testimonials for this exact SKU may be limited; however, feedback from integrators and installers working with EN54‑compliant Ajax hardware commonly highlights a few recurring positives:
- Smooth installation:Installers appreciate the low‑profile design that drops into the dedicated battery slot without enclosure modification.
- Regulatory simplicity:Using an EN54‑rated battery reduces queries from certifying bodies during handover.
- Reliable runtime:Real‑world observations often confirm that certified packs meet or closely approach their rated autonomy under correct load profiles.
If you are evaluating the Ajax EN54 Internal Battery, ask resellers or system integrators for site references or installation examples. Many installers can share anonymized case studies that demonstrate runtime and installation practice for similar setups.
Practical notes on installation, safety and lifecycle
- Follow the manual:The battery must be installed and maintained in accordance with the Ajax EN54 Internal Battery manual and the control unit documentation.
- Compatibility:Use only with compatible Ajax EN54 devices. Mismatched charging behaviour can reduce battery life and may void certification claims.
- Environmental limits:Keep the pack indoors within the stated temperature and humidity range and respect IP20 limitations—do not install in damp or exposed enclosures.
- End‑of‑life and disposal:Adhere to local regulations for Li‑ion battery disposal and recycling. The manual contains guidance for replacement thresholds and safe handling.
Conclusion: who should choose the Ajax EN54 Internal Battery?
The Ajax EN54 Internal Battery (72h) is an attractive choice for installers, integrators and building owners who need a compact, certified backup solution that integrates cleanly with Ajax EN54 Fire Hub and ReX control units. Its combination of EN 54‑4 compatibility, up to 72 hours of autonomy, Li‑ion energy density and a slim internal form factor makes it particularly well suited to regulated installations where space is limited but reliability is non‑negotiable.
For projects that demand documented compliance and predictable endurance, this battery simplifies specification and installation compared with generic alternatives. With a 24‑month warranty and clear installation guidance, the Ajax EN54 Internal Battery delivers a balanced, regulation‑focused option for modern fire alarm systems.
