Product Overview & Key Benefits

The 4 Channel USB Mixer is an essential tool for any DJ or audio professional seeking to enhance their mixing experience. Renowned for its user-friendly design, the Citronic CDM10:4 offers a plethora of features that make it perfect for live performances and studio work alike. From its versatile connectivity options, including USB inputs and an auxiliary input for MP3 players, to its balanced microphone channels, this mixer caters to both beginners and seasoned professionals. With the ability to handle multiple audio sources seamlessly, it is ideal for DJs, musicians, and sound engineers looking for reliability and functionality in a compact unit.

Technical Specifications & Product Details

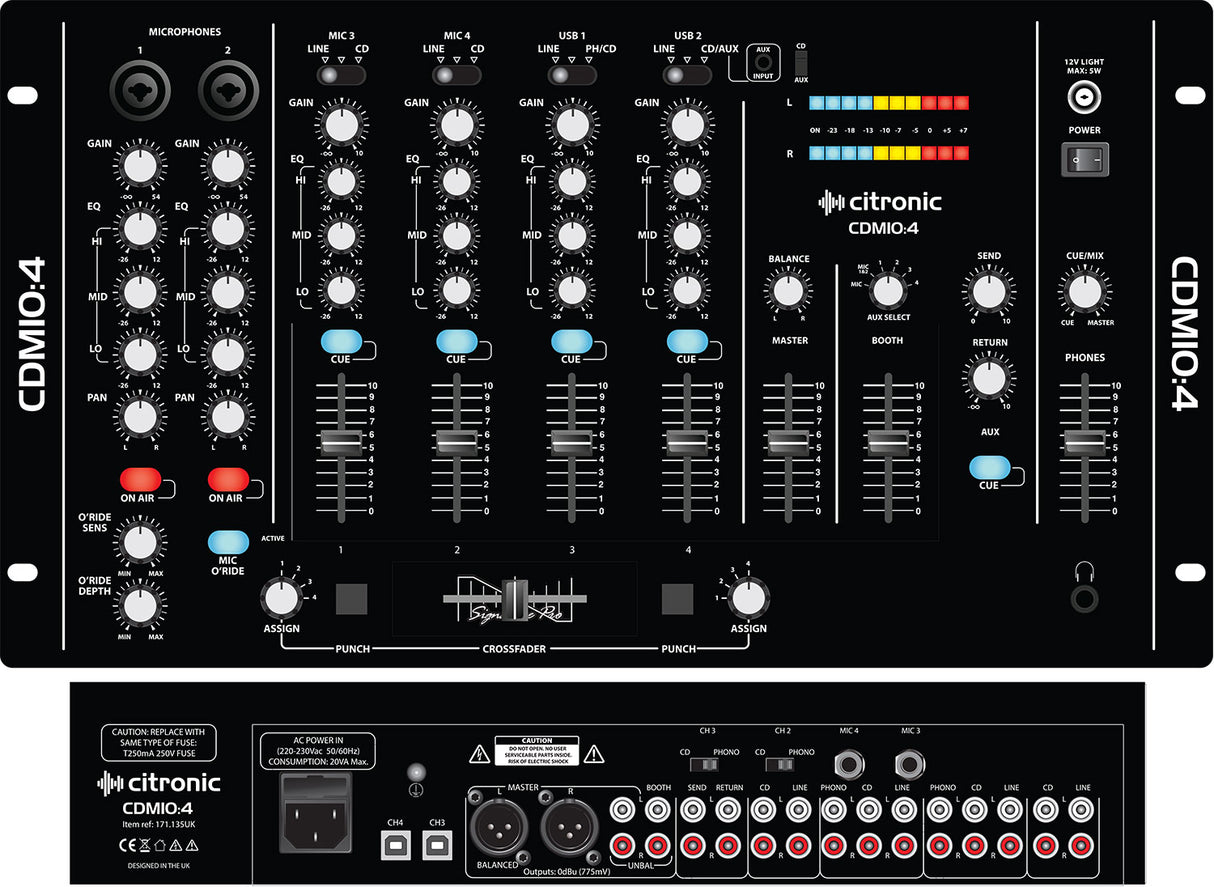

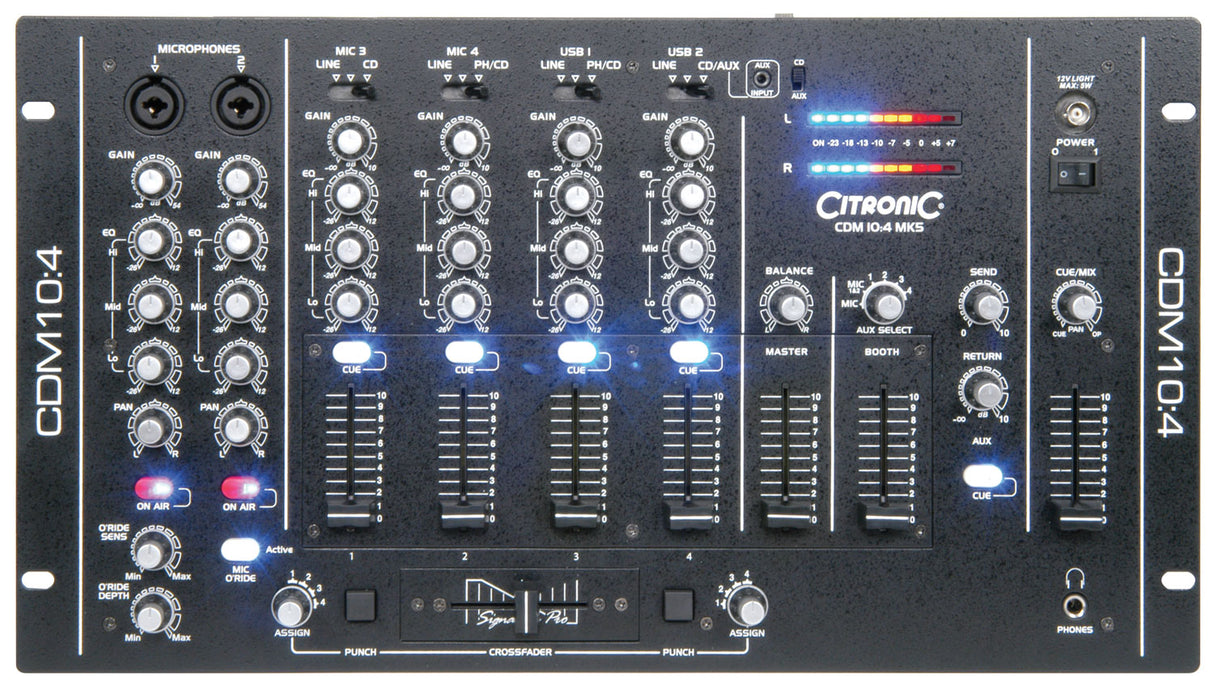

• Model:Citronic CDM10:4
• Weight:5kg
• Dimensions:483 x 266 x 80mm (6U)
• Cutout Size:440 x 250mm
• Fuse Rating:T250mA (240V) / T500mA (110V)
• Power Supply:220-230Vac, 50/60Hz (IEC)
• Input (Mic):1.5mV, 2k Ohms
• Input (Line):195mV, 50k Ohms
• Input (Phono):4mV, 47k Ohms
• Equaliser:Bass: +12dB, -26dB @ 100HzTreble: +12dB, -26dB @ 9kHzMidrange: +12dB, -26dB @ 800Hz
• Headphone Output:112mV @ 32 Ohms
• Signal to Noise Ratio:Mic: 68dBLine: >87dBPhono: 73dB

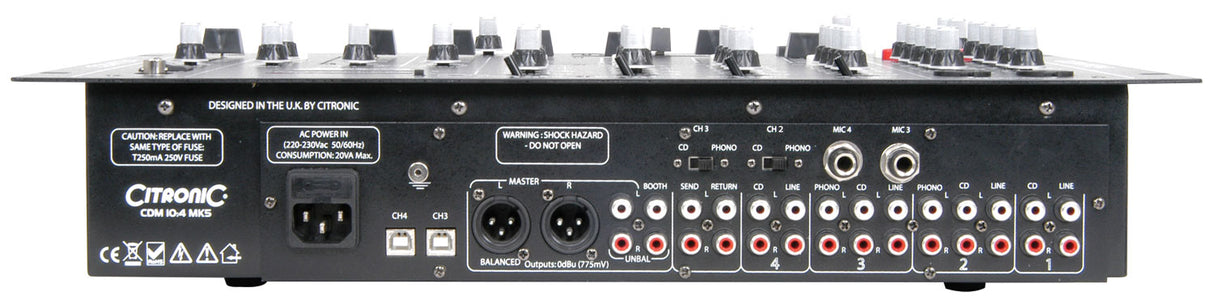

• Additional Features:4 channel, 17 inputs2 dedicated balanced mic channels with 3-band EQMic override facility for DJ mics8 CD/line inputs (2 switchable to phono)Top panel 3.5mm aux input for MP3 player2 USB input/outputs for channels 3 and 4Fully assignable VCA crossfaderPunch buttons & Hotswap channel fadersIndividual gain control per channelFully assignable send and return10-bar LED monitor display12V BNC light socket (light not supplied, 173.501 recommended)Booth outputBalanced XLR and unbalanced RCA outputsRotatable back panel for convenient installation19" (6U) rack mountable

Ideal Uses & Applications

Whether you are setting up for a large event or mixing tracks for a studio session, the 4 Channel USB Mixer is suited to a variety of applications. Its robust design and extensive input options make it perfect for:

• Live Performances:Mix multiple audio sources for bands, DJs, and live events.
• Studio Recording:Interface with recording equipment to achieve high-quality sound.
• Home Audio:Connect various devices for personal use or casual gatherings.
• Broadcasting:Utilise for radio shows, podcasts, or streaming with professional-quality audio.

Energy Efficiency & Cost Savings

One of the key advantages of the 4 Channel USB Mixer is its efficiency in managing power consumption. With a power supply of 220-230V, this mixer is designed to deliver exceptional performance without excessive energy use. By upgrading to this mixer, users can expect enhanced audio output while potentially lowering their electricity expenses, contributing to a more sustainable audio environment. Additionally, the superior signal-to-noise ratio ensures cleaner, clearer sound, reducing the need for constant adjustments and minimising operational costs.
