Product Overview & Key Benefits

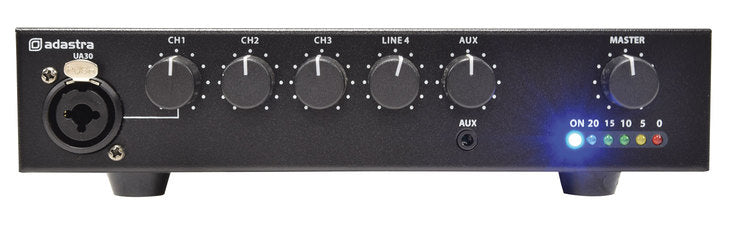

The UA Series Compact 100V Mixer-Amplifiers are designed for superior audio performance in small to medium public address installations. This versatile unit combines a powerful 30W output with a user-friendly 5-input mixer, making it ideal for various settings including commercial spaces, hospitality environments, and home audio systems. With features such as switchable mic/line inputs and a compact 1U design, it is perfect for users seeking an efficient and effective solution to manage audio inputs without compromising on sound quality.

Technical Specifications & Product Details

• Output Power:30W
• Signal to Noise Ratio (SNR):80dB (line), 75dB (mic)
• Total Harmonic Distortion (THD):<0.4% @ 1kHz
• Mute Function:24V relay contacts
• Inputs:Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
• Weight:2.35kg
• Dimensions:249 x 210 x 44mm (W x D x H)
• Line Output:2 x RCA (mono)
• Power Supply:170-264Vac, 50Hz (IEC)
• Phantom Power:+20V CH1 (XLR or rear terminals)
• Speaker Output:Euroblock terminals: 100V / 8 Ohms / Com
• Input Impedance:1k Ohms (mic/line)
• Input Sensitivity:-10dB (line), -45dB (mic)
• Frequency Response:100Hz - 18kHz
• Amplifier Construction:Class D + transformer output
• Rack-Mounting Hardware:Included for up to 2 units

Ideal Uses & Applications

With its compact design and powerful features, the UA Series Compact 100V Mixer-Amplifier is well-suited for various applications. It is excellent for:

• Domestic DIY projects where high-quality sound is required.
• Commercial buildings needing a reliable PA system for announcements, events, or background music.
• Hospitality settings such as hotels and restaurants looking to enhance their ambiance with controlled audio.
• Office environments where conference calls and meetings require clarity in sound.

Energy Efficiency & Cost Savings

This mixer-amplifier not only promises excellent sound quality but also embodies energy efficiency, contributing to cost savings in your electricity bills. The Class D amplifier technology used in this device ensures that energy consumption is significantly lower compared to traditional amplifiers, making it an eco-friendly choice. Expect to save substantially while benefiting from its powerful audio output, potentially lowering your energy costs by up to 50 percent over time.
